Display alignment
If y
ou mount the safety laser scanner with the optics cover downward, you can rotate
the orientation of the display through 180°. The preview shows the selected orientation
of the display.
b
Choose the Normal or Upside down option to specify the display orientation.
✓
The preview shows the display’s orientation.
7.9 Monitoring plane
Overview

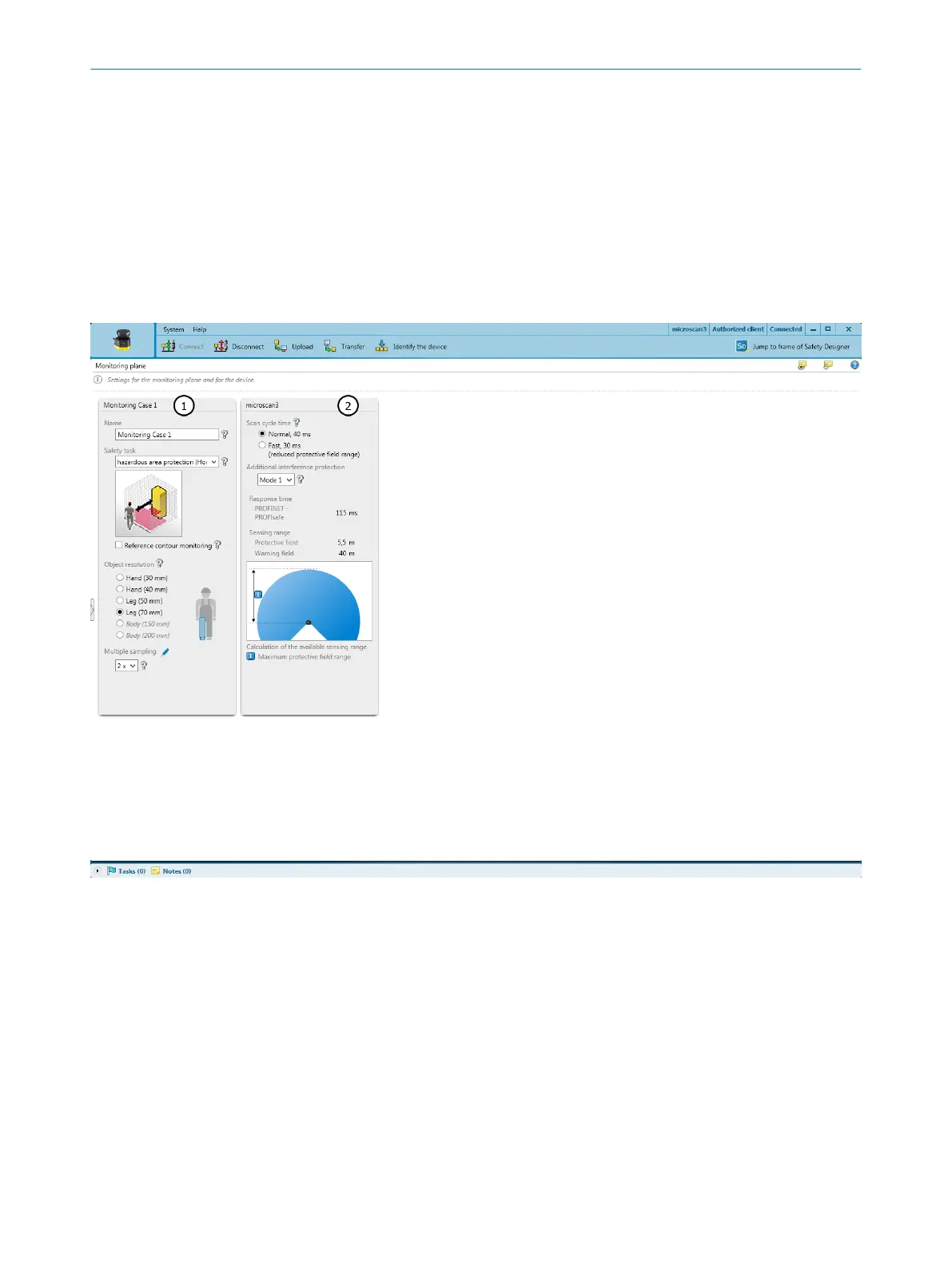

Figure 66: Monitoring plane
1
Parameters for the monitoring plane
2
Parameters for the safety laser scanner
The scan plane of a safety laser scanner forms its monitoring plane.
T
his dialog is used to define the following parameters:
•
Parameters for the monitoring plane
•
Parameters for the safety laser scanner
7.9.1 Parameters for the monitoring plane
Overview
C
onfigure a name, the protection task, object resolution, and multiple sampling setting
for the monitoring plane.
CONFIGURATION 7
8021219/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET
101
Subject to change without notice

SICK microScan3 Specifications

General

Scanning angle	275°
Power supply	24 V DC
Supply voltage	24 V DC ± 20%
Enclosure rating	IP65
Resolution	70 mm
Protective field range	5.5 m
Number of fields	128
Interface	Ethernet
Safety integrity level	SIL3
Performance level	PL e
Ambient temperature	+50°C
Scanning range	5.5 m
