7.11.8 Enable propose field
Overview

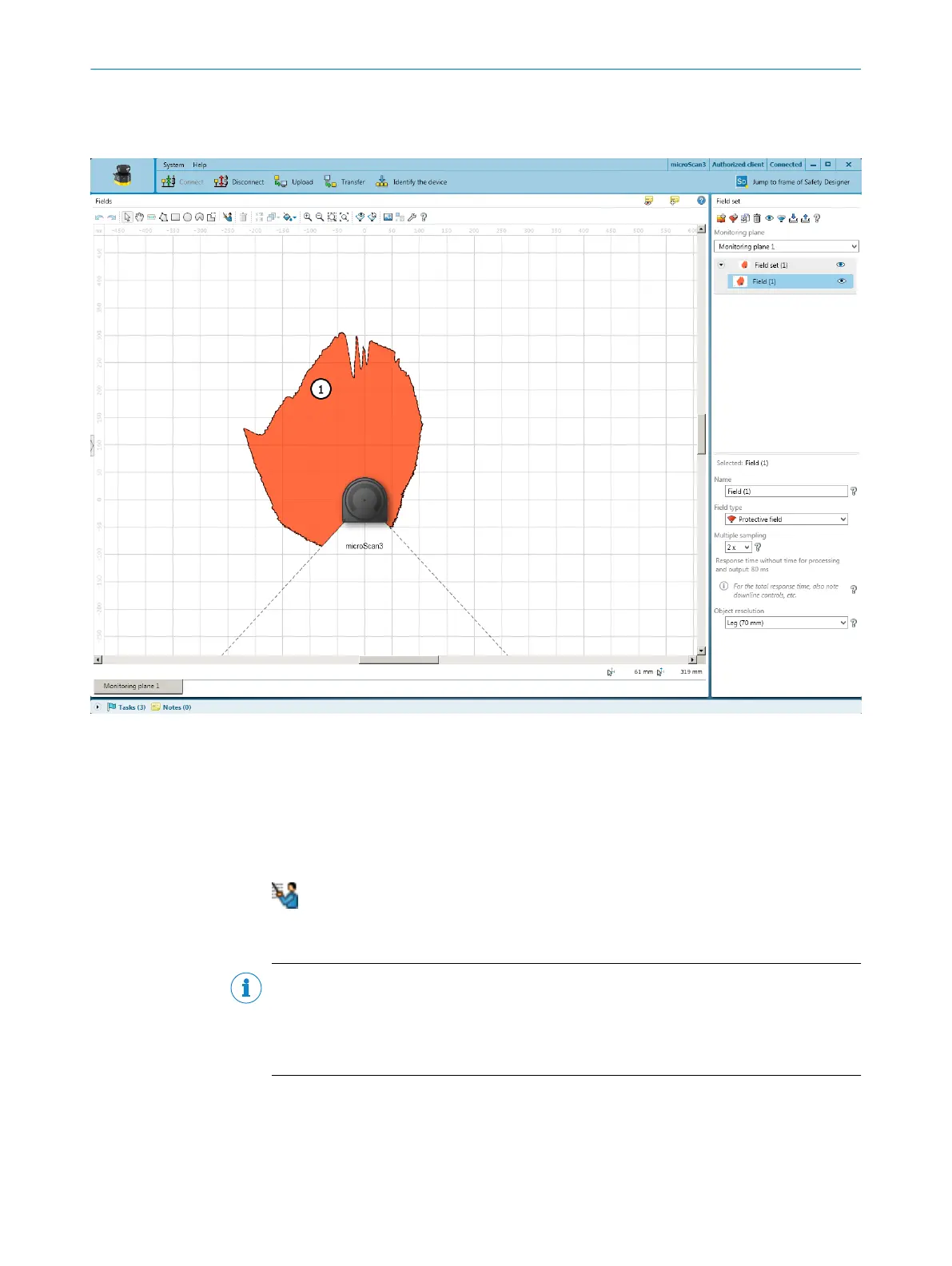

Figure 73: Enable propose field
1
Proposal for a protective field
You can have a protective field or warning field suggested by Safety Designer.
F
or this purpose, the safety laser scanner scans the visible surrounding contour several
times. Based on the data obtained, the Safety Designer suggests the contour and size
of the field.
You can use the Su
ggest field tool to create a field.
Important information
NOTE
If y
ou propose a protective field, the proposal does not replace calculation of the
minimum distance. You must calculate the minimum distance and check whether the
size of the proposed protective field is sufficient. You must also take into account the
measurement tolerances of the safety laser scanner.
Existing field geometries
•
D
elete existing shapes: The field is redrawn according to the surrounding contour.
•
Refine existing shapes: The existing field is adapted to the surrounding contour.
7 C
ONFIGURATION
116
O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET 8021219/1ELL/2022-01-21 | SICK
Subject to change without notice
