SICK microScan3 User Manual

Fault type Brief description Cause Troubleshooting
W1 Warnings exceed toler‐
ance t
ime
The combination of multiple warn‐
ings has resulted in a fault. The
tolerance time of 1 s has been
exceeded as there are multiple
warnings.
b
Use S
afety Designer to check
what warnings exist.
11.4 Diagnostics using Safety Designer
The following diagnostics tools are available in the device window:
•
D
ata recorder
•
Event history
•
Message history
•
PROFINET Diagnosis
•
PROFINET Status
The following interfaces are suitable for diagnostics:
•
U
SB 2.0 mini-B (female connector)
21)
•
Ethernet
11.4.1 Data recorder
Overview

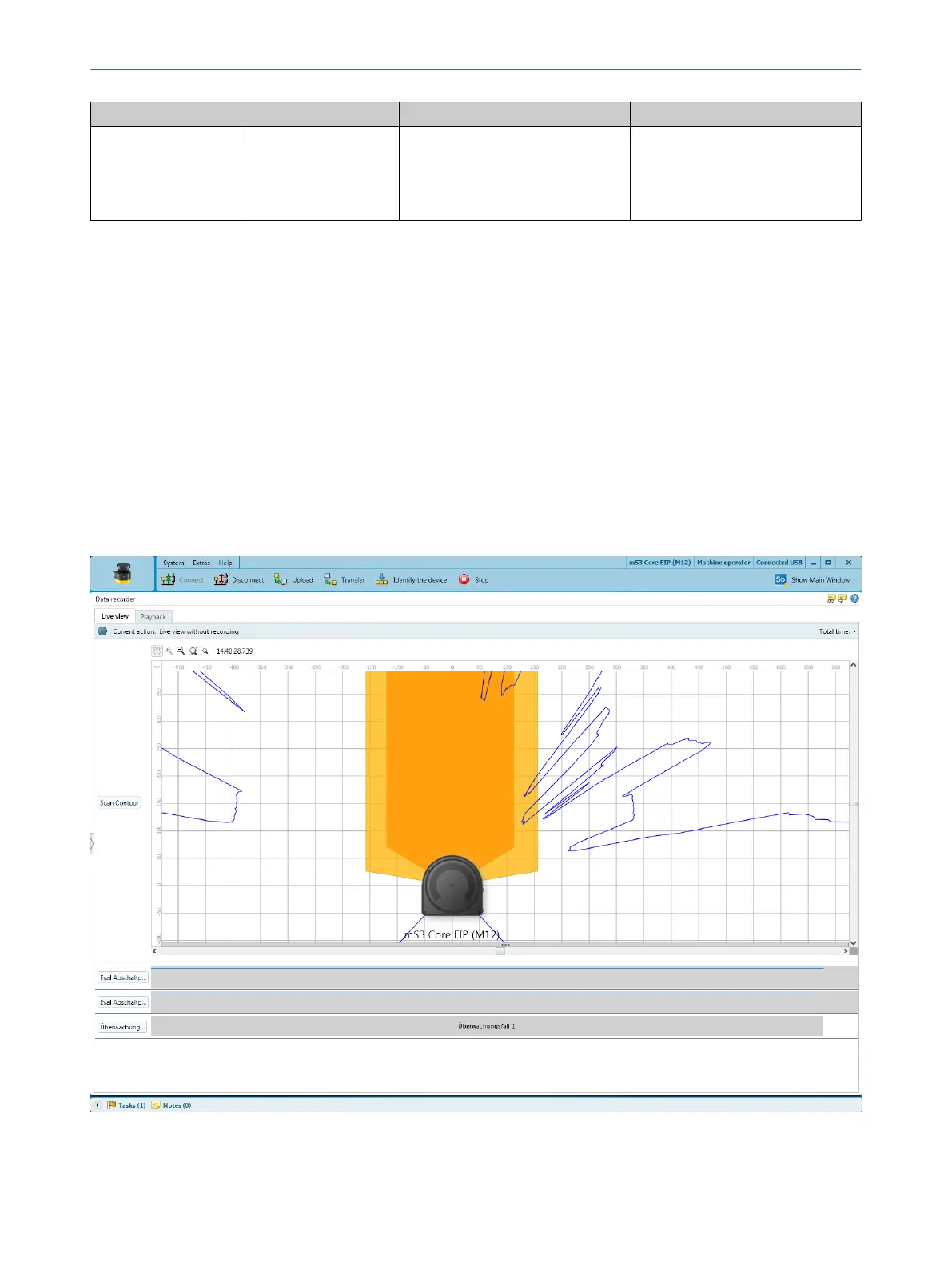

Figure 89: Data recorder
21)
T
he USB connection may only be used temporarily and only for configuration and diagnostics.
TROUBLESHOOTING 11
8021219/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET
153
Subject to change without notice

SICK microScan3 Specifications

General

Scanning angle	275°
Power supply	24 V DC
Supply voltage	24 V DC ± 20%
Enclosure rating	IP65
Resolution	70 mm
Protective field range	5.5 m
Number of fields	128
Interface	Ethernet
Safety integrity level	SIL3
Performance level	PL e
Ambient temperature	+50°C
Scanning range	5.5 m
