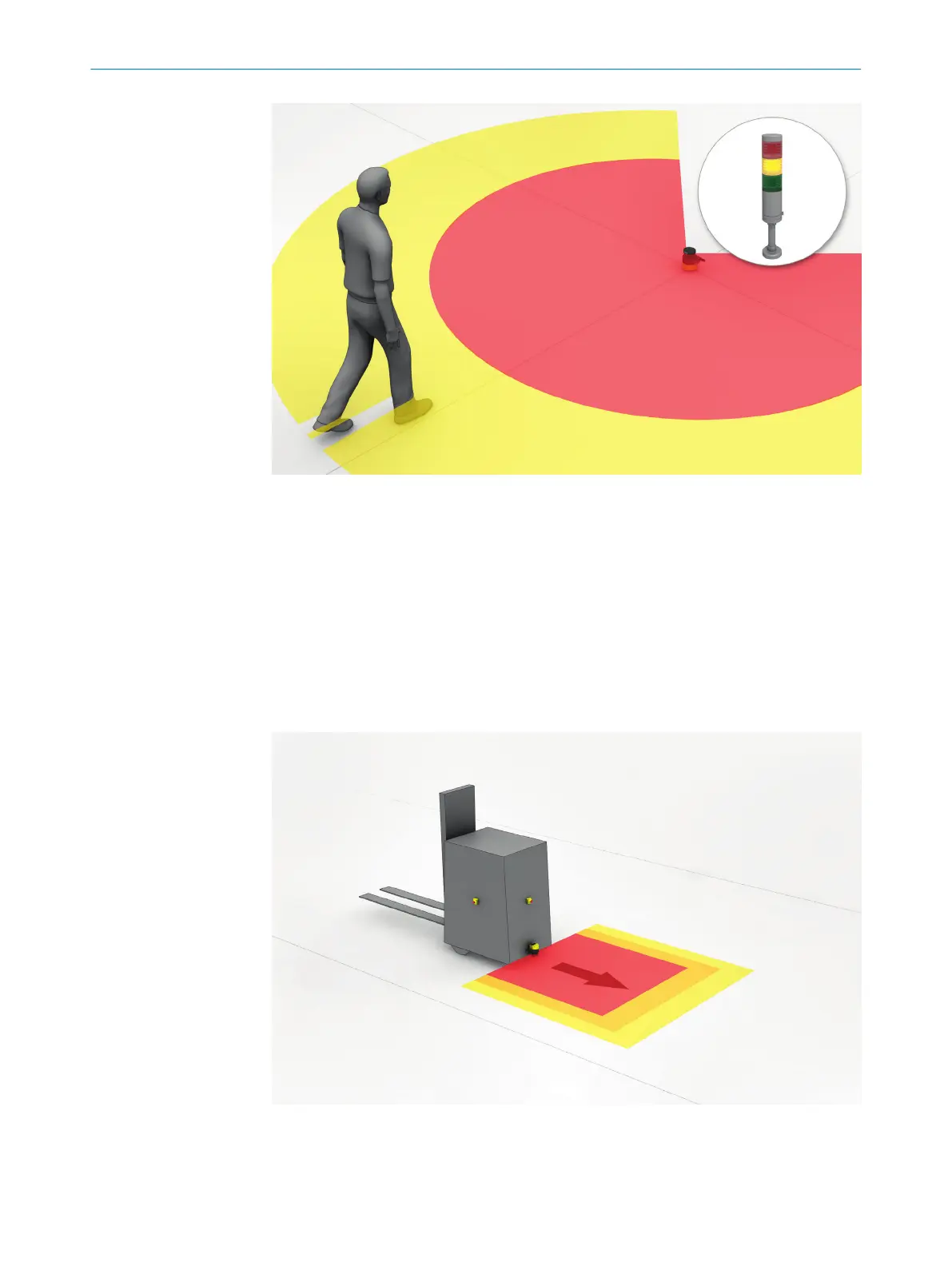

Figure 8: Warning field, shown in yellow or orange in this document
3.3.5 Field set
A field set consists of one or more fields. The fields in a field set are monitored
simult
aneously.
A field set can contain different field types, e.g., a protective field and a warning field.
A typical application is the use of a protective field with one or more warning fields: if a
vehicle approaches a person, a warning field triggers an optical or acoustic signal. If the
person does not react to this and the vehicle continues to approach, the safety laser
scanner detects an object in the protective field and switches the associated safety
outputs to the OFF state. The vehicle stops before it reaches the person.
Figure 9: Field set, consisting of one protective field (red) and 2 warning fields (orange and
y
ellow)
3 P
RODUCT DESCRIPTION
20
O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET 8021219/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Specifications

General

Scanning angle	275°
Power supply	24 V DC
Supply voltage	24 V DC ± 20%
Enclosure rating	IP65
Resolution	70 mm
Protective field range	5.5 m
Number of fields	128
Interface	Ethernet
Safety integrity level	SIL3
Performance level	PL e
Ambient temperature	+50°C
Scanning range	5.5 m
