SICK microScan3 User Manual

5 10 20 50 D [m]D [m]
R [%]
500
200
100
50
20
10
5
2
1
6
5
3
2
4
1

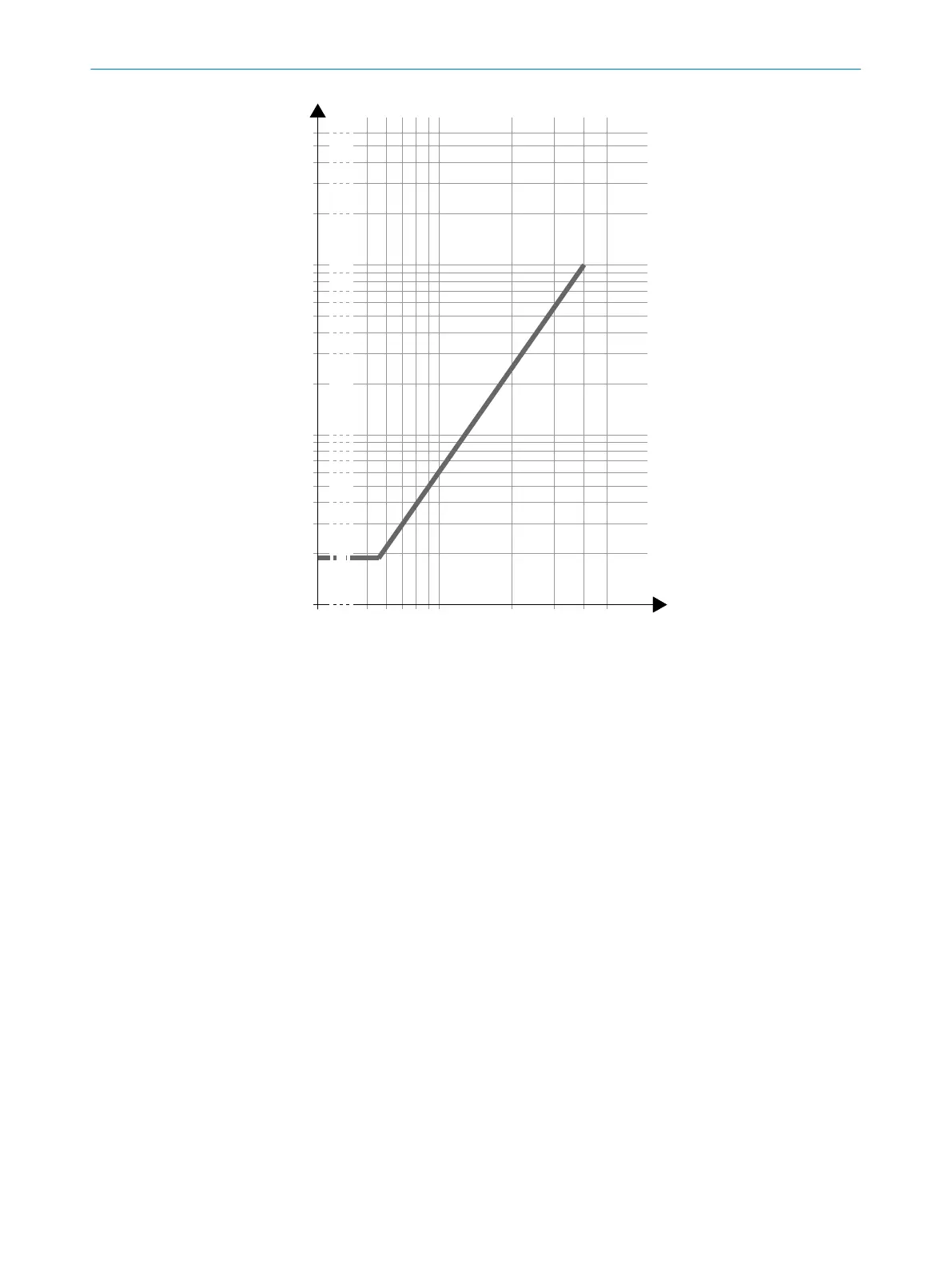

Figure 96: Scanning range and required remission for warning fields (devices with a max.
pr
otective field range of 4.0 m and devices with max. protective field range of 5.5 m)
R Required minimum remission in %
D Range in m
1
Black shoe leather
2
Matt black paint
3
Gray cardboard
4
Writing paper
5
White plaster
6
Reflectors > 2,000%, reflective tapes > 300%
13 T
ECHNICAL DATA
176
O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET 8021219/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Specifications

General

Scanning angle	275°
Power supply	24 V DC
Supply voltage	24 V DC ± 20%
Enclosure rating	IP65
Resolution	70 mm
Protective field range	5.5 m
Number of fields	128
Interface	Ethernet
Safety integrity level	SIL3
Performance level	PL e
Ambient temperature	+50°C
Scanning range	5.5 m
