Mounting with deflector plates


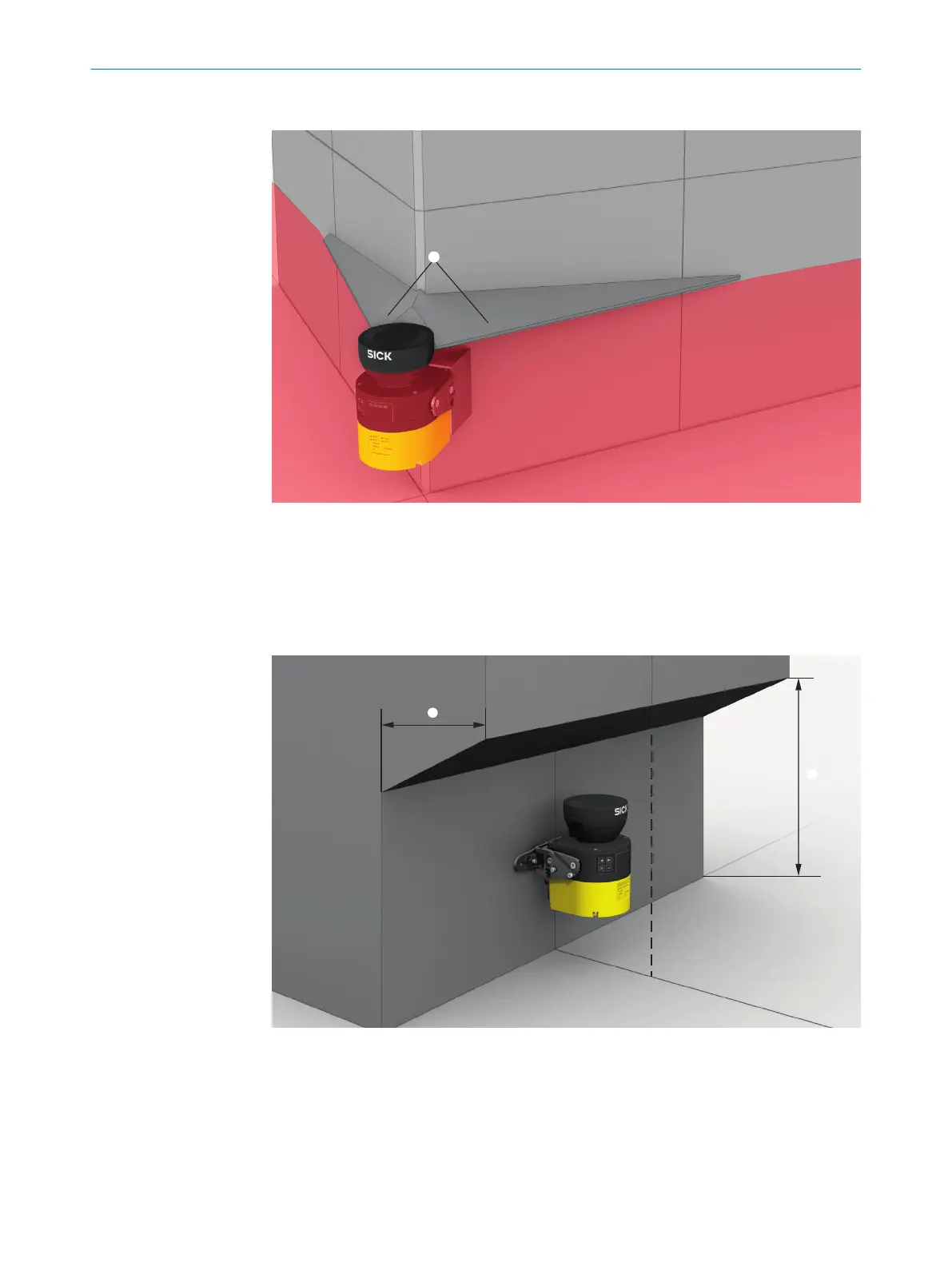

Figure 20: Mounting with deflector plates (example)
b A
ttach the deflector plates 1 so that it is not possible to step into unsecured
areas.
b
Attach the deflector plates so that they lie outside the scan plane.
Mounting in an undercut


Figure 21: Mounting in an undercut (example)
b
Mount t
he safety laser scanner in an undercut so that no-one can enter the
unsecured areas.
b Make the undercut at least deep enough 1, that it covers the unsecured areas
completely and no one can enter the unsecured areas.
b Prevent crawling beneath the undercut. Design the undercut to be so low 2, that
no one can crawl into it.
PROJECT PLANNING 4
8021219/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET
29
Subject to change without notice

SICK microScan3 Specifications

General

Scanning angle	275°
Power supply	24 V DC
Supply voltage	24 V DC ± 20%
Enclosure rating	IP65
Resolution	70 mm
Protective field range	5.5 m
Number of fields	128
Interface	Ethernet
Safety integrity level	SIL3
Performance level	PL e
Ambient temperature	+50°C
Scanning range	5.5 m
