Operating Instructions Chapter 4
TR4
8014467/YTD7/2016-03-30 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 69
Subject to change without notice
Mounting
en
= If the actuator moves laterally in relation to the surface of the sensor,
a minimum distance of 9 mm must be maintained. This distance will
prevent premature triggering due to the side approach areas.
= If necessary fit an additional protective stop for the moving part of
the guard.
= Pay attention to the maximum tightening torque for fastening the
sensor and actuator of 2.3 Nm.
Pay attention to the following safety notes:
• Sensor and actuator shall not be used as a mechanical stop.
• Prevent tampering such as adjusting, removing or bypassing the
device that will prevent correct function in any manner. The conse-
quences otherwise may be injuries or death.
• The availability of spare actuators may jeopardize the integrity of the
safety system (risk of tampering). This situation may result in injuries
or death, damage or financial losses. Organize suitable monitoring,
procedures and alternative protective measures to regulate the
usage and availability of these replacement actuators.

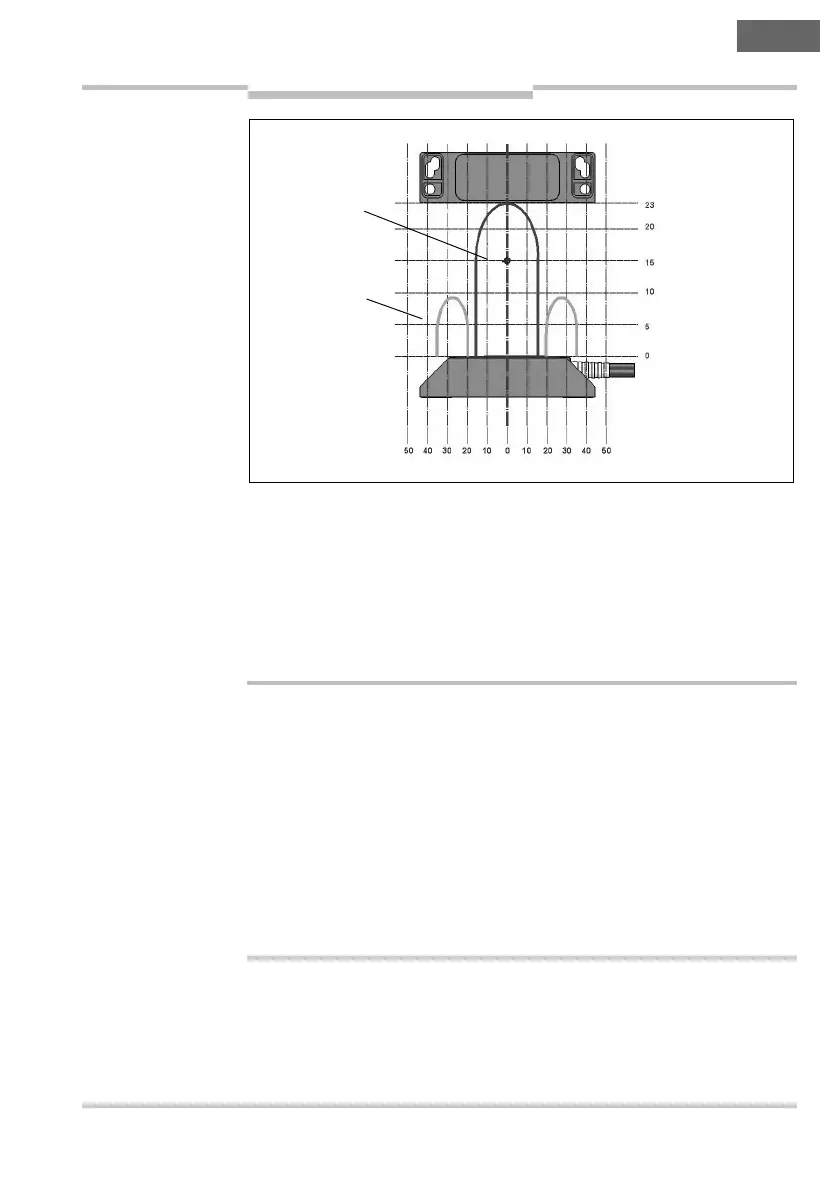

Fig. 3: Response range
on rotation of the
actuator by 90°

WARNING
Switch
-
on distance [mm]
Offset [mm]
Side approaches
Safe switch-
on
distance 15 mm

SICK TR4 Specifications

General

Number of Safe Outputs	2
Output Type	PNP
Protection Rating	IP67
Type	Safety Switch
Housing Material	Plastic
Supply Voltage	24V DC
Connection Type	Cable
Operating Voltage	24 V DC
Operating Temperature	-25 °C ... +70 °C
Actuator Type	Separate actuator (TR4 Direct, TR4 Standard, TR4 Extended)
