4.6 Installing Control Unit
Converter with the CU240B-2 and CU240E-2 Control Units
98 Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC

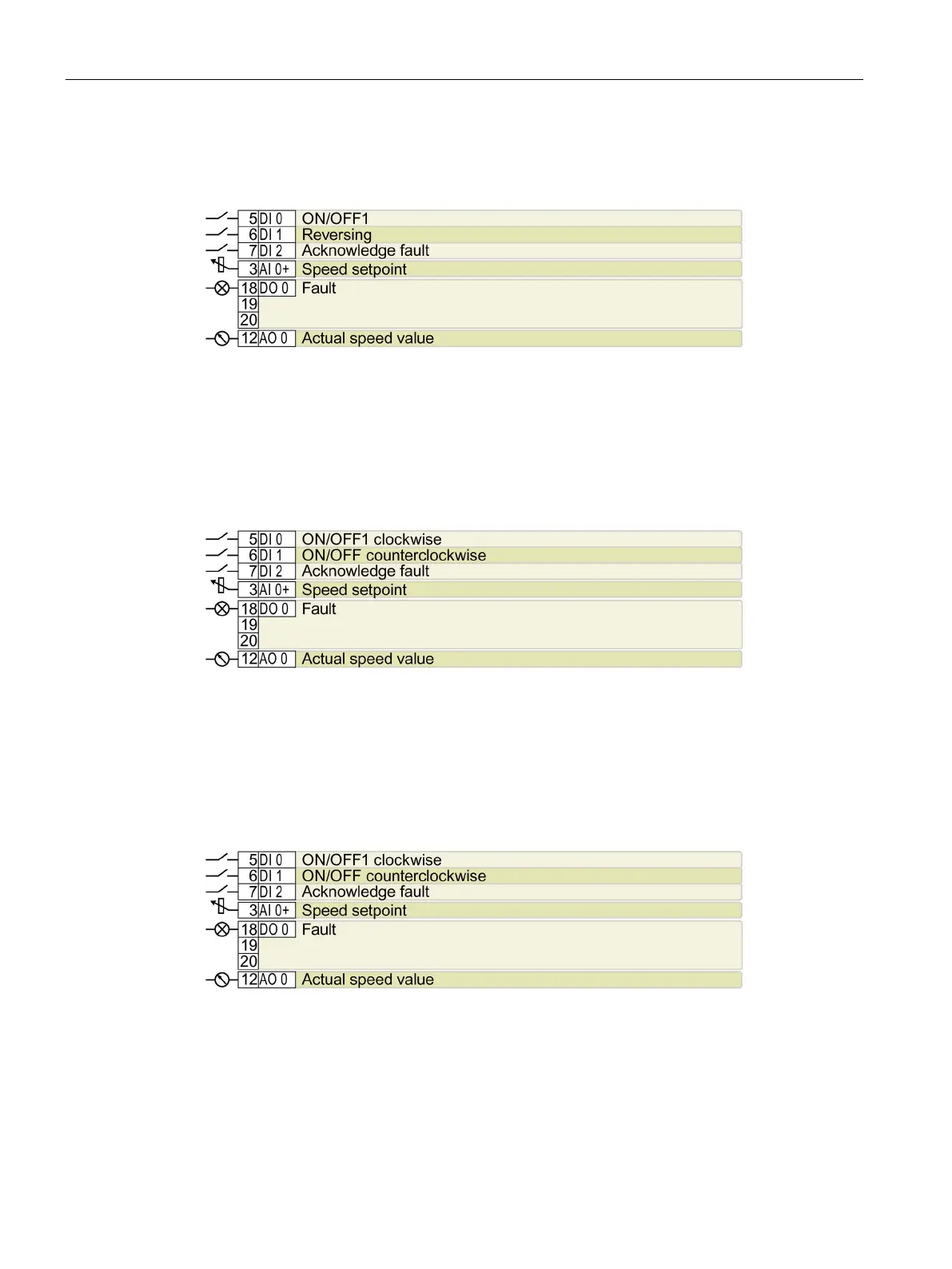

Default setting 12: "Standard I/O with analog setpoint"
Factory setting for inverters with USS interface
DO 0: p0730
AO 0: p0771[0]
DI 0: r0722.0, …, DI 2: r0722.2
AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in the BOP-2: Std ASP
Default setting 17: "2-wire (forw/backw1)"
DO 0: p0730
AO 0: p0771[0]
DI 0: r0722.2, …, DI 2: r0722.2
AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in the BOP-2: 2-wIrE 1
Default setting 18: "2-wire (forw/backw2)"
DO 0: p0730
AO 0: p0771[0]
DI 0: r0722.2, …, DI 2: r0722.2
AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in the BOP-2: 2-wIrE 2
