4.6 Installing Control Unit
Converter with the CU240B-2 and CU240E-2 Control Units
Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
99

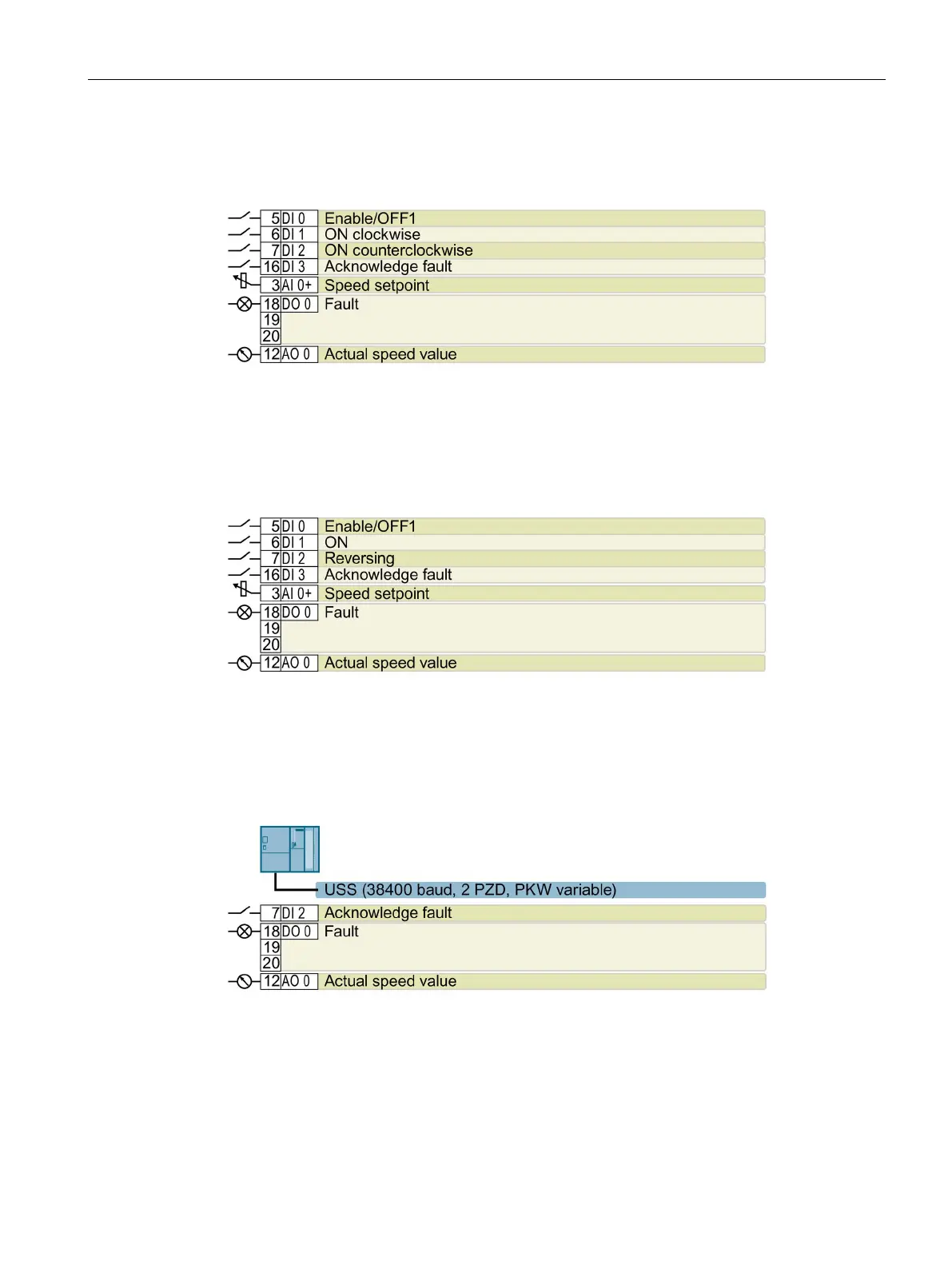

Default setting 19: "3-wire (enable/forw/backw)"
DO 0: p0730
AO 0: p0771[0]
DI 0: r0722.0, …, DI 3: r0722.3
AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in the BOP-2: 3-wIrE 1
Default setting 20: "3-wire (enable/on/reverse)"
DO 0: p0730
AO 0: p0771[0]
DI 0: r0722.0, …, DI 3: r0722.3
AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]
Designation in the BOP-2: 3-wIrE 2
Default setting 21: "USS fieldbus"
DO 0: p0730
AO 0: p0771[0]
DI 2: r0722.2
Speed setpoint (main setpoint): p1070[0] = 2050[1]
Designation in the BOP-2: FB USS
