Introduction
2.2 Principle of operation of S7-1500 Motion Control
S7-1500 Motion Control V13 Update 3
16 Function Manual, 07/2014, A5E03879256-AC
Principle of operation of S7-1500 Motion Control
Overview
You create a project, configure technology objects, and load the configuration into the CPU
using the TIA Portal. The Motion Control functionality is processed in the CPU.
You control the technology objects with the Motion Control instructions in your user program.
The TIA Portal provides additional functions for commissioning, optimization (Page 199) and
diagnostics (Page 214).

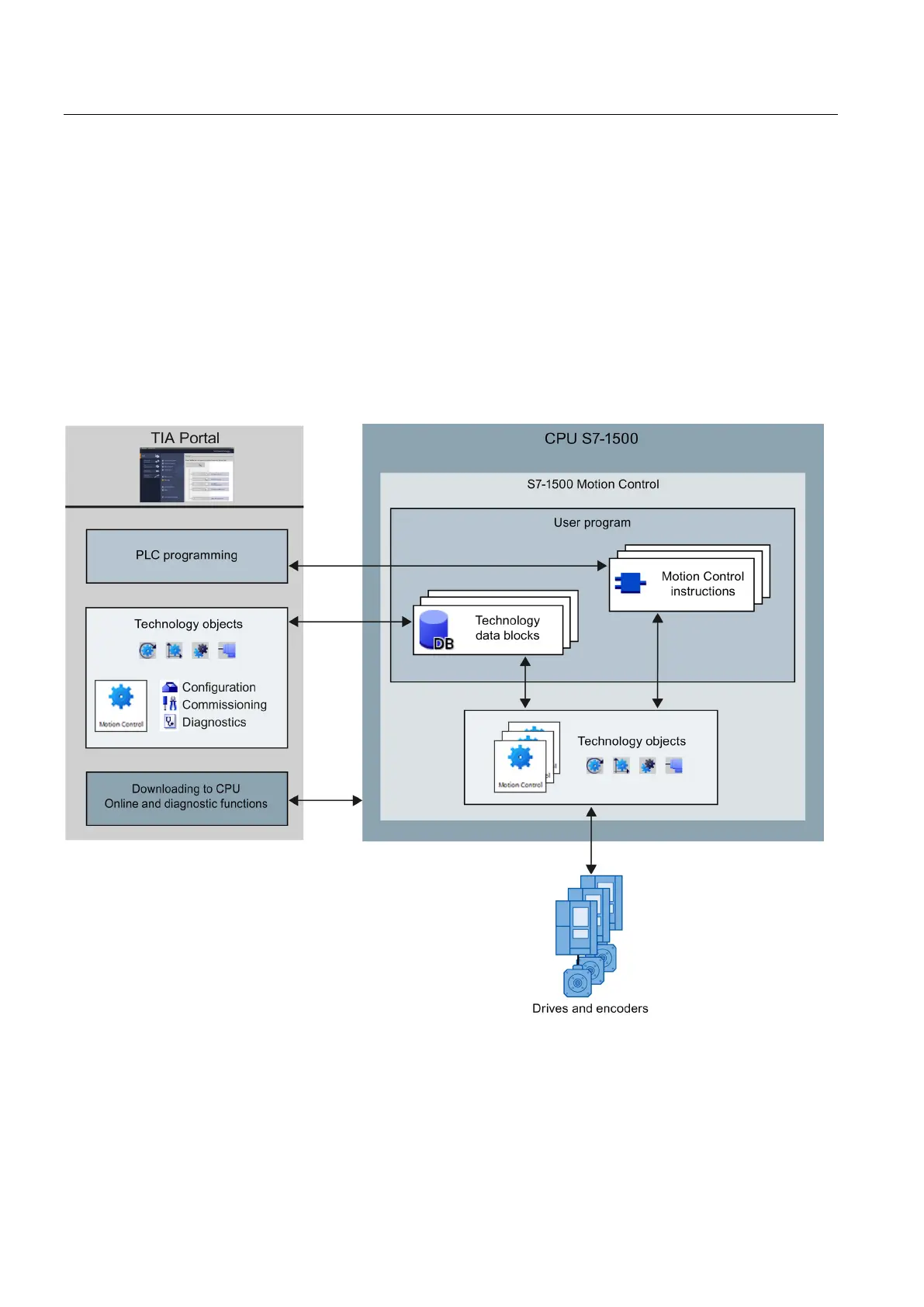

The following figure shows schematically the user interfaces and the integration of Motion
Control into the CPU S7-1500. The concepts are then briefly explained:
