Siemens SINUMERIK 802D sl Function Manual

Kinematic Transformation (M1)
12.2 TRANSMIT
Turning, Milling, Nibbling
230 Function Manual, 11/2012, 6FC5397-1CP10-5BA0
12.2 TRANSMIT
12.2.1 Overview
=0
;0
$60
&0
=
<
;
X, Y, Z Cartesian coordinate system for programming of the face-end machining
ASM Second spindle (work spindle for milling tool, drill)
ZM Z machine axis (linear)
XM X machine axis (linear)
CM C axis (main spindle as rotary axis)

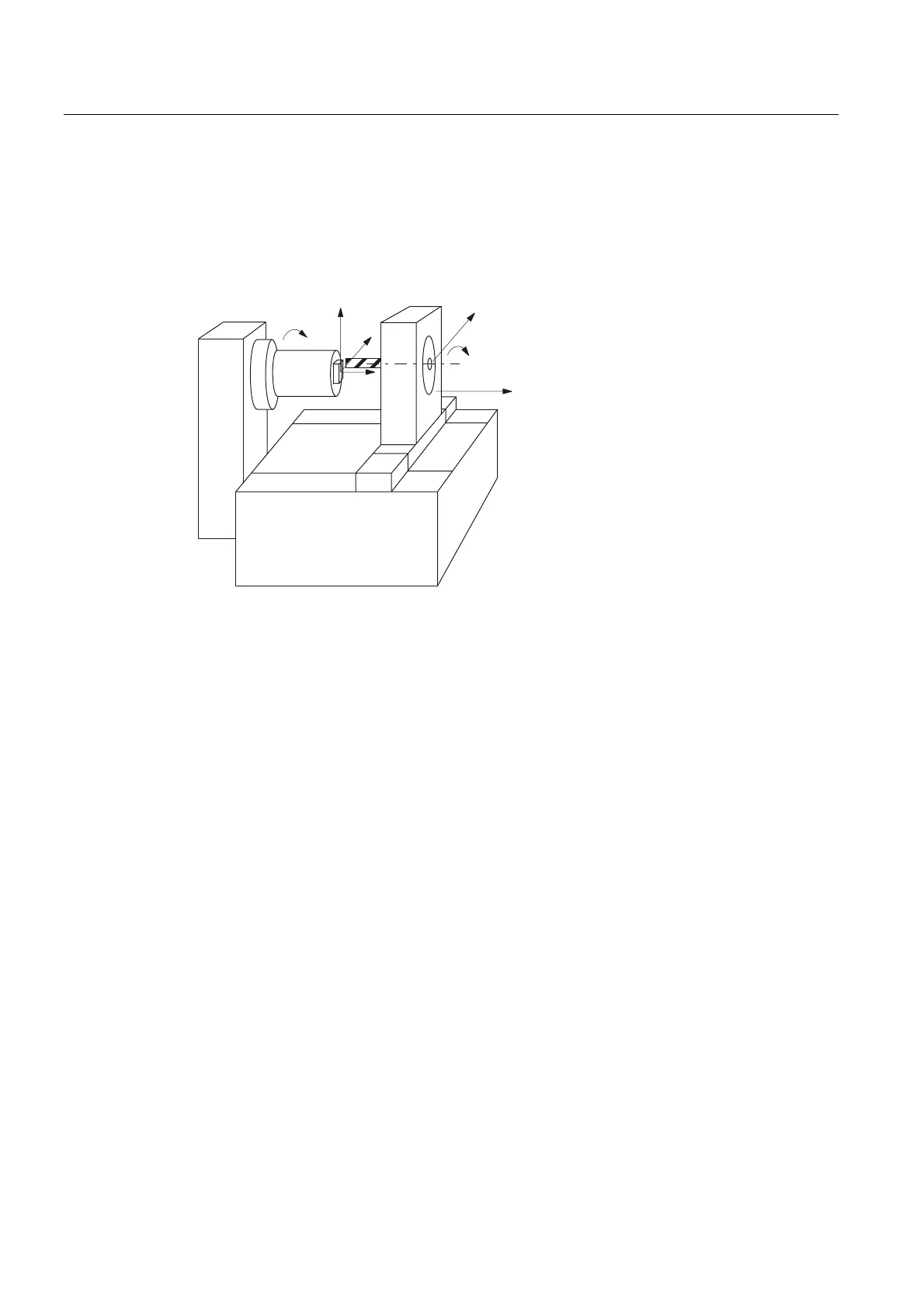

Figure 12-1 Face-end milling of turned parts with TRANSMIT
Required machine kinematics
The two linear axes (XM, ZM) must be mutually perpendicular. The rotary axis (CM) must
travel parallel to the linear axis ZM (rotating around ZM). The linear axis XM intersects the
rotary axis CM (center of rotation).
Activation/de-activation of TRANSMIT
The TRANSMIT function is activated in the program with
● TRANSMIT in a separate block and de-activated with
● TRAFOOF in a separate block
TRAFOOF deactivates any active transformation function.
