Punching and Nibbling (N4)
15.7 Examples of defined start of nibbling operation
Turning, Milling, Nibbling
296 Function Manual, 11/2012, 6FC5397-1CP10-5BA0
15.7 Examples of defined start of nibbling operation
Example 1

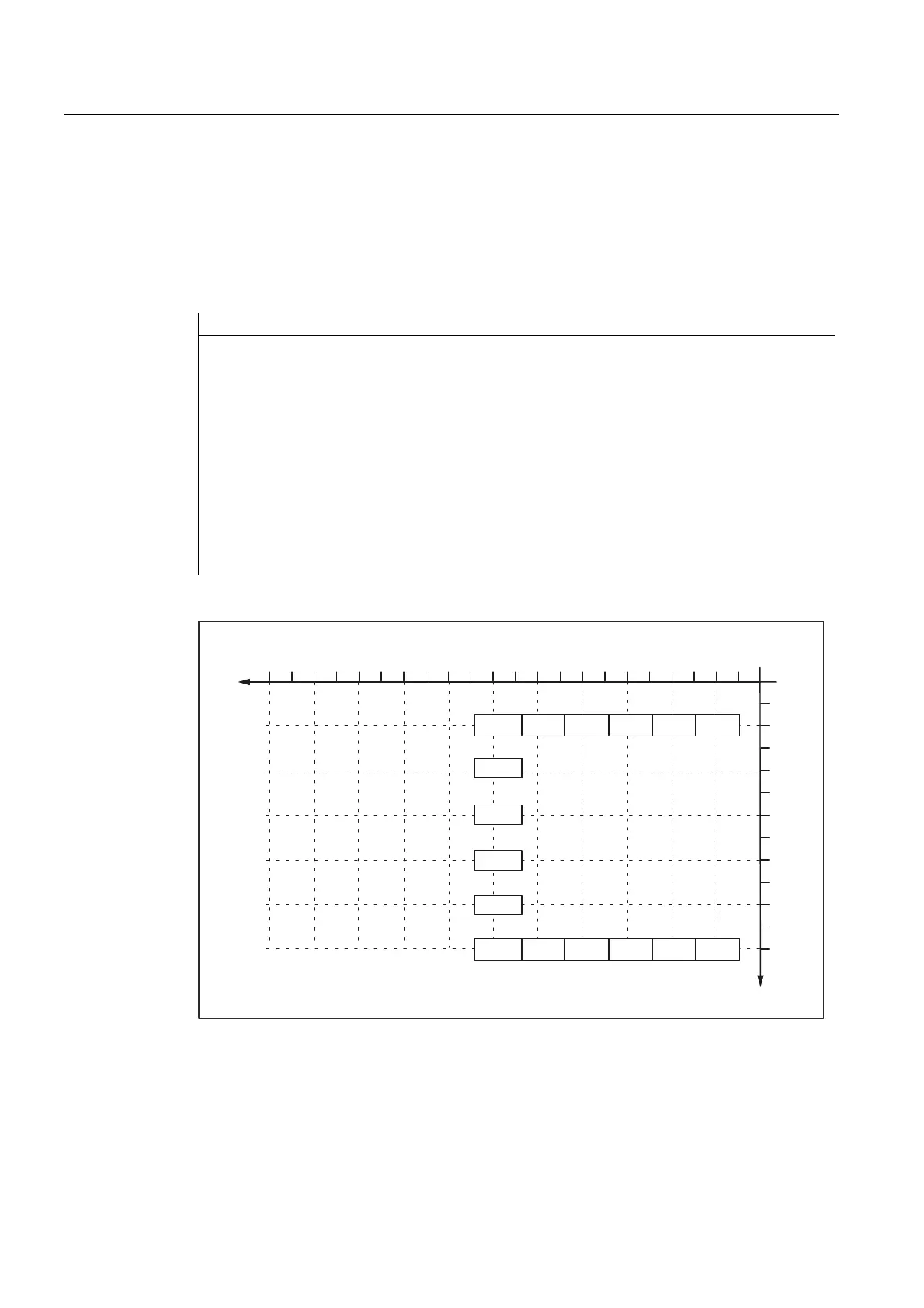

Example of defined start of nibbling operation
Program code Comment
:
:
N10 G0 X20 Y120 SPP= 20 ; Position 1 is approached
N20 X120 SON ; Defined start of nibbling, first stroke at
; "1", last stroke at "2"
N30 Y20 ; Defined start of nibbling, first stroke at
; "3", last stroke at "4"
N40 X20 ; Defined start of nibbling, first stroke at
; "5", last stroke at "6"
N50 SPOF
N60 M2





<
; 



 


     
