Speed/torque coupling, master-slave (TE3)
23
23.1 Brief description
Note
This function is under license and is not available with version T/M value.
If the corresponding option is activated without a valid license, alarm 8081 "%1 option(s) that
has (have) not been licensed using a license key was (were) set" is output. It will not be
possible to operate the machine as normal.
For information on operations relating to "Setting (an) option(s)", please refer to the section
titled "Licensing in SINUMERIK 802D sl" in the "Turning, Milling, Grinding, Nibbling"
Operating Instructions.
Function
The speed/torque coupling function (master-slave) is used for mechanically-coupled axes
that are driven by two separate motors.
Additional applications:
● Compensation of gear backlash and backlash in the gear tooth flank due to mutual
tension in the drives
● Coupling/decoupling of rotating, speed-controlled spindles
● Dynamic configuration of couplings
Speed/torque coupling (master-slave) is a speed setpoint coupling between a master and a
slave axis, involving a torque compensatory controller for even torque distribution.

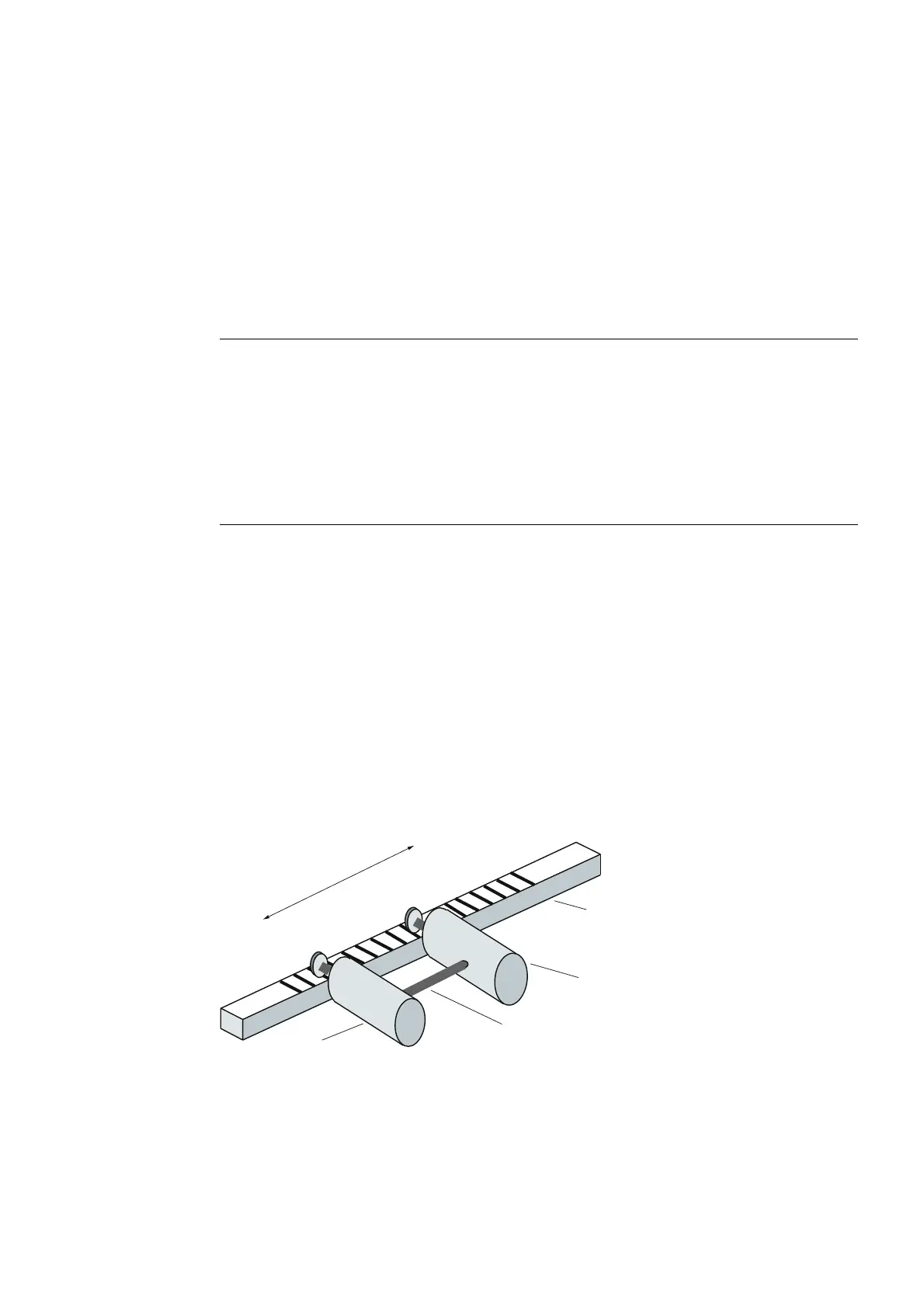

0HFKDQLFDOFRXSOLQJ
*HDUUDFN
<
0RWRU
0RWRU
Figure 23-1 Permanent mechanical coupling
