Operating Modes, Program Operation (K1)
10.4 Program test
Turning, Milling, Nibbling
Function Manual, 11/2012, 6FC5397-1CP10-5BA0
197
The alarm 10208 is also output per default at this time. It should indicate to the operator that
an NC start is still necessary to continue program processing.
Supplementary condition
The approach movement "Search with calculation to block end point" is performed using the
type of interpolation valid in the target block. This should be G0 or G1, as appropriate. With
other types of interpolation, the approach movement can be aborted with an alarm (e.g.
circle end point error on G2/G3).
Note
For further information about the block search function, please see:
Reference:
/BP_/ Operation and Programming
10.4.6 Skip part program blocks (SKP)
Functionality
When testing or breaking in new programs, it is useful to be able to disable or skip certain
part program blocks during program execution.
6NLSEORFNV
1DQG1GXULQJ
SURFHVVLQJ
%ORFNEHLQJ
SURFHVVHG
10
1
1
1
1
1
1
0DLQSURJUDPRUVXEURXWLQH
1
1
352*5$0

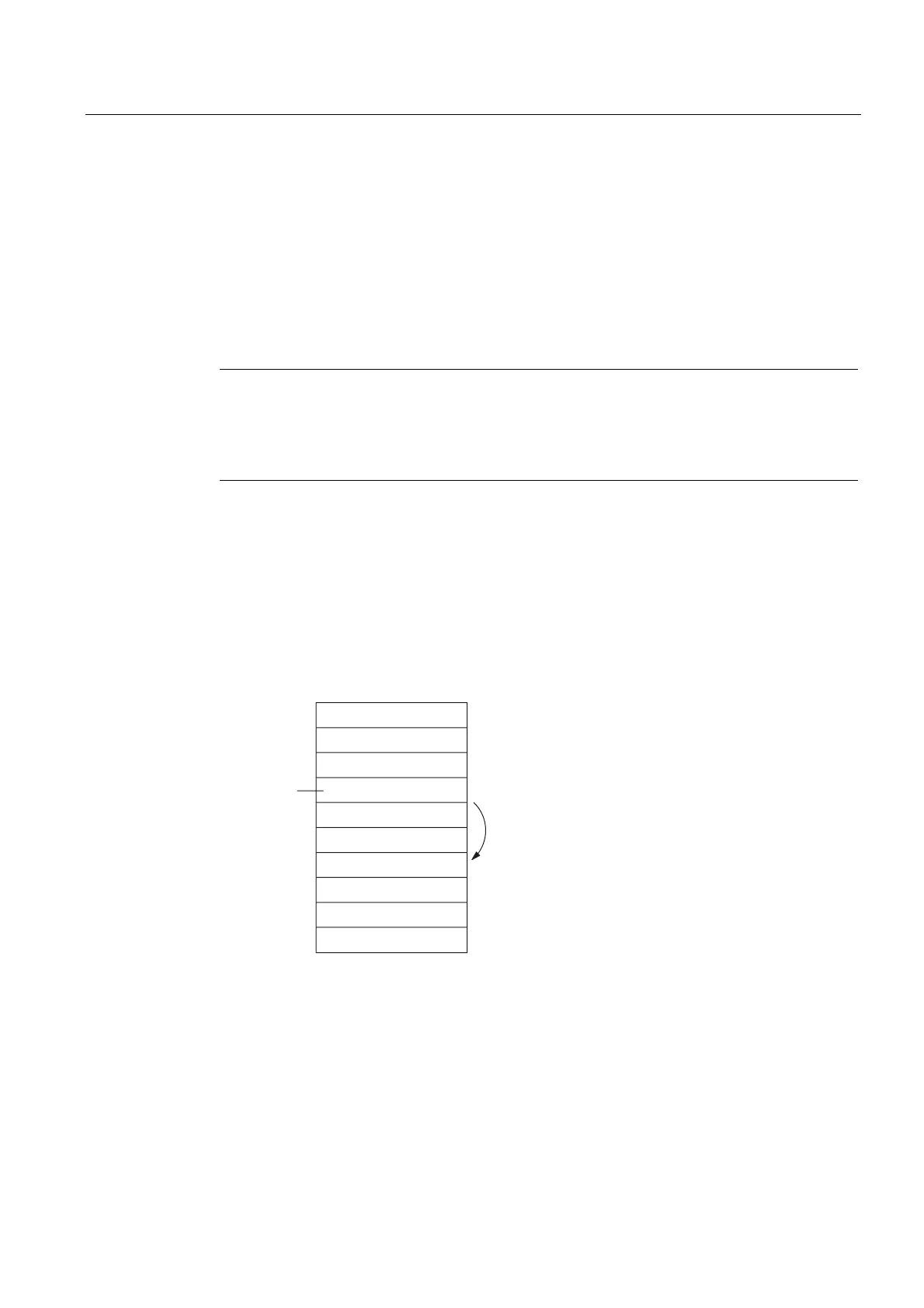

Figure 10-6 Skipping part program blocks
Selection/activation
The skip function is selected via the user interface in the menu "Program control". IS "Skip
block selected" (V1700 0002.0) is set when the function is selected. In addition, a slash "/"
must be written before the blocks to be skipped (see figure). This does not activate the
function.
