Siemens SINUMERIK 802D sl Function Manual

Spindle (S1)
20.6 Spindle monitoring
Turning, Milling, Nibbling
Function Manual, 11/2012, 6FC5397-1CP10-5BA0
359
20.6 Spindle monitoring
Speed ranges
The spindle monitoring functions and the currently active functions (G94, G95, G96, G33,
G331, G332, etc.) define the admissible speed ranges of the spindle.

3URJUDPPDEOHVSLQGOHVSHHGOLPLW*
6SLQGOHLVVWDWLRQDU\
,65HIHUHQFHGV\QFKURQL]HG
6SHHGUDQJHRIFXUUHQWJHDUVWDJH DWDFRQVWDQWFXWWLQJUDWH
6SHHGUDQJHRIFXUUHQWJHDUVWDJH OLPLWHGE\*DQG* 6SHHGUDQJHRIFXUUHQWJHDUVWDJH
3URJUDPPDEOHVSLQGOHVSHHGOLPLW*
3URJUDPPDEOHVSLQGOHVSHHGOLPLW/,06
0D[LPXPVSLQGOHVSHHGIRUFXUUHQWJHDUVWDJH
6SHHGUDQJHRIVSLQGOH RUVSLQGOHFKXFN
,6$[LVVSLQGOHVWDWLRQDU\
0LQLPXPVSLQGOHVSHHGIRUFXUUHQWJHDUVWDJH
0D[LPXPVSLQGOHVSHHG
0D[LPXPHQFRGHUOLPLWIUHTXHQF\
6SHHG

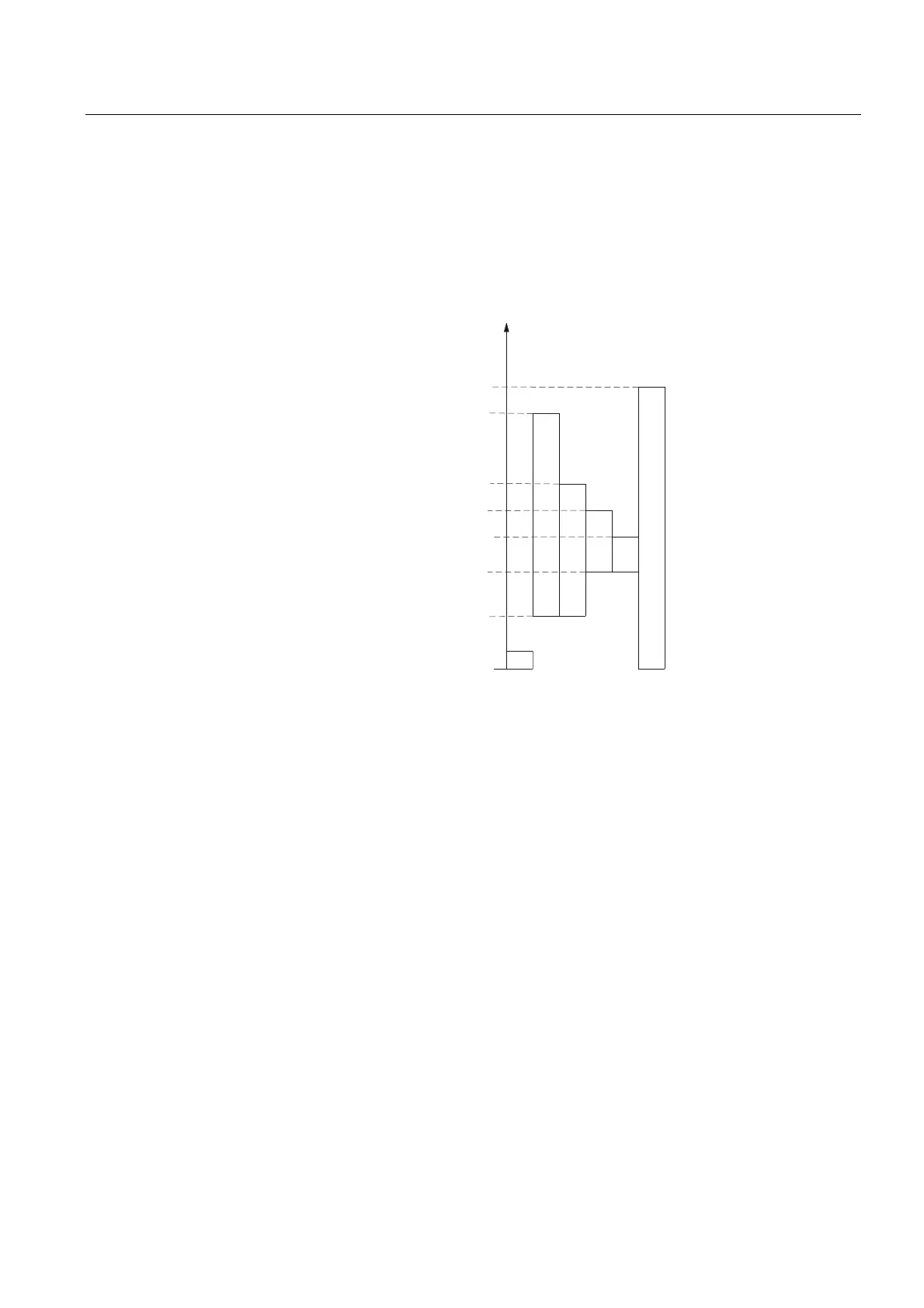

Figure 20-9 Ranges of spindle monitoring functions / speeds
20.6.1 Axis/spindle stationary
Only when the spindle is stationary, i.e. the actual spindle speed is below a value defined in
MD36060 STANDSTILL_VELO_TOL, is IS "Axis/spindle stationary" (V390x 0001.4) set.
Functions such as tool change, open machine door, path feed can be activated using the
PLC user program.
Monitoring is effective in the three spindle modes.
