Siemens SINUMERIK 802D sl Function Manual

Kinematic Transformation (M1)
12.3 TRACYL
Turning, Milling, Nibbling
236 Function Manual, 11/2012, 6FC5397-1CP10-5BA0
12.3 TRACYL
12.3.1 Overview
Standard lathe (without Y machine axis)
$60
;0
=0
&0
/HJHQG
;0,QIHHGD[LVSHUSHQGLFXODUWRURWDU\D[LV
=0$[LVLVSDUDOOHOWRURWDU\D[LV
&05RWDU\D[LV
$
60:RUNVSLQGOH

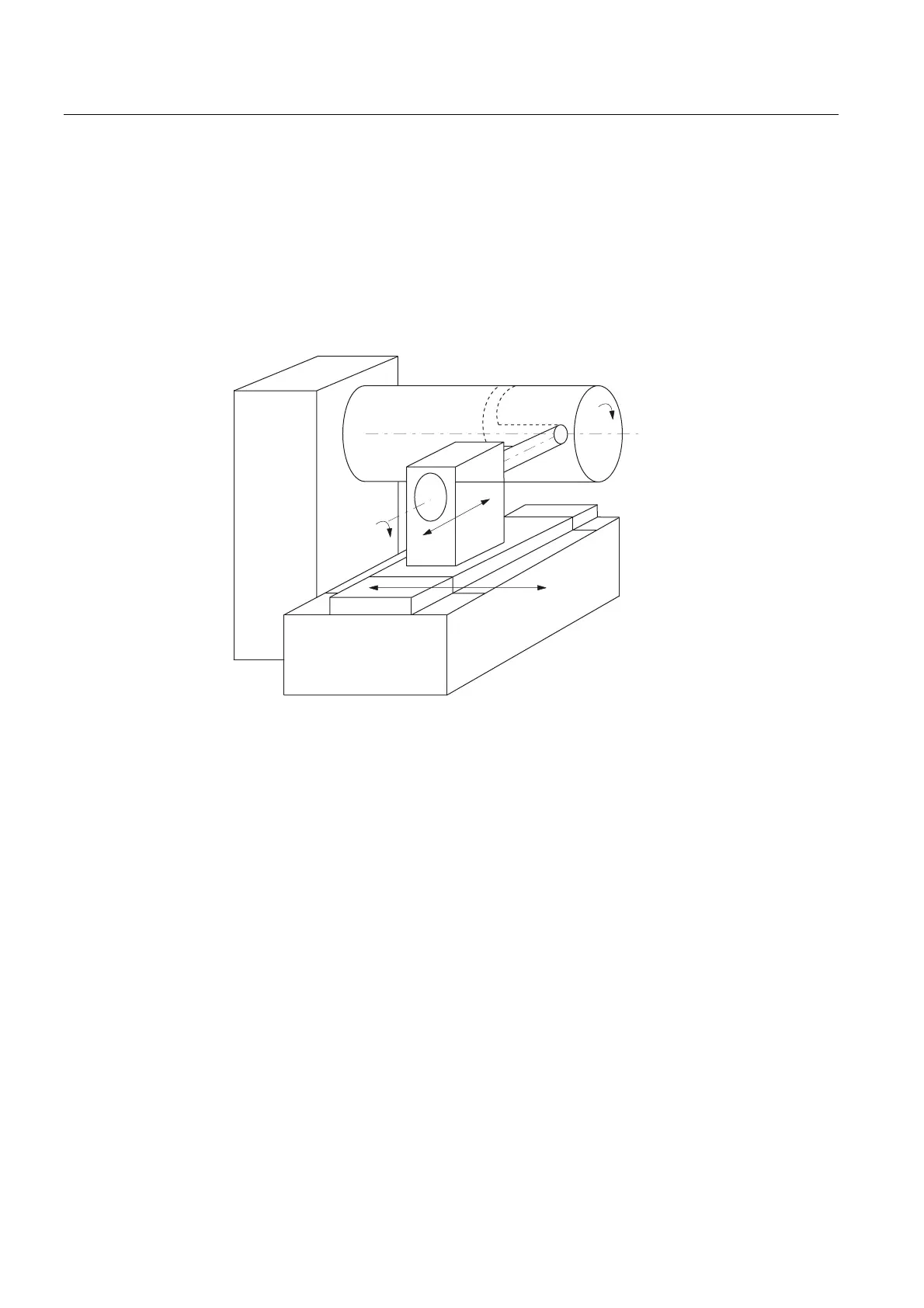

Figure 12-4 Machining grooves on a cylinder surface with X-C-Z kinematics
Required machine kinematics
The two linear axes (XM, ZM) must be mutually perpendicular. The rotary axis (CM) must
travel parallel to the linear axis ZM (rotating around ZM). The linear axis XM intersects the
rotary axis CM (center of rotation).
