Siemens SINUMERIK 802D sl Function Manual

Punching and Nibbling (N4)
15.4 Automatic path segmentation
Turning, Milling, Nibbling
282 Function Manual, 11/2012, 6FC5397-1CP10-5BA0
15.4.2 Operating characteristics with path axes
MD26010
All axes defined and programmed via machine data MD26010 PUNCHNIB_AXIS_MASK are
traversed along path sections of identical size with
SPP and SPN until the programmed end
point is reached. This also applies to rotatable tool axes if programmed. The response can
be adjusted for single axes.

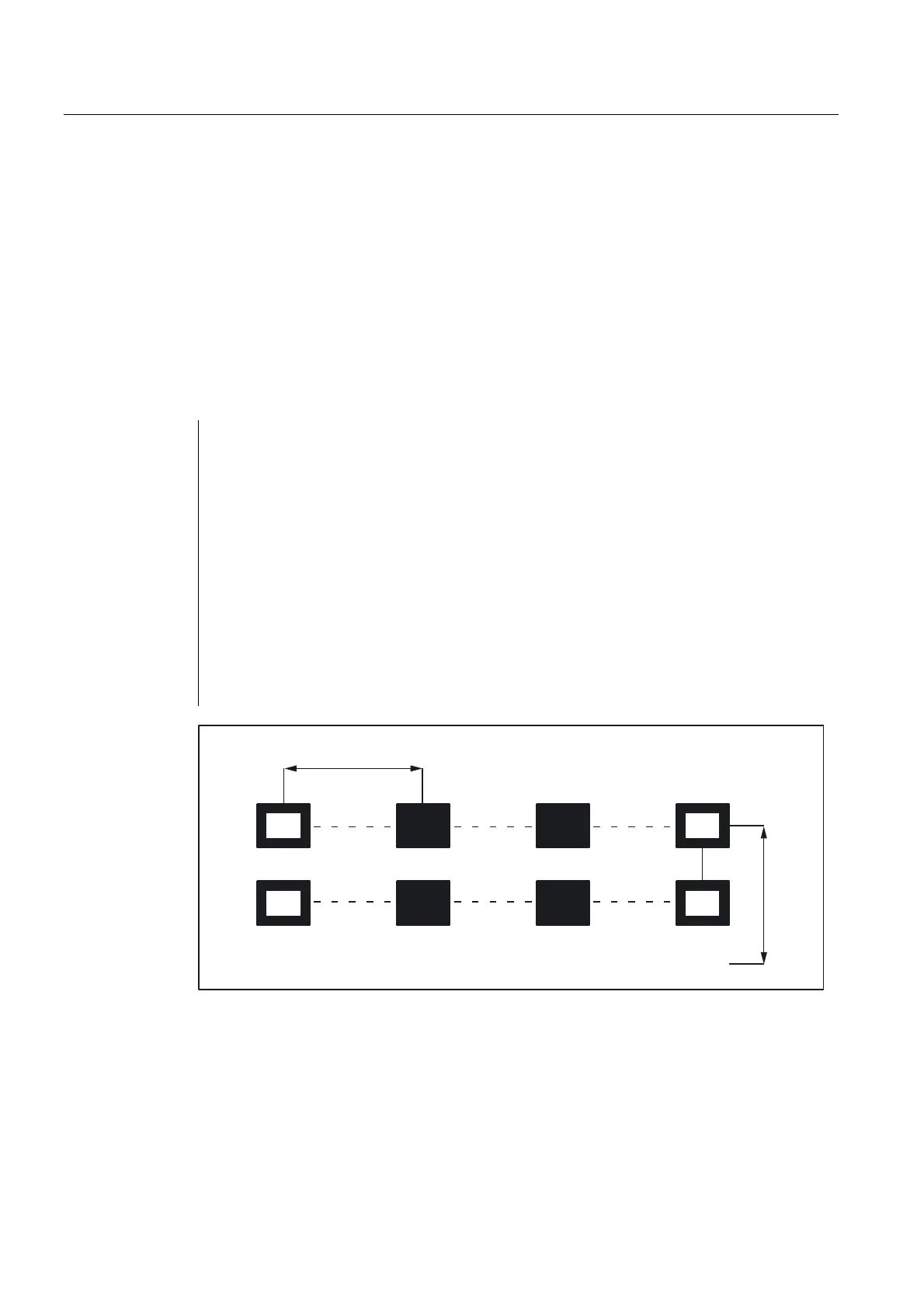

Example of SPP
N1 G01 X0 Y0 SPOF ; Position without punch initiation
N2 X75 SPP=25 SON ;
;
Nibble with feed value 25 mm; initiate punch before
the first movement and after each path segment.
:
:
N3 Y10 ;
;
Position with reduced SPP value, because traversing
distance < SPP value, and initiate punch after
movement.
:
:
:
N4 X0 ; Reposition with punch initiation after each path
segment.
:
