EMERGENCY OFF (N2)
14.3 EMERGENCY STOP acknowledgment
Turning, Milling, Nibbling
Function Manual, 11/2012, 6FC5397-1CP10-5BA0
263
Note
The interruption of the power feed to the equipment is the responsibility of the machine
manufacturer.
If the internal functions in the NC should not be executed in the predetermined sequence
in the event of an EMERGENCY STOP, then IS EMERGENCY STOP (V2600 0000.1)
may not be set at any time up to the point that an EMERGENCY STOP defined by the
machine manufacture in the PLC user program is reached. As long as the EMERGENCY
STOP interface signal has not been set and no other alarm is active, all interface signals
are effective in the NC. Any EMERGENCY STOP state defined by the manufacturer can
therefore be assumed.
14.3 EMERGENCY STOP acknowledgment
Acknowledge EMERGENCY STOP
The EMERGENCY STOP state is reset only if IS "Acknowledge EMERGENCY STOP"
(V2600 0000.2) followed by IS "Reset" (V3000 0000.7) are set. It must be noted in this
respect that IS "Acknowledge EMERGENCY STOP" and IS "Reset" must be set (together)
for a long enough period for IS "EMERGENCY STOP active" (V2700 0000.1) to be reset
(see Fig. 1–1).
,65(6(7KDVQRHIIHFW
,6$FNQRZOHGJH(0(5*(1&<6723DQG5(6(7UHVHW(0(5*(1&<
6723DFWLYH
,6$FNQRZOHGJH(0(5*(1&<6723KDVQRHIIHFW
,65(6(7
9
,6(0(5*(1&<6723DFWLYH
9
,6$FNQRZOHGJH(0(5*(1&<6723
9
,6(0(5*(1&<6723
9

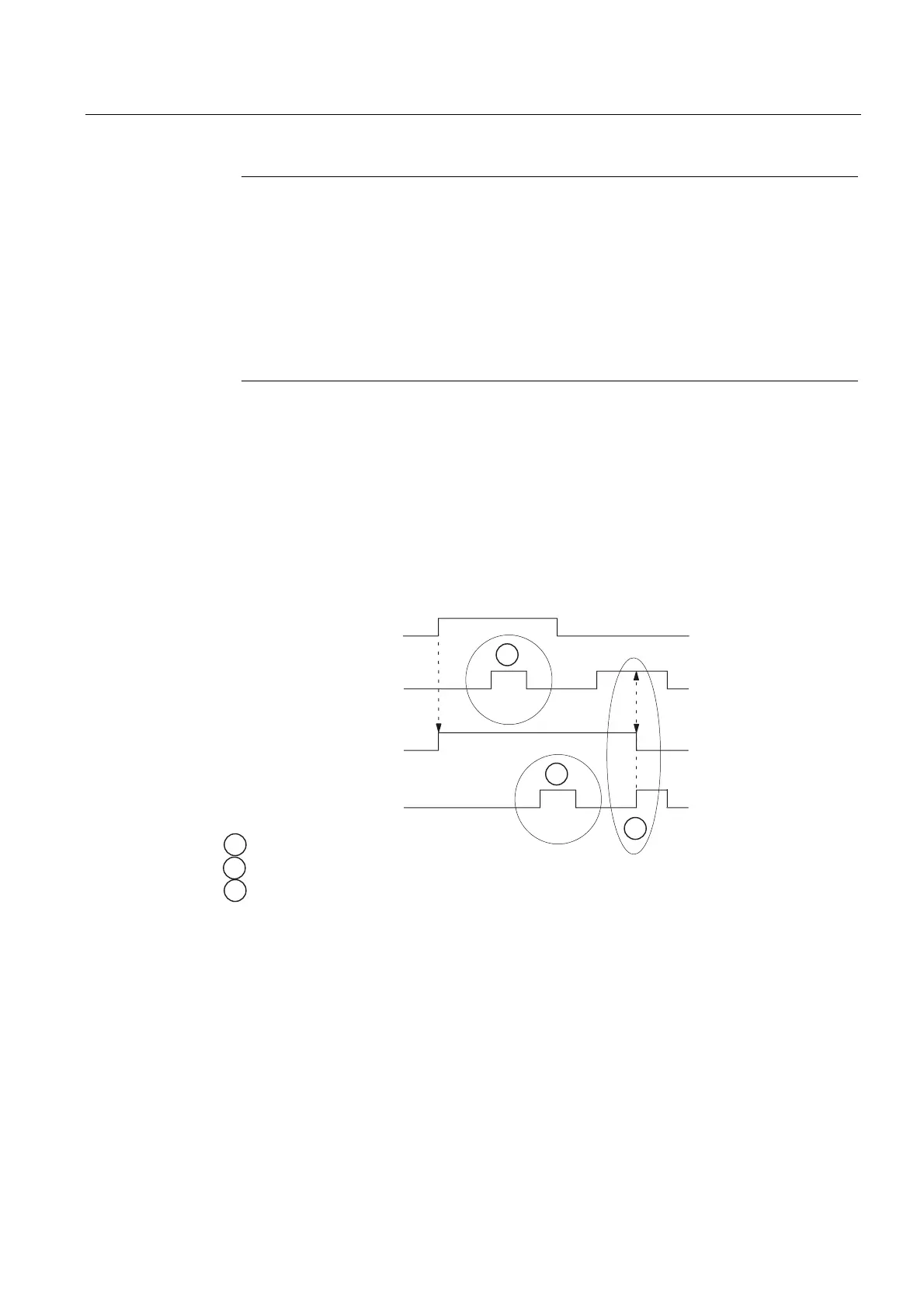

Figure 14-1 Reset emergency stop
Resetting the EMERGENCY STOP state has the following effects:
● IS "EMERGENCY STOP active" is reset.
● The controller enable is switched in.
● IS "Position control active" is set.
● IS "802-READY" is set.
● Alarm 3000 is cleared.
● The part program is aborted.
