15.4 Automatic path segmentation
Turning, Milling, Nibbling
286 Function Manual, 11/2012, 6FC5397-1CP10-5BA0
MD26016 PUNCH_PARTITION_TYPE = 0 (default setting)
With this setting, the axes behave as standard, i.e. the programmed special axis motions are
distributed among the generated intermediate blocks of the active path segmentation
function in all interpolation modes.

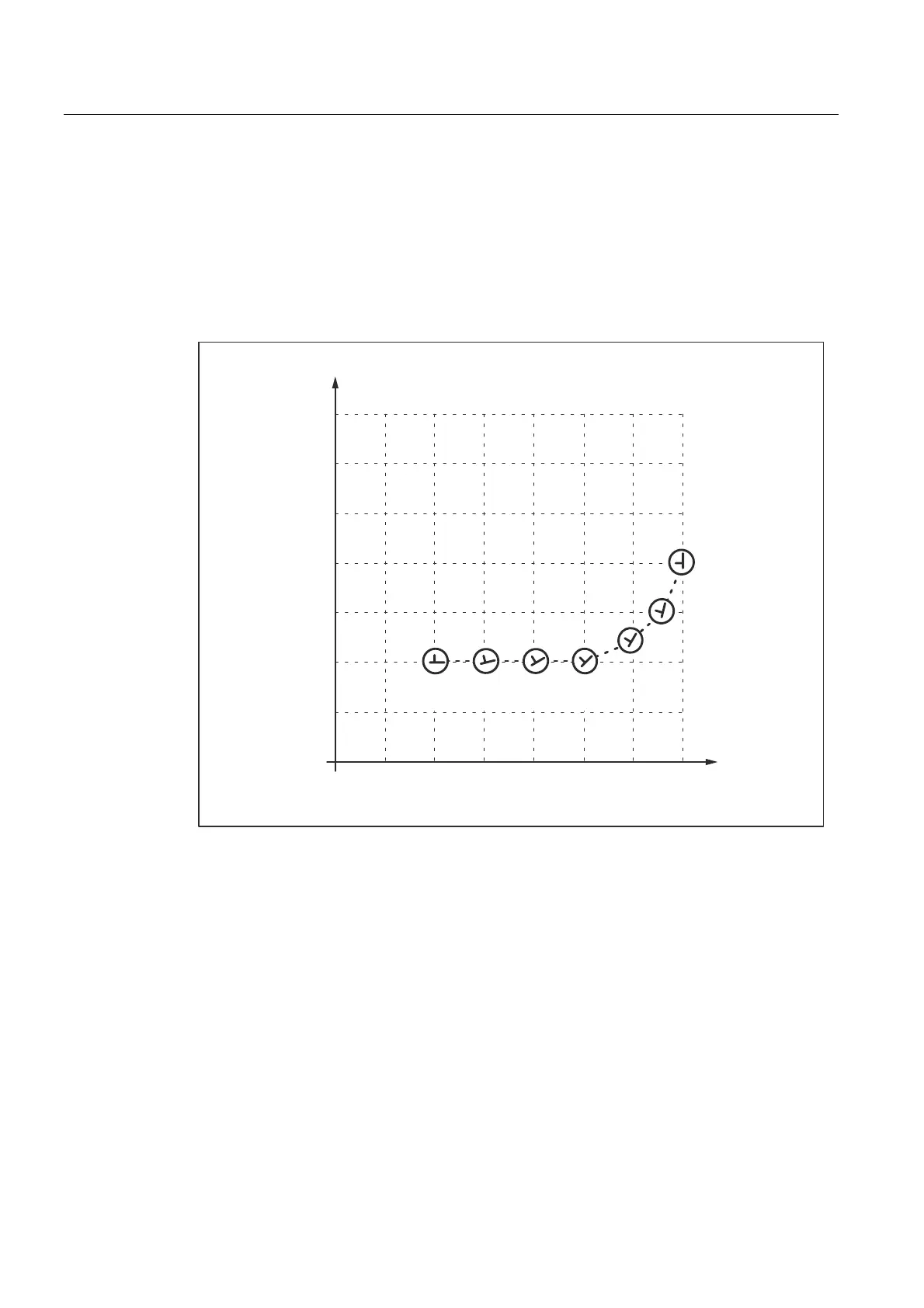

In block
N20, the C axis is rotated through 15° in each of the three intermediate blocks. The
axis response is the same in block
N30, in the case of circular interpolation (three sub-blocks,
each with 15° axis rotation).
