Siemens SINUMERIK 802D sl Function Manual

Indexing Axes (T1)
21.5 Starting up indexing axes
Turning, Milling, Nibbling
Function Manual, 11/2012, 6FC5397-1CP10-5BA0
377
General machine data
MD10910 INDEX_AX_POS_TAB_1 [n] Indexing position table 1
MD10930 INDEX_AX_POS_TAB_2 [n] Indexing position table 2
Axial machine data
MD30500 INDEX_AX_ASSIGN_POS_TAB Axis is indexing axis (assignment of indexing
position table 1 or 2, or 3 for equidistant indexing)
Machine data examples
The assignment of the above machine data is described in the following paragraphs using
two examples.
Example of indexing axis as rotary axis
Tool turret with eight locations. The tool turret is defined as a continuously rotating rotary
axis. The distances between the eight turret locations are constant. The first turret location is
located at position 0°:
$[LVSRVLWLRQ
,QGH[LQJ
SRVLWLRQ
r
r
r
r
rr
r
r








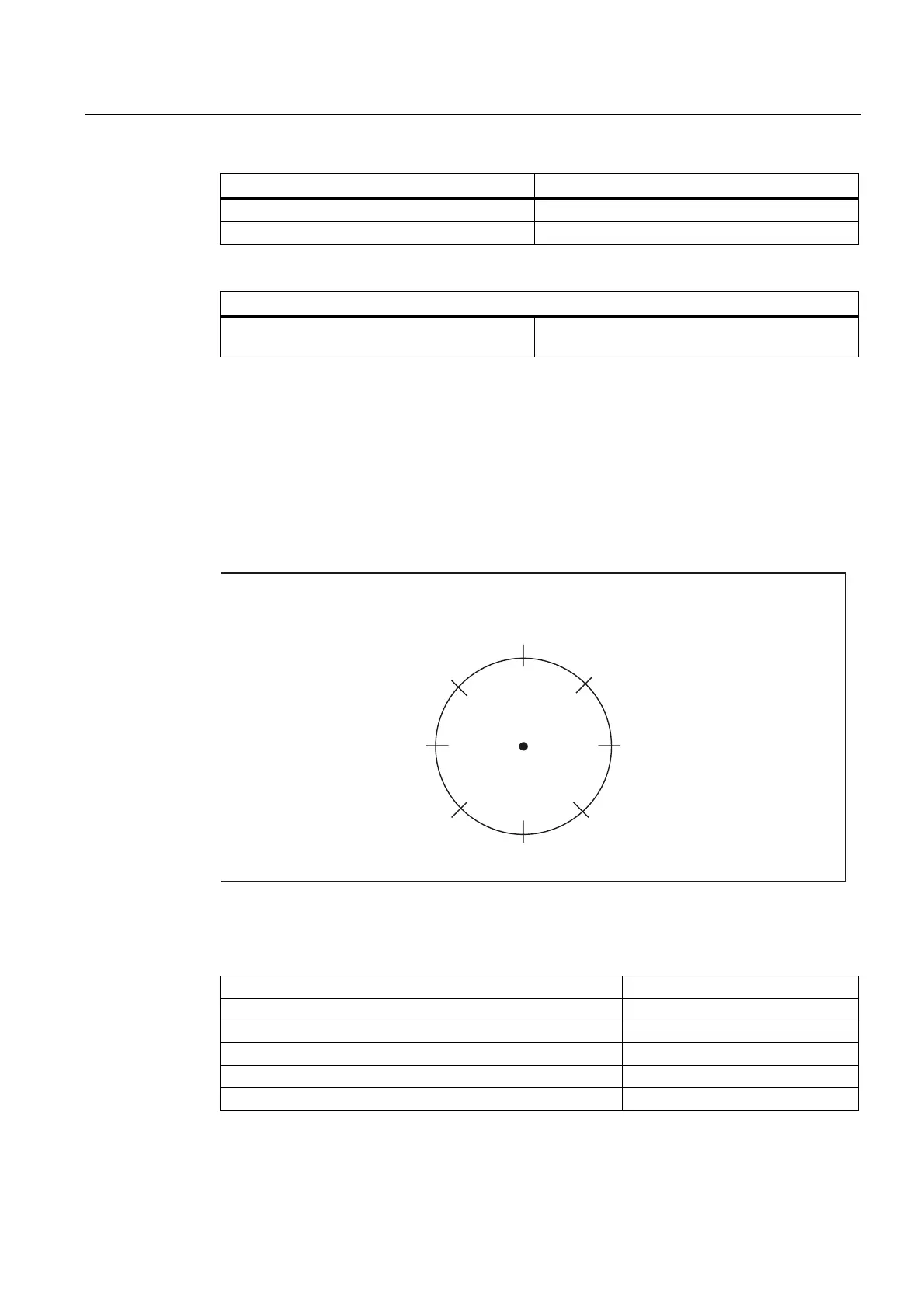

Figure 21-1 Example: Tool turret with eight locations
The indexing positions for the tool turret are entered in indexing position table 1.
MD10910 INDEX_AX_POS_TAB_1[0] = 0 1. indexing position at 0°
MD10910 INDEX_AX_POS_TAB_1[1] = 45 2. indexing position at 45°
MD10910 INDEX_AX_POS_TAB_1[2] = 90 3. indexing position at 90°
MD10910 INDEX_AX_POS_TAB_1[3] = 135 4. indexing position at 135°
MD10910 INDEX_AX_POS_TAB_1[4] = 180 5. indexing position at 180°
MD10910 INDEX_AX_POS_TAB_1[5] = 225 6. indexing position at 225°
