Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
251

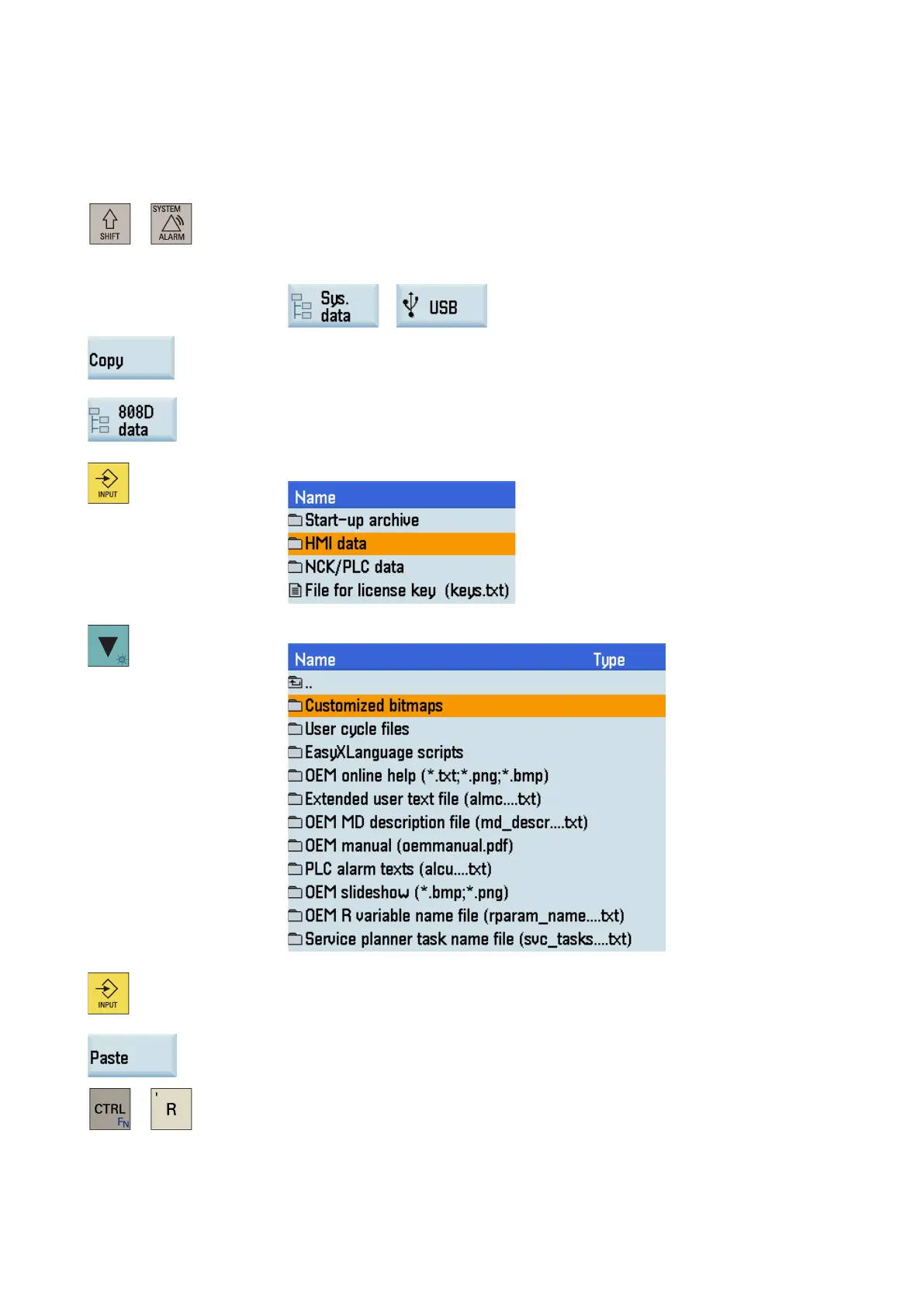

Proceed as follows to use your own startup screen:
1.
Prepare the image for the startup screen in BMP format. To
achieve the best display effect,
the recommended image size is 750*450 pixels. Name the image "sta
rtup.bmp" and save it
on a USB memory stick.
2.
Insert the USB stick into the USB interface on the front panel of the PPU.
+
3.
Select the system data operating area.
4.
Locate the startup screen file under the USB direc
tory through the following softkey opera-
tions:
→
5.
Select the file with cursor keys and press this softkey to copy the file.
6.
Press
this softkey to open the window of system data.
7.
Select the HMI data folder and press this key to open it.
8.
Move the cursor to the folder highlighted as follows:
9.
Press this key to open this folder.
10.
Press this softkey to replace the default startup screen file with your own file.
+
11.
Press these two keys to restart the HMI. Then you can see your own startup screen during
the startup of the control system.
