Note
To restore the default startup screen, delete the customized bitmap file (startup.bmp) from
the control system.
Using the machine manufacturer machine logo

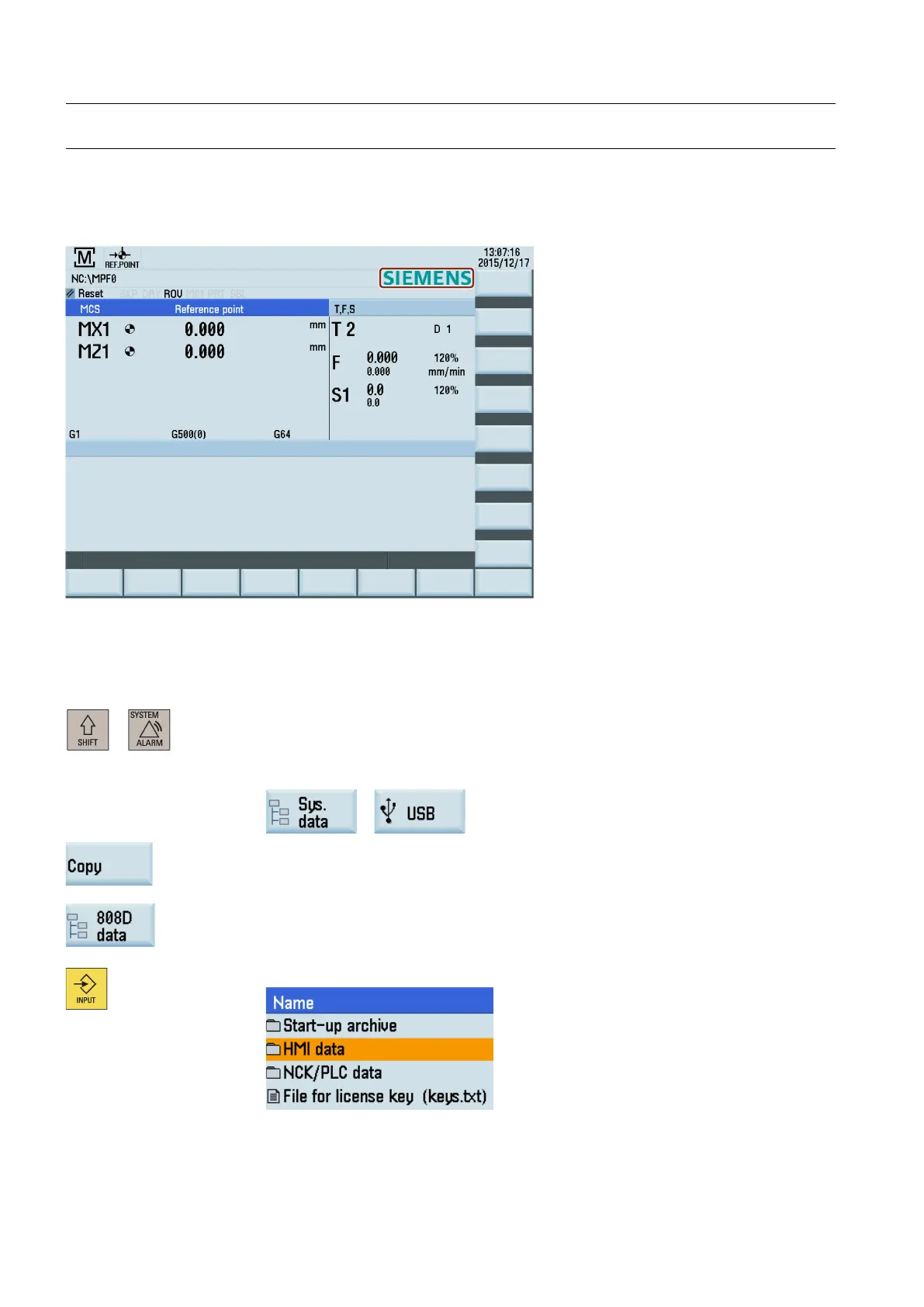

The default machine logo is displayed in the machining operating area as follows. If necessary, you can use your own
machine logo.
Proceed as follows to use your own machine logo:
1.
Prepare the image of your own machine logo in BMP format. To achieve the best display
effect, the recommended image size is 153*24 pixels. Name the image "mtbico.bmp"
and
save it on a USB memory stick.
2.
Insert the USB stick into the USB interface on the front panel of the PPU.
+
3.
Select the system data operating area.
4.
Locate the machine logo file under the USB directory through the following softkey oper
a-
tions:
→
5.
Select the file with cursor key
s and press this softkey to copy the file.
6.
Press this softkey to open the window of system data.
7.
Select the HMI data folder and press this key to open it.
