8.

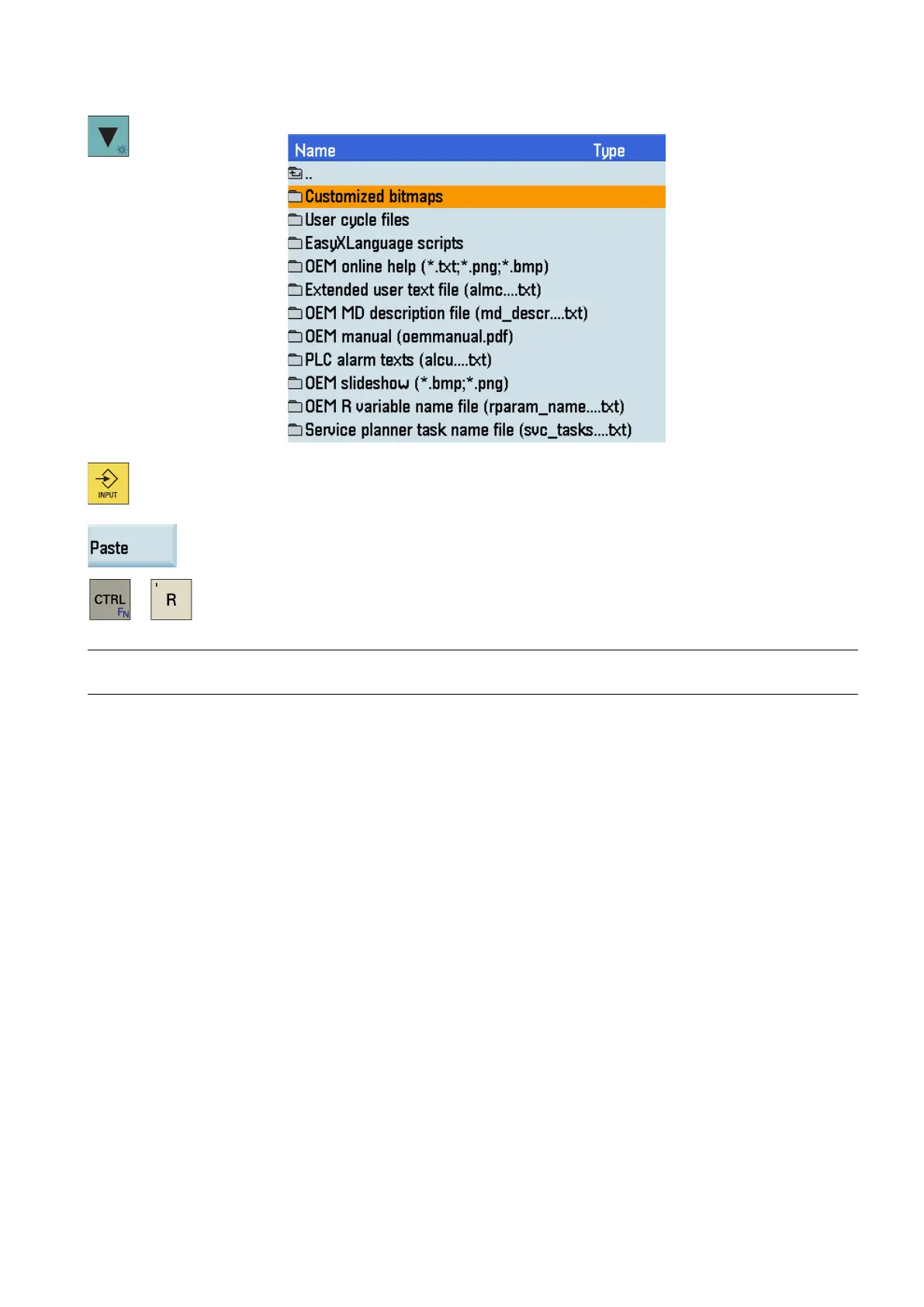

Move the cursor to the folder highlighted as follows:
9.
Press this key to open this folder.
10.
Press this softkey to replace the default machine logo file with your own machine logo file.
+
11.
Press these two keys to restart the HMI. Then you can see your own
machine logo in the
machining operating area.
Note
To restore the default display of "SIEMENS" logo, delete the customized bitmap file (mtbico.bmp) from the control system.
