Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
27

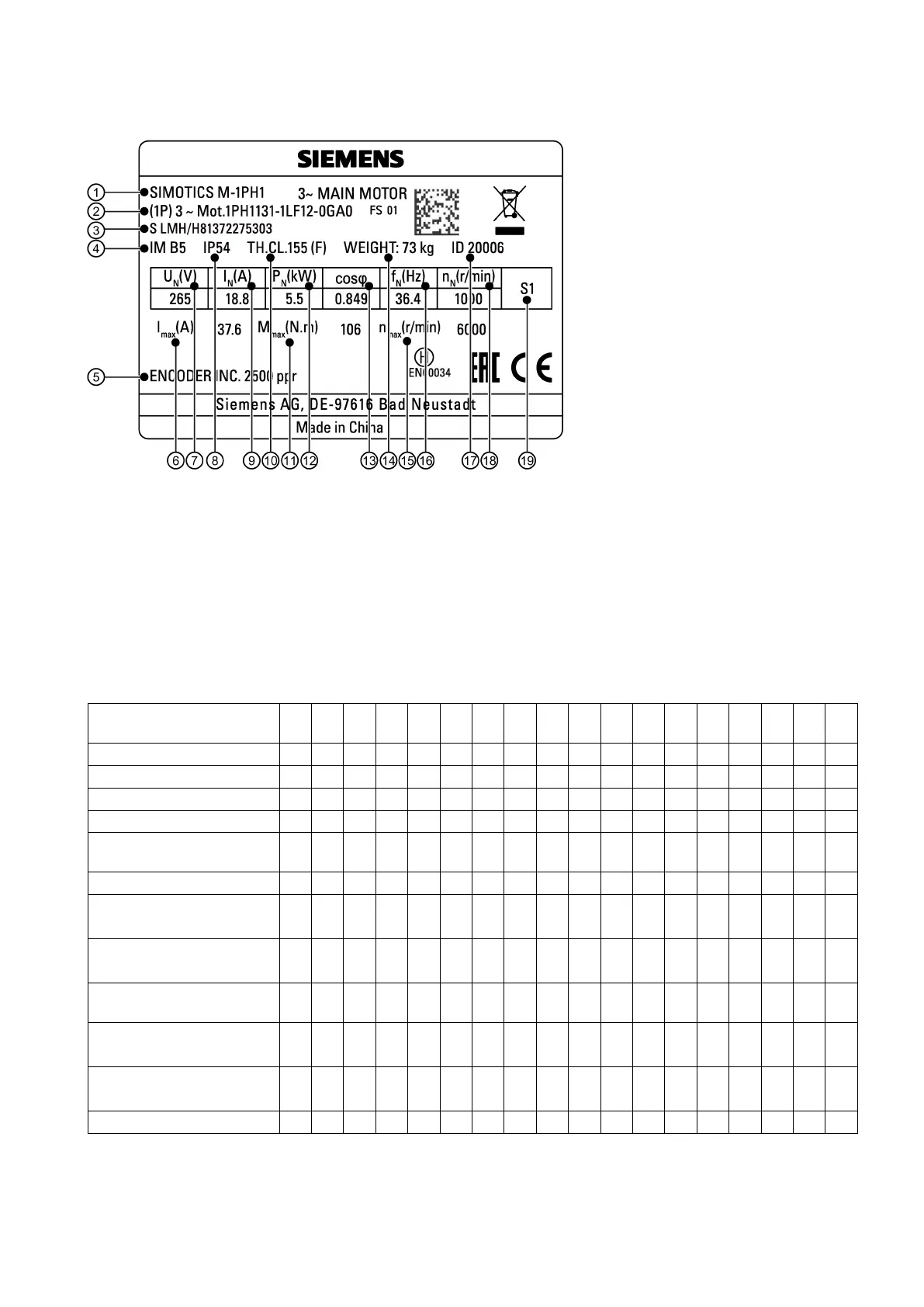

SIMOTICS M-1PH1 main motor rating plate
①
Motor type
⑧
Degree of protection
⑮
Maximum speed
②
Article number
⑨
Rated current
⑯
Rated frequency
③
Serial number
⑩
Thermal class
⑰
Motor ID
④
Mounting orientation
⑪
Maximum torque
⑱
Rated speed
⑤
Encoder type and resolution
⑫
Rated power
⑲
Motor operating mode
⑥
Maximum current
⑬
Motor power factor
⑦
Rated voltage
⑭
Weight
Explanation of the SIMOTICS M-1PH1 main motor article numbers
Data position of the article
number
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Article number
1
P
H
1
❑
❑
❑
-
●
❑
❑
●
❑
-
❑
●
●
●
Shaft height
100 mm
1
0
132 mm
1
3
Rated power and speed
(SH100)
3.7 kW, 1500 rpm
1
3.7 kW, 1000 rpm;
5.5 kW, 1500 rpm
3
5.5 kW, 1000 rpm;
7.5 kW, 1500 rpm
5
Rated power and speed
(SH132)
7.5 kW, 1000 rpm;
11 kW, 1500 rpm
1
11 kW, 1000 rpm;
15 kW, 1500 rpm
3
Asynchronous variant
1
