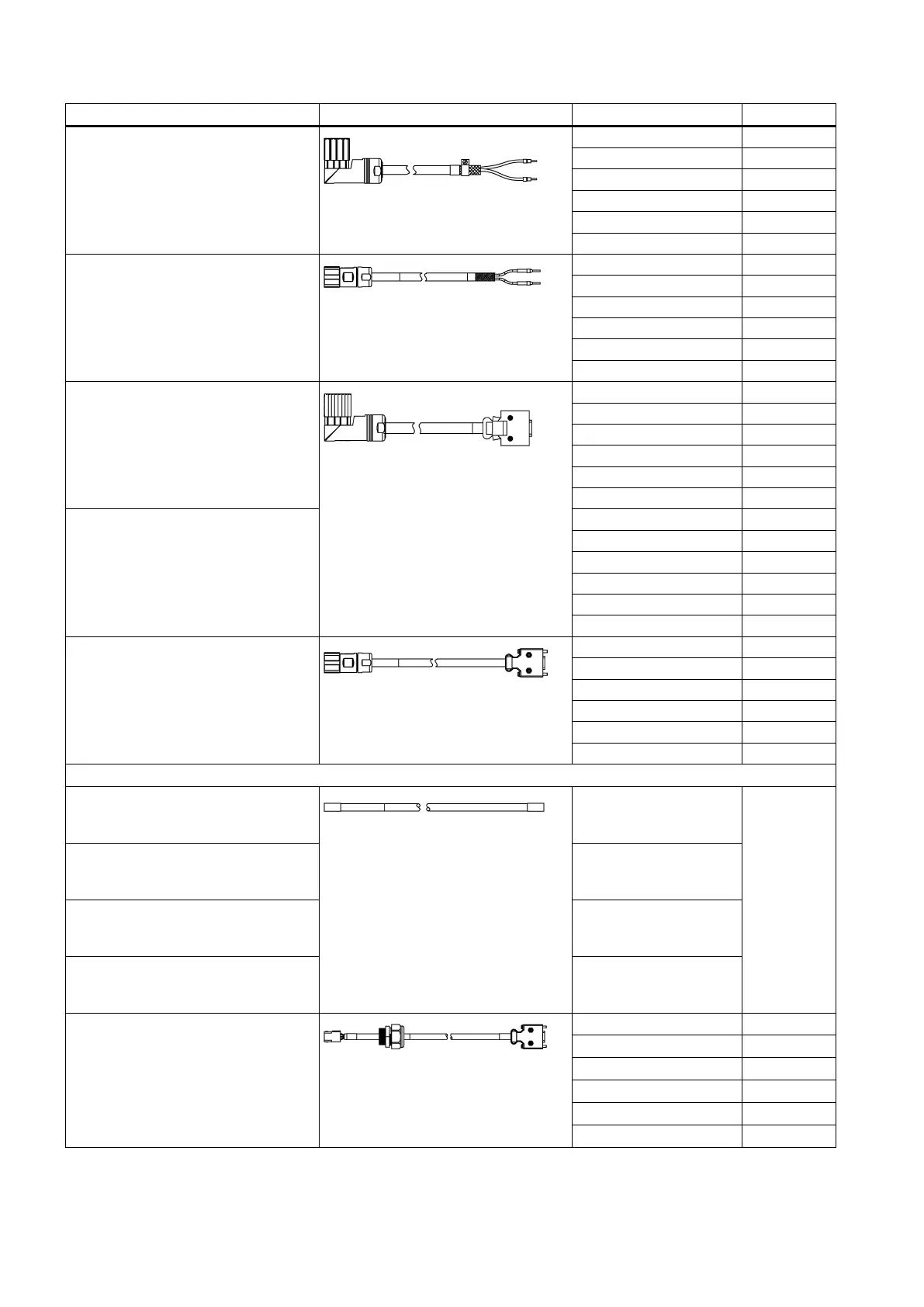

Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
30 6FC5397-4EP10-0BA8, 07/2018
Component
Illustration
Article number
Length (m)
MOTION-CONNECT 300 brake cable
(V70 to 1FL6 motor with straight con-
nectors)
6FX3002-5BL02-1AD0
3
6FX3002-5BL02-1AF0
5
6FX3002-5BL02-1AH0
7
6FX3002-5BL02-1BA0
10
6FX3002-5BL02-1BF0
15
6FX3002-5BL02-1CA0
20
MOTION-CONNECT 300 brake cable
(V70 to 1FL6 motor with angular con-
nectors)
6FX3002-5BL03-1AD0
3
6FX3002-5BL03-1AF0
5
6FX3002-5BL03-1AH0
7
6FX3002-5BL03-1BA0
10
6FX3002-5BL03-1BF0
15
6FX3002-5BL03-1CA0
20
MOTION-CONNECT 300 incremental
encoder cable (V70 to 1FL6 motor with
straight connectors)
6FX3002-2CT10-1AD0
3
6FX3002-2CT10-1AF0
5
6FX3002-2CT10-1AH0
7
6FX3002-2CT10-1BA0
10
6FX3002-2CT10-1BF0
15
6FX3002-2CT10-1CA0
20
MOTION-CONNECT 300 absolute
encoder cable (V70 to 1FL6 motor with
straight/angular connectors)
6FX3002-2DB10-1AD0
3
6FX3002-2DB10-1AF0
5
6FX3002-2DB10-1AH0
7
6FX3002-2DB10-1BA0
10
6FX3002-2DB10-1BF0
15
6FX3002-2DB10-1CA0
20
MOTION-CONNECT 300 incremental
encoder cable (V70 to 1FL6 motor with
angular connectors)
6FX3002-2CT12-1AD0
3
6FX3002-2CT12-1AF0
5
6FX3002-2CT12-1AH0
7
6FX3002-2CT12-1BA0
10
6FX3002-2CT12-1BF0
15
6FX3002-2CT12-1CA0
20
SINAMICS V70 spindle drive to 1PH1 motor
MOTION-CONNECT 500 power cable
(4 × 2.5 mm
2
, raw cable), for 1PH1
3.7 kW motor
6FX5008-1BB21-1DA0 30
MOTION-CONNECT 500 power cable
(4 × 4 mm
2
, raw cable), for 1PH1
5.5 kW to 7.5 kW motor
6FX5008-1BB31-1DA0
MOTION-CONNECT 500 power cable
(4 × 10 mm
2
, raw cable), for 1PH1
11 kW motor
6FX5008-1BB51-1DA0
MOTION-CONNECT 500 power cable
(4 × 16 mm
2
, raw cable), for 1PH1
15 kW motor
6FX5008-1BB61-1DA0
MOTION-CONNECT 300 incremental
encoder cable
6FX3002-2CT30-1AD0
3
6FX3002-2CT30-1AF0
5
6FX3002-2CT30-1AH0
7
6FX3002-2CT30-1BA0
10
6FX3002-2CT30-1BF0
15
6FX3002-2CT30-1CA0
20
