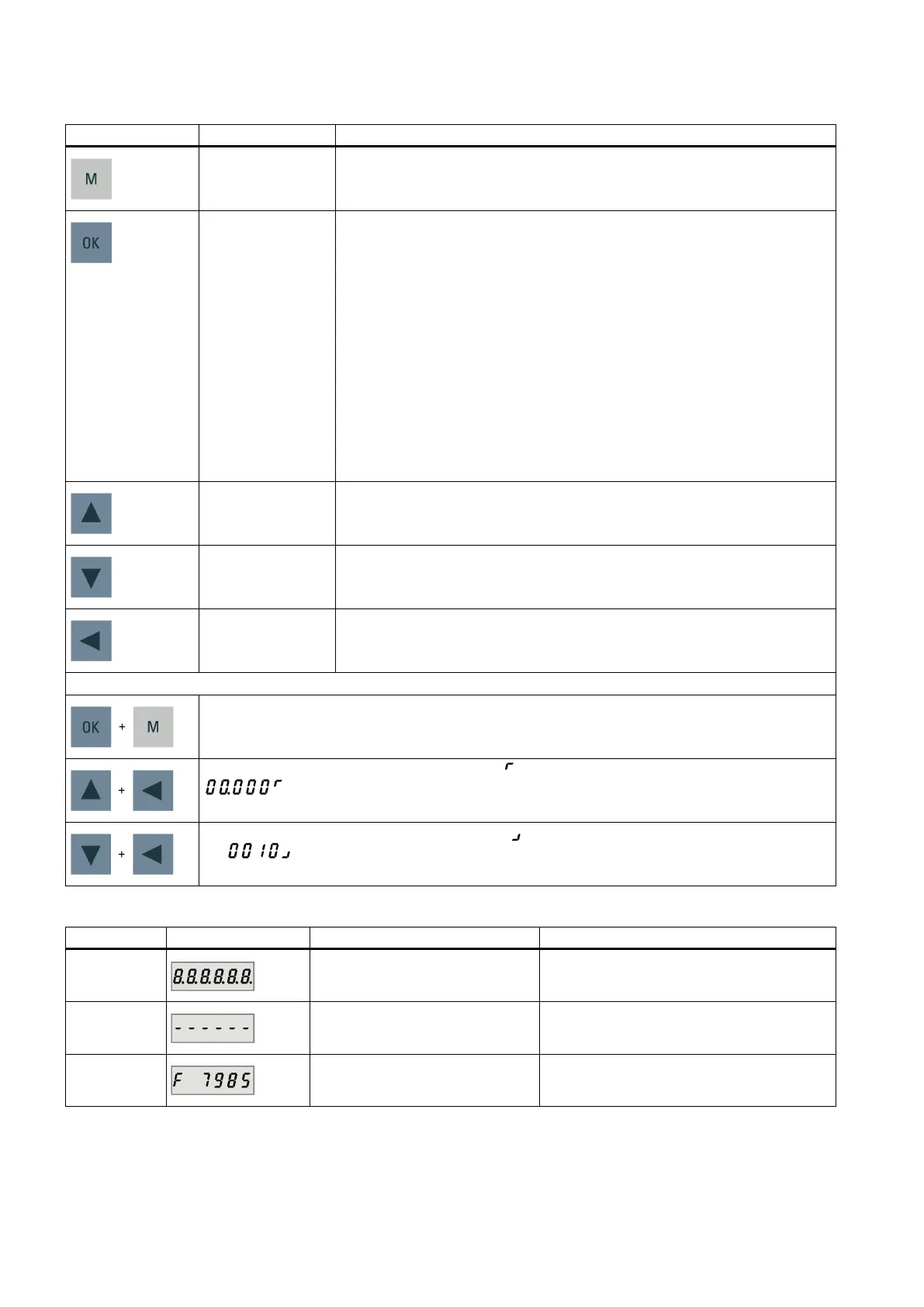

Button functions
Button
Description
Remarks
M button
•
Exits from current menu
• Switches between operating modes in the top level menu
OK button Short-pressing:
• Confirms selection or input
• Enters sub menu
• Acknowledges faults
Long-pressing:
Activates auxiliary functions
• Sets Drive Bus address
• Jog
• Saves parameter set in drive (RAM to ROM)
• Sets parameter set to default
• Transfers data (drive to SD card)
• Transfers data (SD card to drive)
• Updates firmware
UP button
• Navigates to next item
• Increases a value
•
JOG in CW (clockwise)
DOWN button
• Navigates to previous item
• Decreases a value
•
JOG in CCW (counter-clockwise)
SHIFT button Moves the cursor from digit to digit for single digit editing, including the digit of
positive/negative signs
Button combinations
Press this button combination for four seconds to restart the drive.
Moves the current display to the left page when is displayed at the upper right corner, for example
.
Moves the current display to the right page when is displayed at the lower right corner, for exam-
ple
.
BOP display
Display
Example
Description
Remarks
8.8.8.8.8.8.
Drive is in startup state Takes 20 s to 30 s
------
Drive is busy In the case of a task being executed
Fxxxxx
Fault code In the case of a single fault
