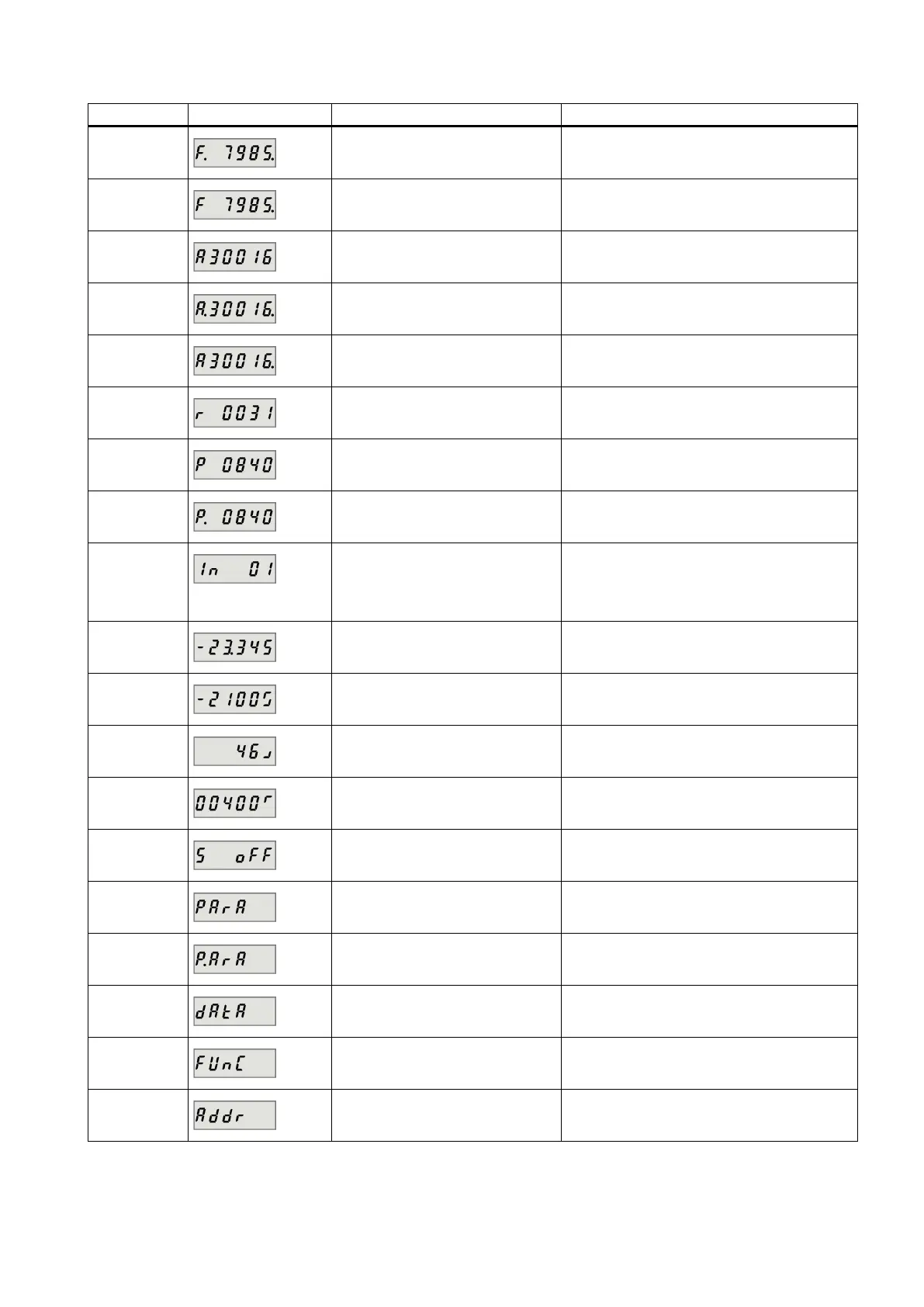

Display
Example
Description
Remarks
F.xxxxx.
Fault code of the first fault In the case of multiple faults
Fxxxxx.
Fault code In the case of multiple faults
Axxxxx
Alarm code In the case of a single alarm
A.xxxxx.
Alarm code of the first alarm In the case of multiple alarms
Axxxxx.
Alarm code In the case of multiple alarms
Rxxxxx
Parameter number Read-only parameter
Pxxxxx
Parameter number Editable parameter
P.xxxxx
Parameter number Editable parameter; the dot means that at
least one parameter has been changed
In xx
Indexed parameter Figure after "In" indicates the number of indi-
ces.
For example, "In 01" means that this indexed
parameter is 1.
xxx.xxx
Negative parameter value -
xxx.xx<>
Current display can be moved to
left or right
-
xxxx.xx>
Current display can be moved to
right
-
xxxx.xx<
Current display can be moved to
left
-
S Off
Operating display: servo off -
Para
Editable parameter group -
P.ara
Editable parameter group The dot means that at least one parameter
has been changed without saving
Data
Read-only parameter group -
Func
Function group See Section "Auxiliary functions (Page 448)".
Addr
Set Drive Bus address See Section "Setting Drive Bus address
(Page 449)".
