Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
63

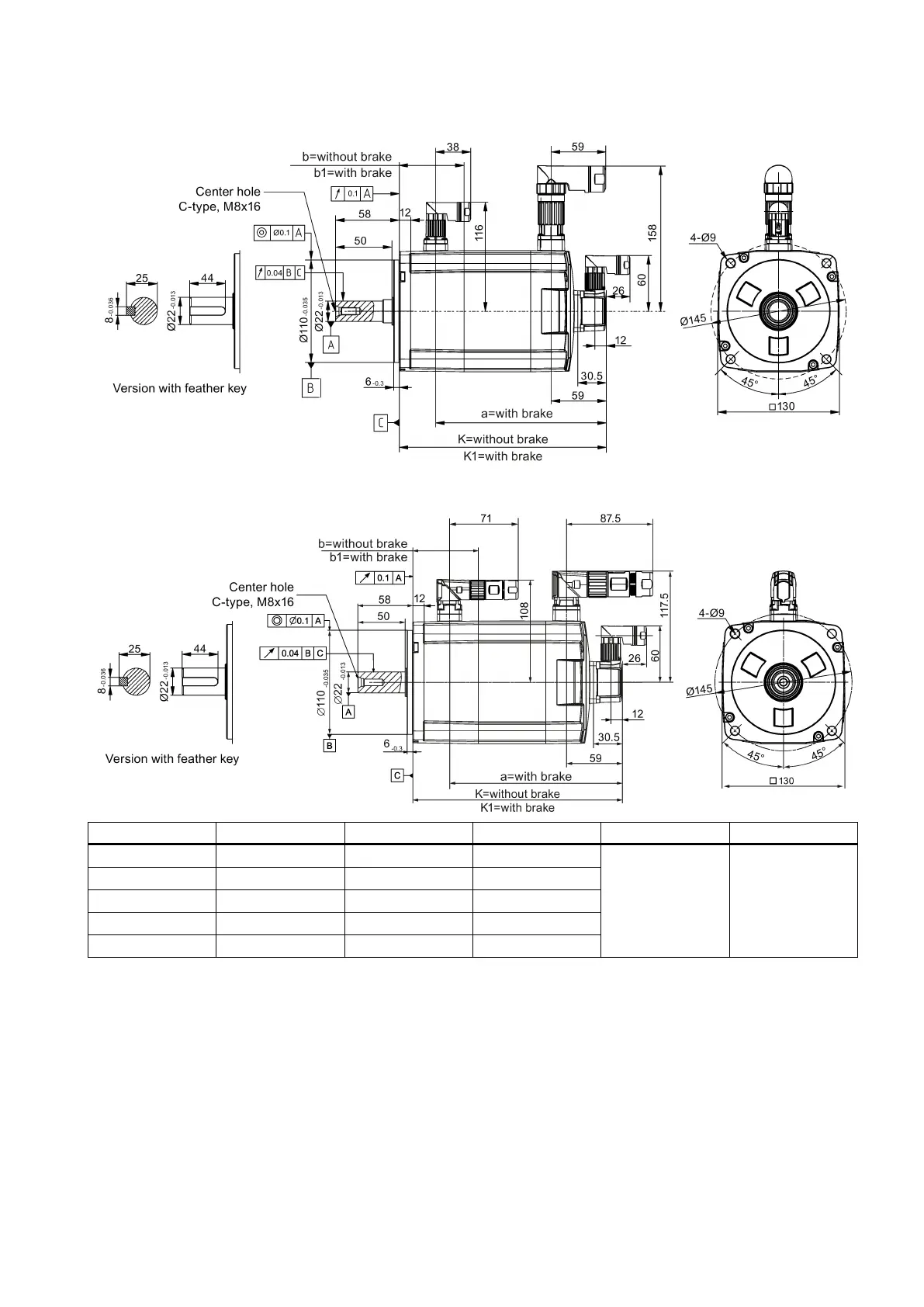

Shaft height 65 mm, with straight connectors and the absolute encoder
Shaft height 65 mm, with angular connectors and the absolute encoder
Stall torque
k
k1
a
b
b1
4 Nm
151
205.5
166
15 69.5
6 Nm
184
1)
/167.5
2)
222
1)
/164.5
2)
199
1)
/182.5
2)
8 Nm
184
238.5
199
11 Nm 217 271.5 232
15 Nm
250
304.5
265
1)
For the motor variants with straight connectors;
2)
For the motor variants with angular connectors.
