The total duration of the inhibit signal depends on which of the times T
Min Inhibit
or T
Restart
is longer.
Total Time T
Reclose
The total waiting time T
Reclose
before the motor can be restarted is therefore composed of the equilibrium time
and the time T
Restart
calculated from the thermal replica, and the value that is needed to drop below the limit
for restarting. If the calculated temperature rise of the rotor is above the restarting limit when the motor is
shut down, the minimum inhibit time will be started together with the equilibrium time.
Thus the total inhibit time T
Reclose
can become equal to the minimum inhibit time if it is longer than the sum of
the two first mentioned times:
T
Reclose
= T
Equal
+ T
Restart
for T
Min Inhibit
< T
Equal
+ T
Restart
T
Reclose
= T
Min Inhibit
for T
Min Inhibit
≥ T
Equal
+ T
Restart
, if the calculated exces-
sive temperature > restarting limit
The operational measured value 809 T
Reclose
(visible in the thermal measured values) is the remaining time
until the next restart is permissible. When the rotor excessive temperature is below the restarting limit and
thus the next restarting attempt is permitted, the operational measured value for the waiting time has
reached zero.
Extension of Cool Down Time Constants
In order to properly account for the reduced heat exchange when a self-ventilated motor is stopped, the cool
down time constants can be increased relative to the time constants for a running machine with the factor Kτ
at STOP (address 4308). The criterion for the motor stop is the undershooting of a set current threshold
BkrClosed I MIN. This understands that the motor idle current is greater than this threshold. The pickup
threshold BkrClosed I MIN affects also the thermal overload protective function (see Section 2.11 Thermal
Overload Protection 49).
While the motor is running, the heating of the thermal replica is modeled with the time constant τ
R
calculated
from the motor ratings, and the cool down calculated with the time constant τ
R
· Kτ at RUNNING (address
4309). In this way, the protection caters to the requirements in case of a slow cool down (slow temperature
equilibrium).
For calculation of the restarting time T
Restart
the following applies:

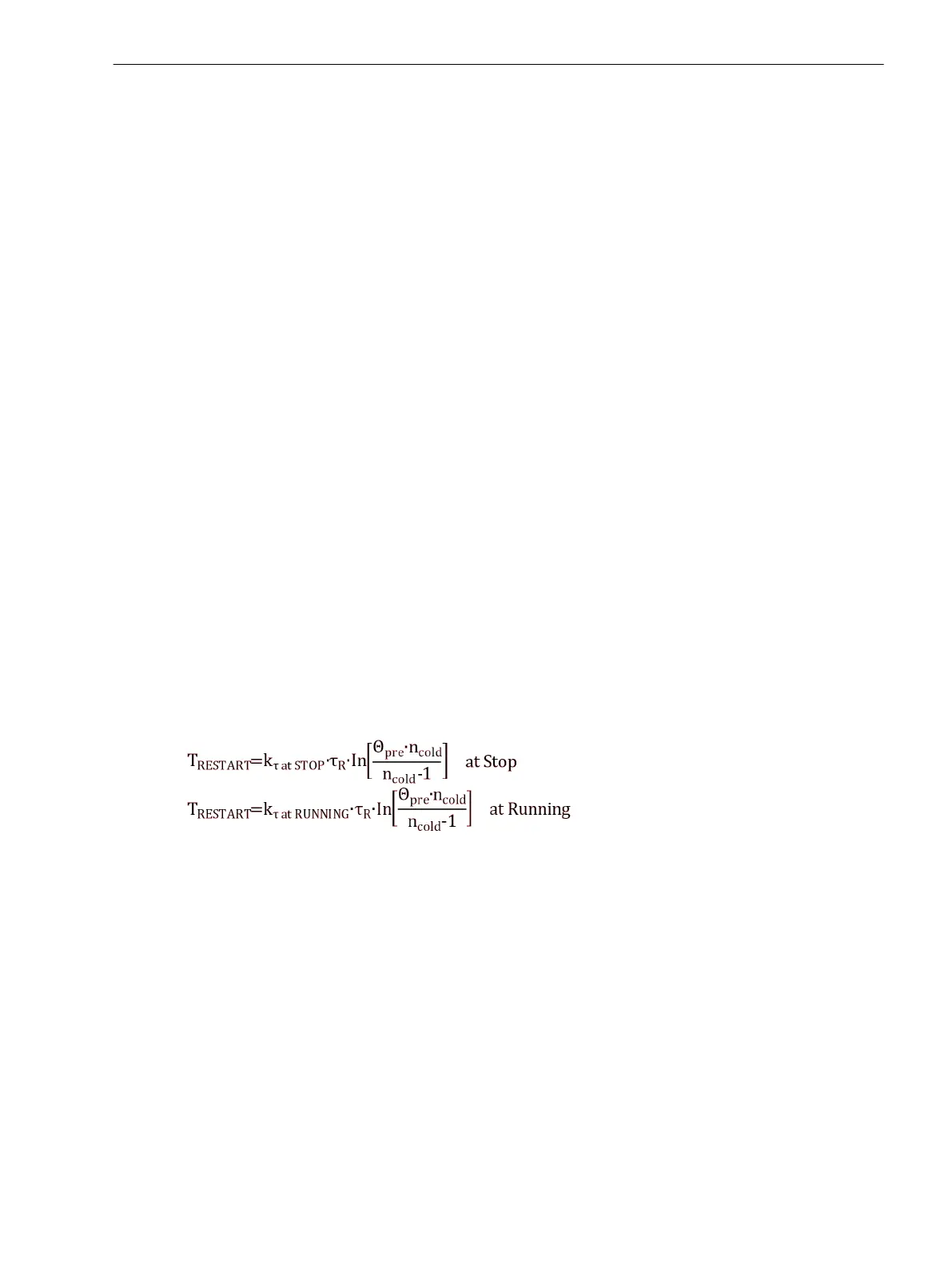

[fo_TWE, 1, en_US]
with
k
τ at STOP
Extension factor for the time constant = Kτ at STOP, address 4308
k
τ at RUNNING
Extension factor for the time constant = Kτ at RUNNING, address
4309
Θ
pre
thermal replica at the moment of motor shutdown (depending on
operational condition)
τ
R
Rotor time constant, calculated internallyτ
Behavior in Case of Power Supply Failure
Depending on the setting in address 235 ATEX100 of Power System Data 1 (see Section 2.1.3.2 Setting Notes)
the value of the thermal replica is either reset to zero (ATEX100 = NO) if the power supply voltage fails, or
cyclically buffered in a non-volatile memory (ATEX100 = YES) so that it is maintained in the event of auxiliary
supply voltage failure. In the latter case, when power supply is restored, the thermal replica uses the stored
value for calculation and matches it to the operating conditions. The first option is the default setting. For
Functions
2.8 Motor Protection
SIPROTEC 4, 7SJ62/64, Manual 151
C53000-G1140-C207-8, Edition 08.2016
