[front-gehaeuse-ein-o-frontkap-7sj647-20070320, 1, en_US]

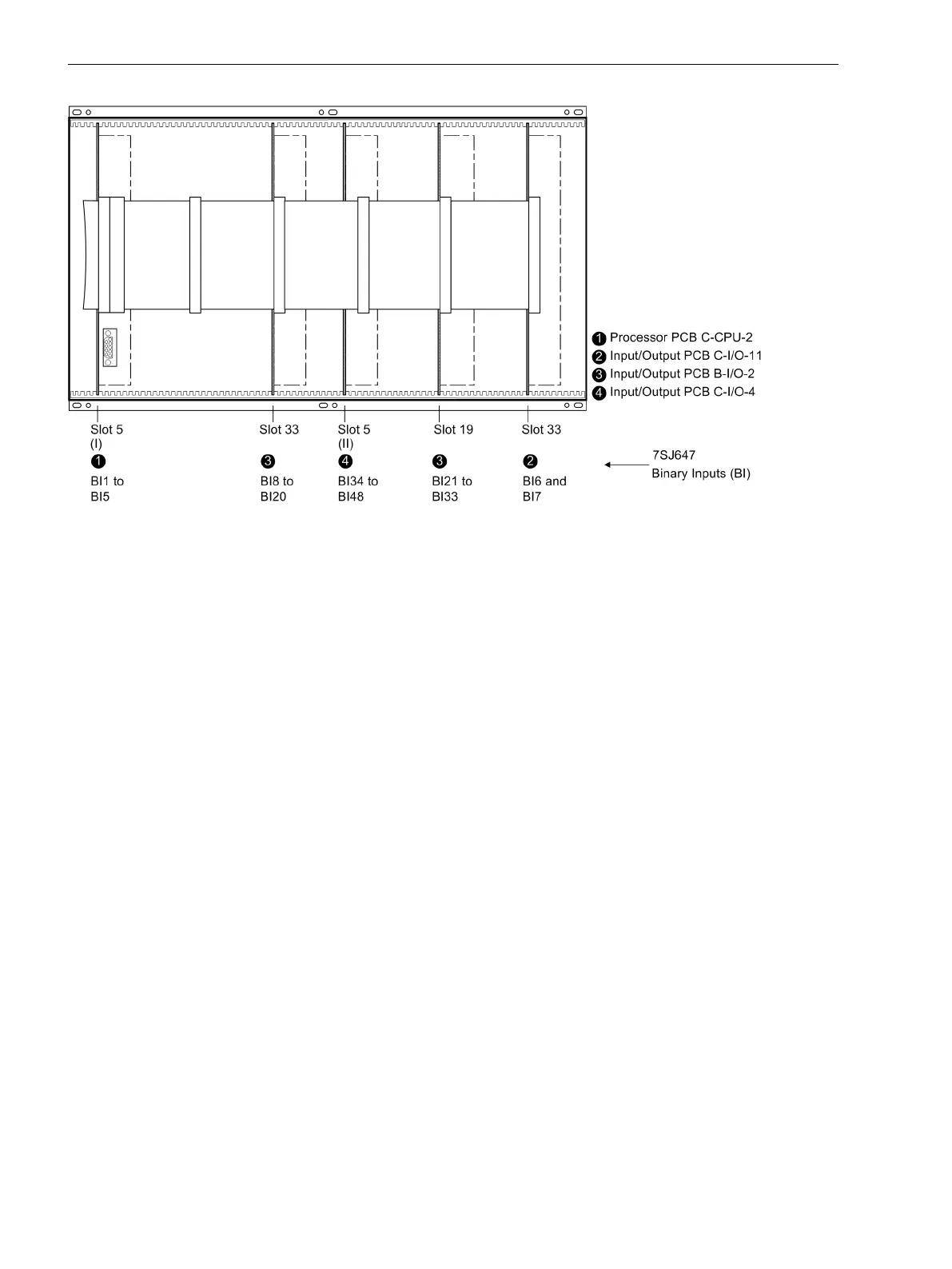

Figure 3-8
Front view of the 7SJ647 with housing size
1
/
1
after removal of the front cover (simplified and
scaled down)
Switching Elements on the Printed Circuit Boards of Device 7SJ62
Three different releases of the A–CPU board are available. They are shown in the following figures. The loca-
tion of the miniature fuse (F1) and of the buffer battery (G1) are also shown in the following figures.
3.1.2.3
