7SJ64 — Housing with Detached Operator Panel
7SJ641*-*A/C
[aufbaumitbedien-7sj641-a-c-070602-kn, 1, en_US]

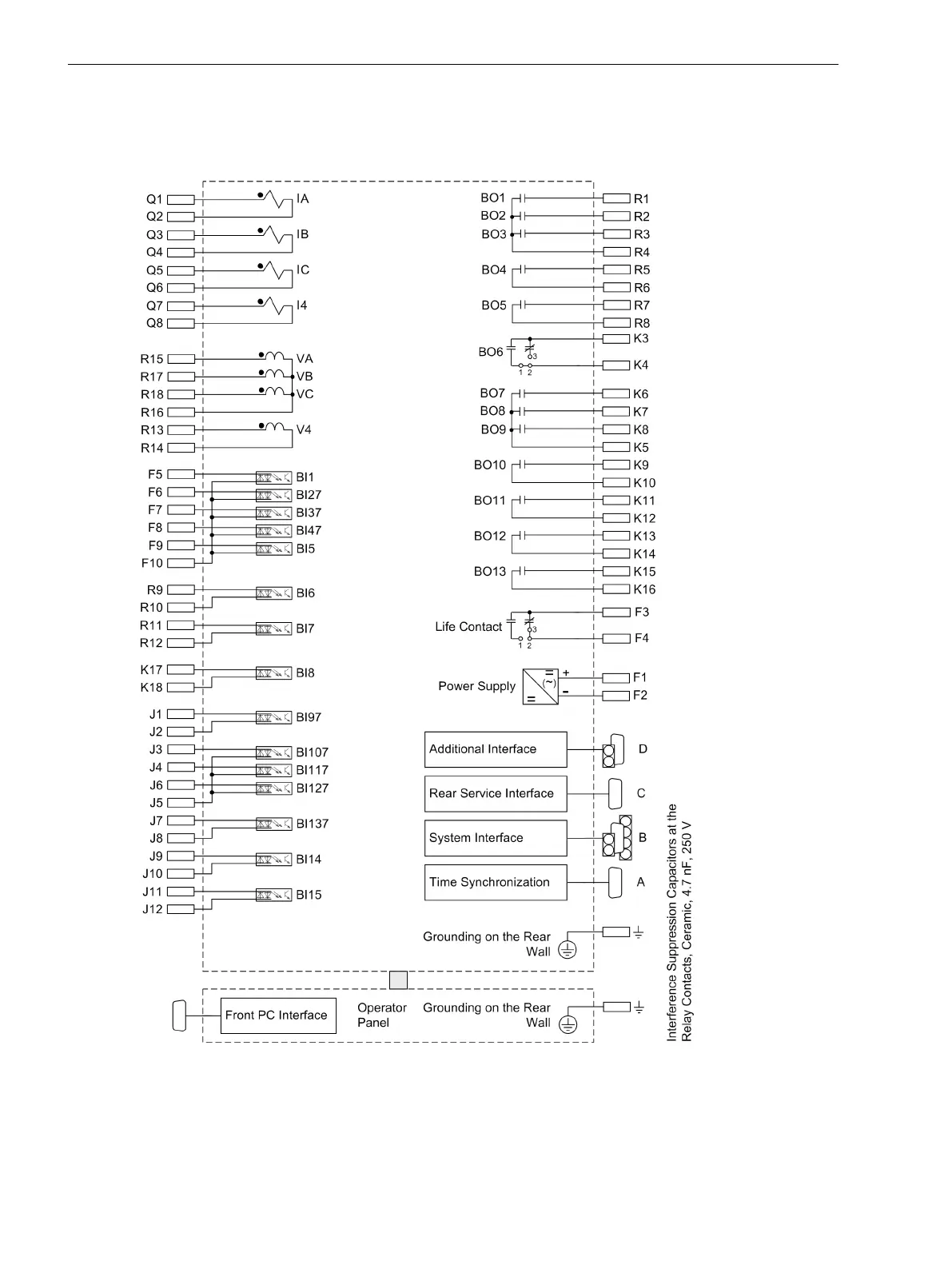

Figure B-25
General diagram 7SJ641*–*A/C (panel surface mounting with detached operator panel)
B.6
Terminal Assignments
B.6 7SJ64 — Housing with Detached Operator Panel
566 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
