Detached Operator Panel
[abmess-abg-bedien-7sj63-64-170502-wlk, 1, en_US]

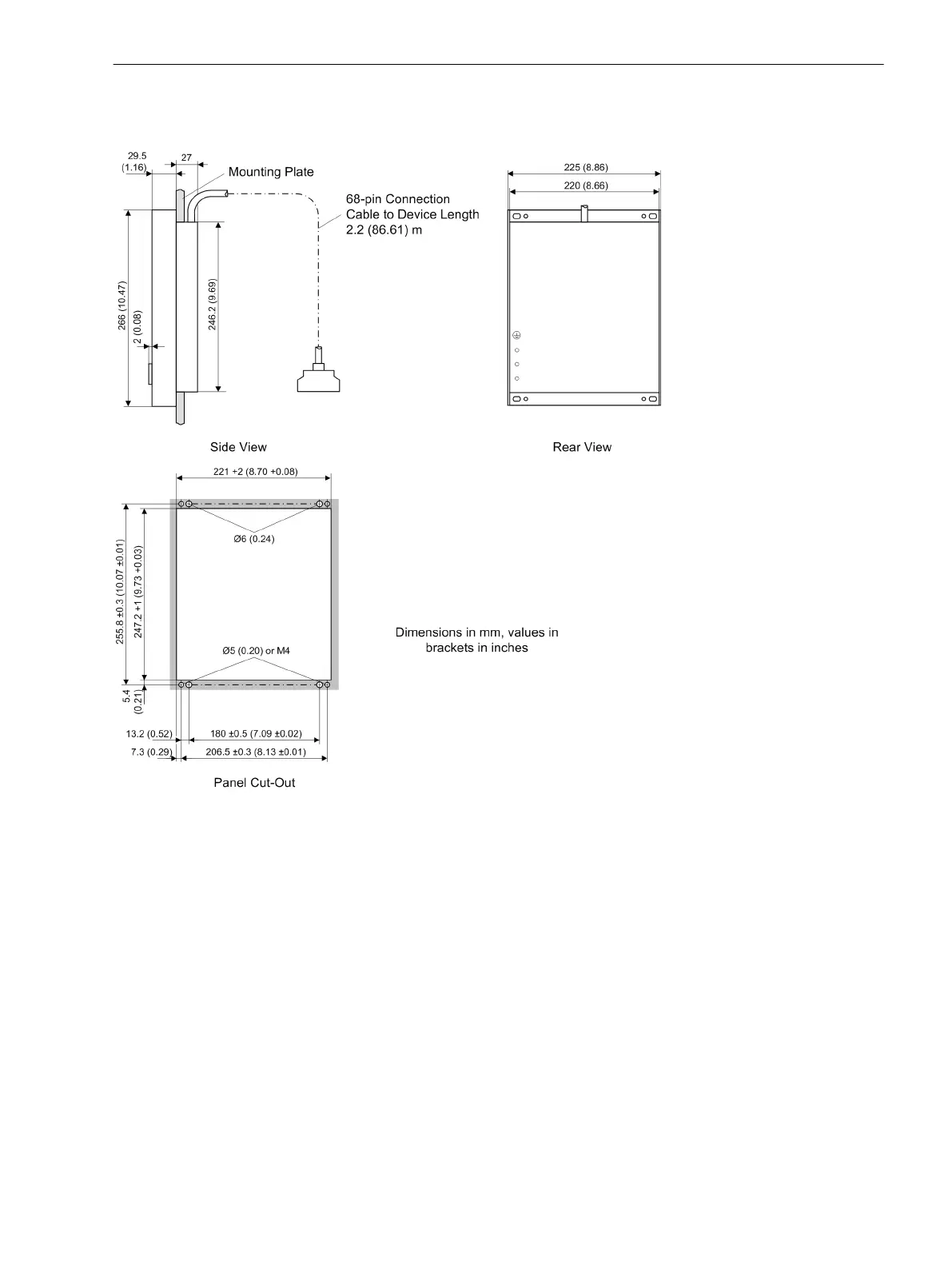

Figure 4-21
Dimensions of a detached operator panel for a 7SJ64 device
4.29.9
Technical Data
4.29 Dimensions
SIPROTEC 4, 7SJ62/64, Manual 523
C53000-G1140-C207-8, Edition 08.2016
