Connection Example for RTD Box
[7sjx-halbduplex-1-thermobox-070602-kn, 1, en_US]

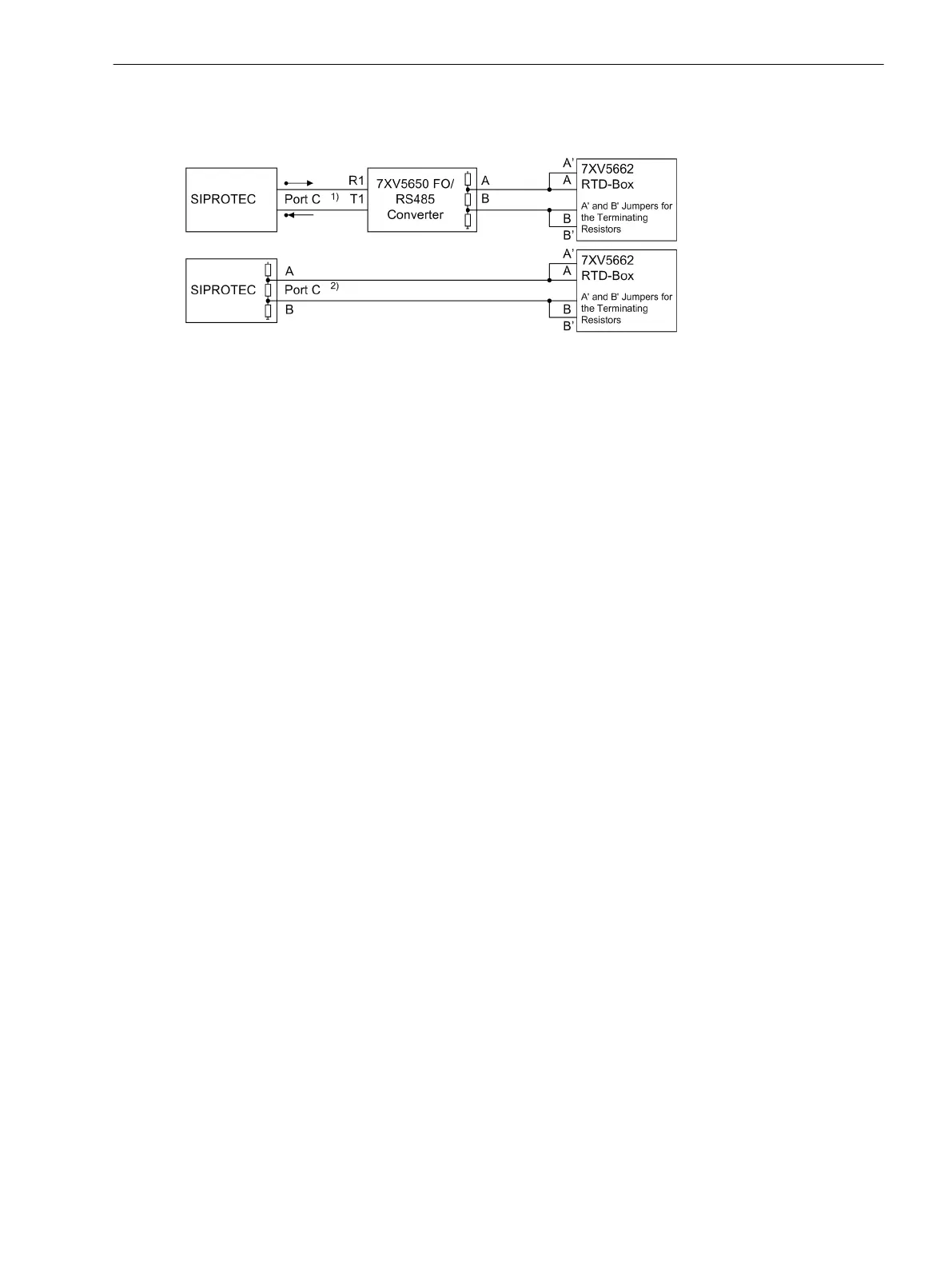

Figure C-20 Half-duplex operation with one RTD-Box, above: optical design (2 FOs); below: design with RS
485 (RS485 cable 7XV5103-7AAxx)
1) for 7SJ64 port D
2) for 7SJ64 optionally port C or port D
C.5
Connection Examples
C.5 Connection Example for RTD Box
SIPROTEC 4, 7SJ62/64, Manual 593
C53000-G1140-C207-8, Edition 08.2016
