Connection example for high-impedance ground fault differential
protection
[hochimpedanz-trafowgeerdet-240204-he, 1, en_US]

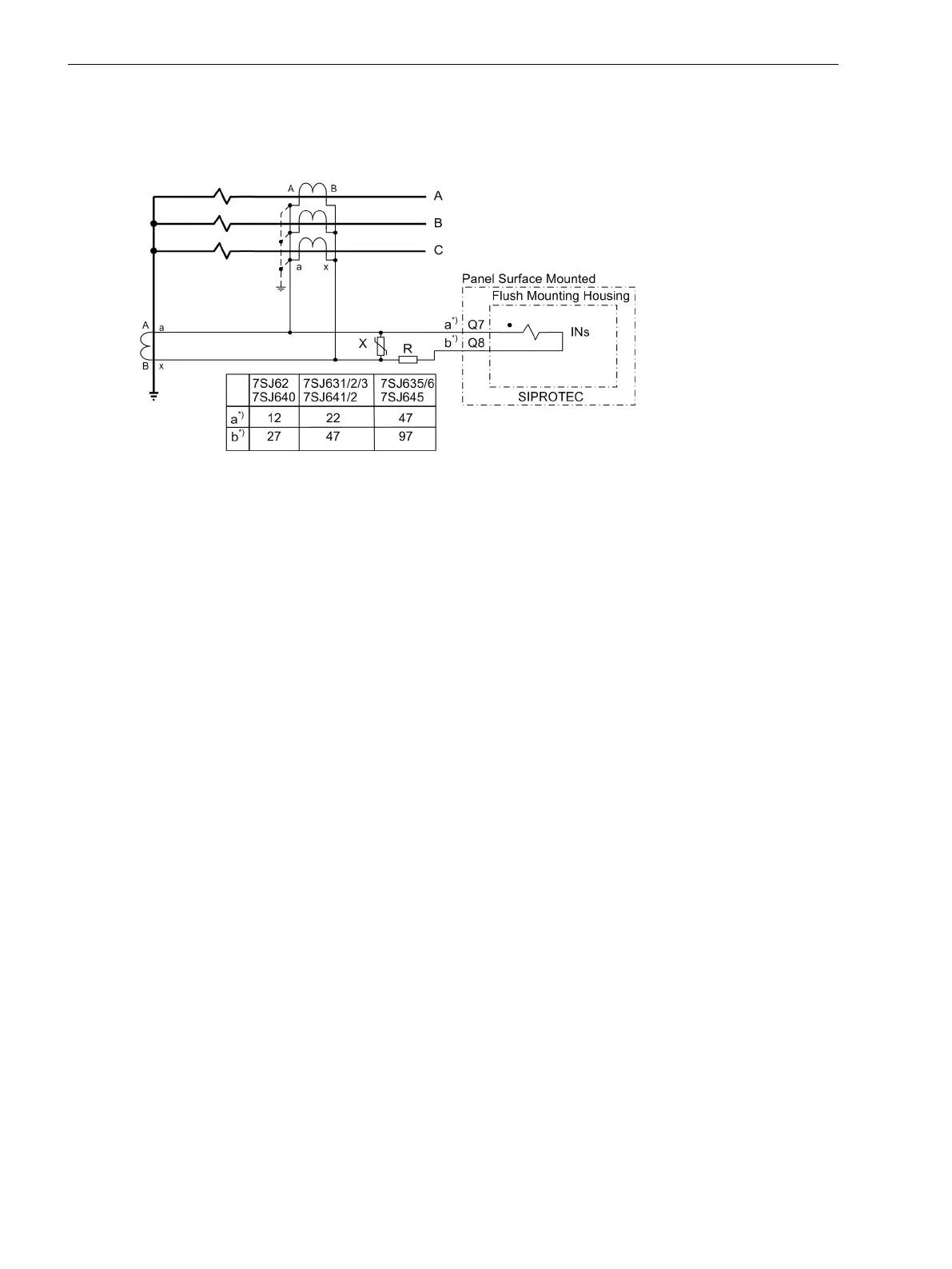

Figure C-19 High-impedance differential protection for a grounded transformer winding (showing the
partial connection for the high-impedance differential protection)
C.4
Connection Examples
C.4 Connection example for high-impedance ground fault differential protection
592 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
