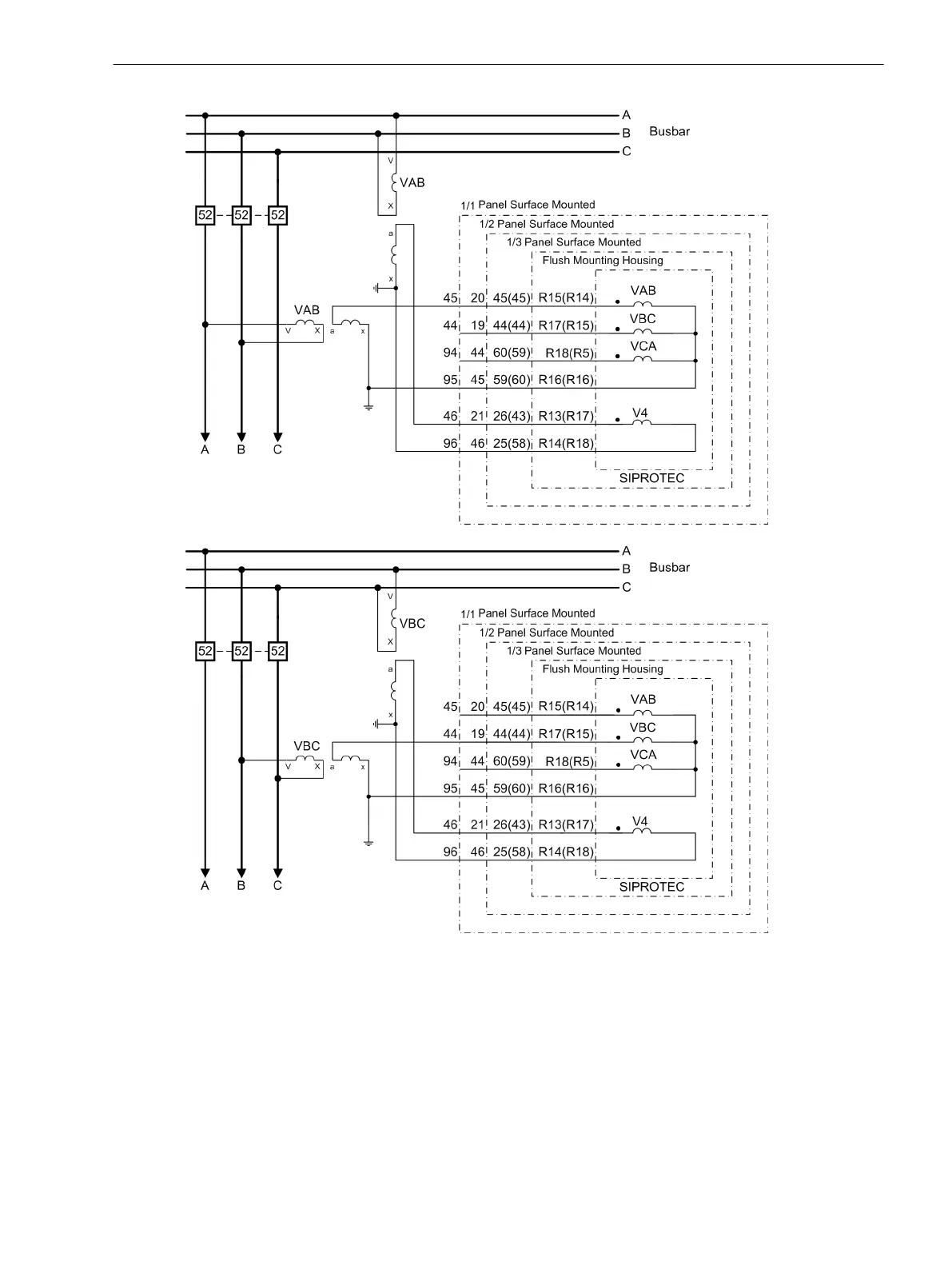

Figure C-18
Connection circuit for single-phase voltage transformers with phase-to-phase voltages
The terminal markings in brackets apply to the devices 7SJ623/4/5/6, the remaining to devices 7SJ64
Connection Examples
C.3 Connection Examples Voltage Transformers 7SJ623, 7SJ624, 7SJ625, 7SJ626, 7SJ64
SIPROTEC 4, 7SJ62/64, Manual 591
C53000-G1140-C207-8, Edition 08.2016
