Siemens SIPROTEC 4 - Panel Surface Mounting (Housing Size 1; 1 )

Panel Surface Mounting (Housing Size
1
/
1
)
[abmess-aufbau-ein-gehaeuse-7sj63-64-170502-wlk, 1, en_US]

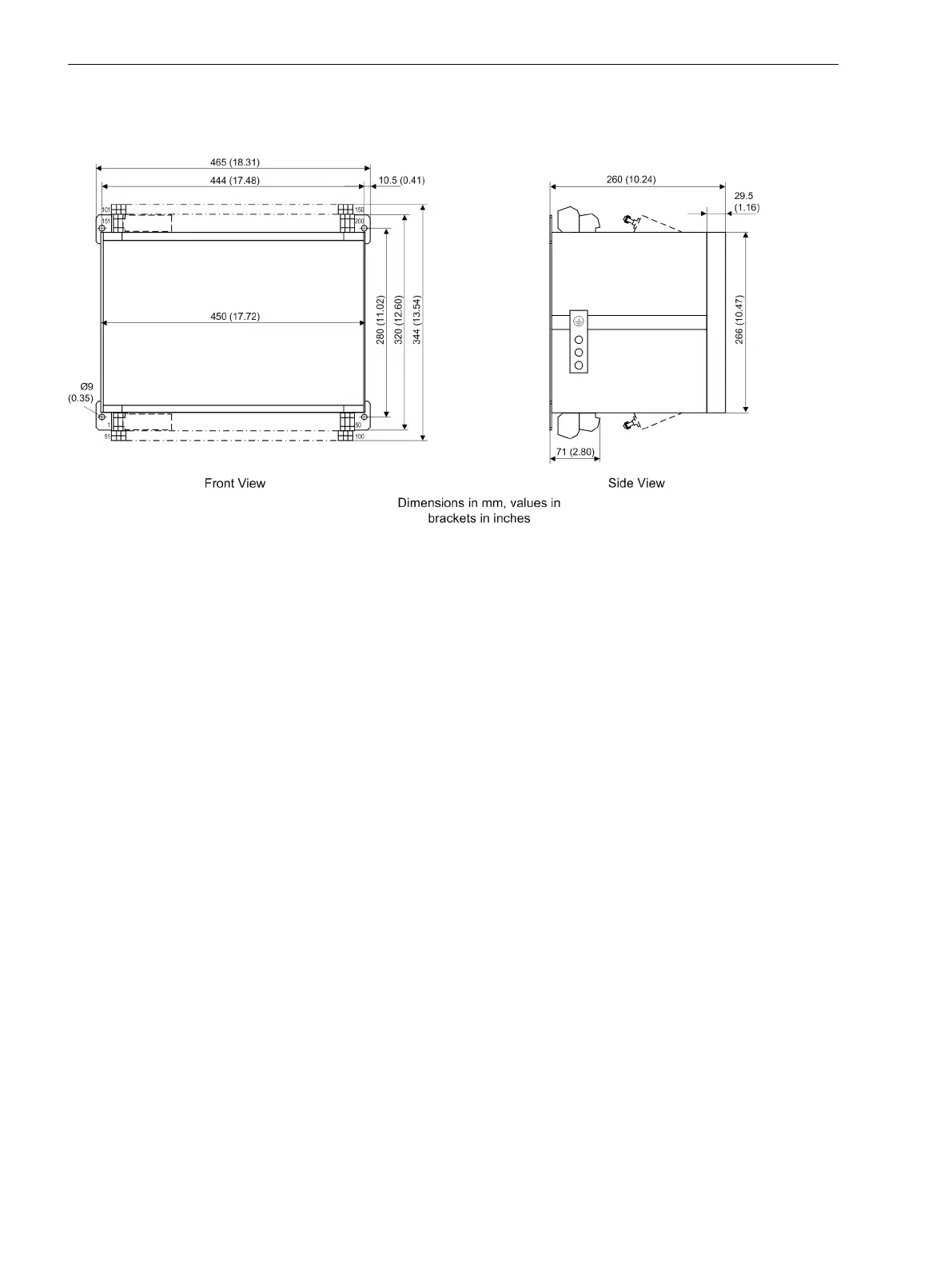

Figure 4-18
Dimensional drawing of a 7SJ64 for panel flush mounting (housing size
1
/
1
)
4.29.6
Technical Data
4.29 Dimensions
520 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
