Siemens SIPROTEC 4 - Panel Surface Mounting; Panel Surface Mounting (Housing Size; ); Panel Surface Mounting (Housing Size 1; 2 )

Panel Surface Mounting (Housing Size
1
/
3
)
[abmess-aufbau-drittel-gehaeuse-7sj62-64-170502-wlk, 1, en_US]

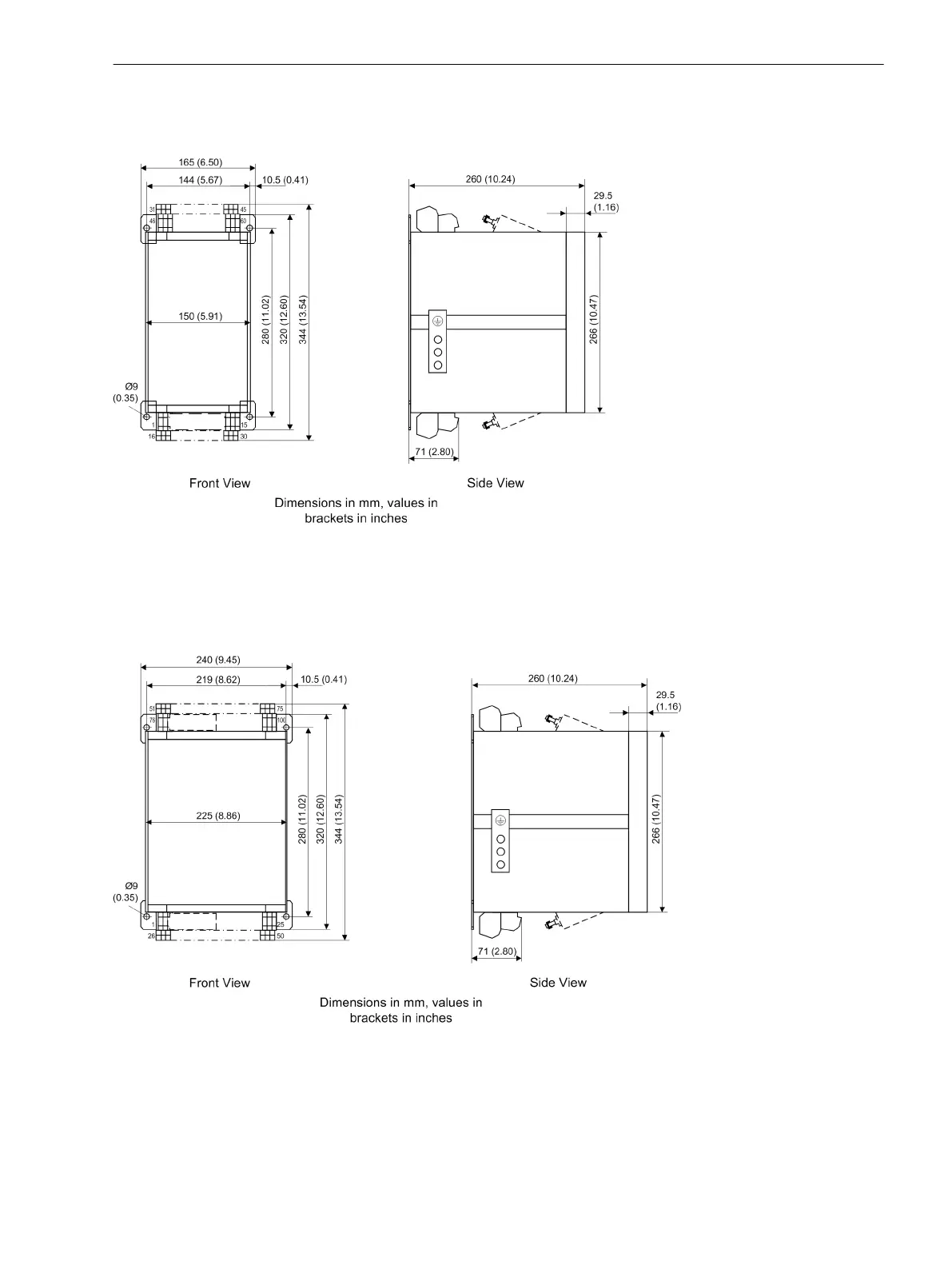

Figure 4-16
Dimensional drawing of a 7SJ62 or 7SJ64 for panel flush mounting (housing size
1
/
3
)
Panel Surface Mounting (Housing Size
1
/
2
)
[abmess-aufbau-halb-gehaeuse-7sj63-64-170502-wlk, 1, en_US]
Figure 4-17
Dimensional drawing of a 7SJ62 or 7SJ64 for panel flush mounting (housing size
1
/
2
)
4.29.4
4.29.5
Technical Data
4.29 Dimensions
SIPROTEC 4, 7SJ62/64, Manual 519
C53000-G1140-C207-8, Edition 08.2016
