Default Display
In devices with 4-line displays and depending on the device version, a number of predefined measured value
pages are available. The start page of the default display appearing after startup of the device can be selected
in the device data via parameter 640 Start image DD.
In devices with graphic display, there is a default display indicating the actual operating state and/or selected
measured values. The display size is selected during configuration.

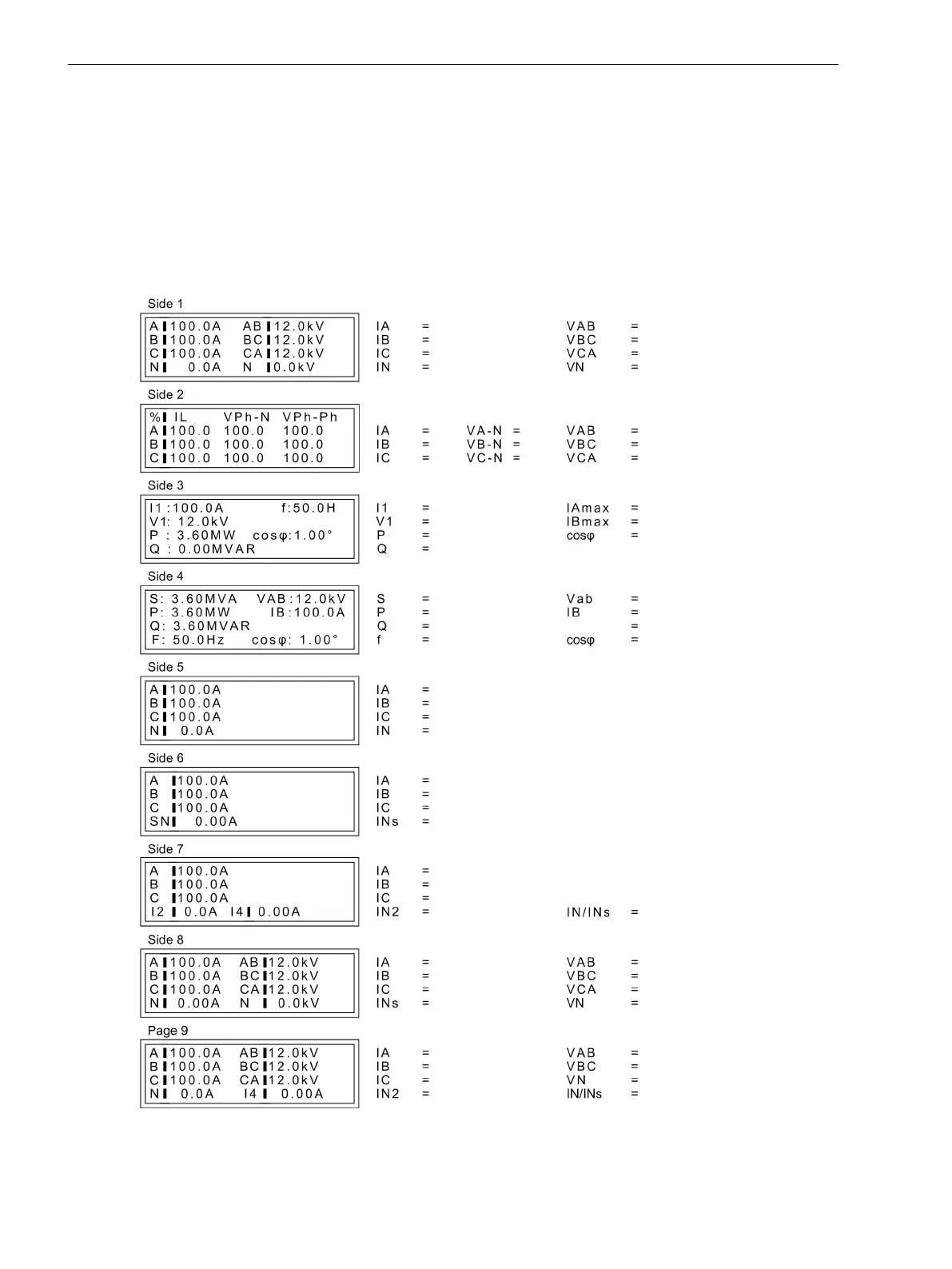

for the 4-line Display of 7SJ62
[grundbild7sj62-ohne-erweiterung-0o1-060627, 1, en_US]
Figure E-1
Default display of 7SJ62 for models without extended measured values (13th digit of MLFB = 0
or 1)
E.5
Default Settings and Protocol-dependent Functions
E.5 Default Display
604 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
