D-Subminiature Connector of Dongle Cable (Panel Flush or Cubicle Door
Cutout)
[abmess-aus-dsub-dongl-7sj63-64-o-bedien-170502-wlk, 1, en_US]

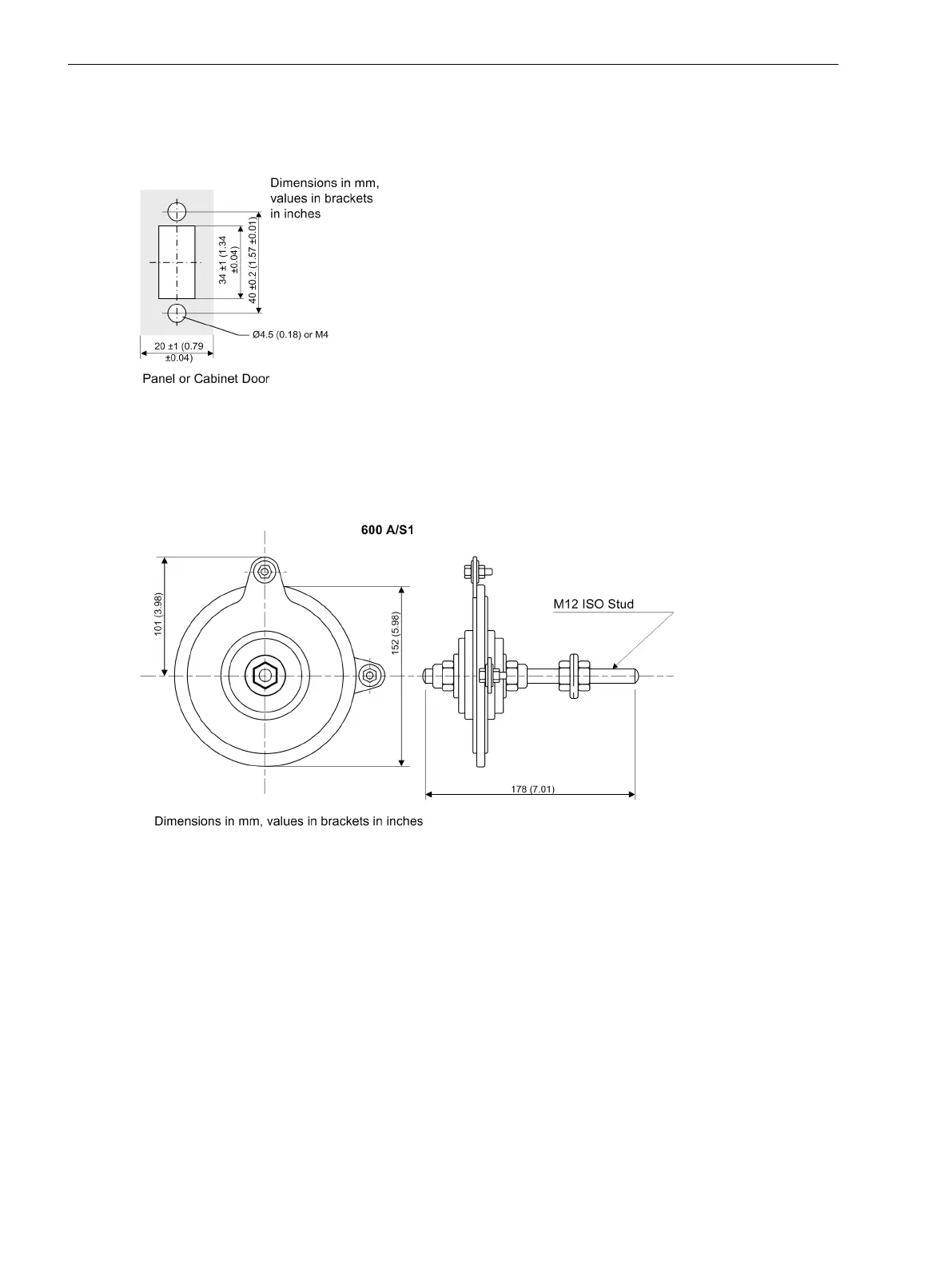

Figure 4-22 Dimensions of panel flush or cubicle door cutout of D-SUB miniature connector of dongle
cable for a 7SJ64 device without integrated operator panel
Varistor
[varistor-20071105, 1, en_US]
Figure 4-23 Dimensional drawing of the varistor for voltage limiting in high-impedance differential protec-
tion
4.29.10
4.29.11
Technical Data
4.29 Dimensions
524 SIPROTEC 4, 7SJ62/64, Manual
