7SJ64 — Housing for Panel Surface Mounting
7SJ640*-*B
[schalttafelaufbau-7sj640-b-070602-kn, 1, en_US]

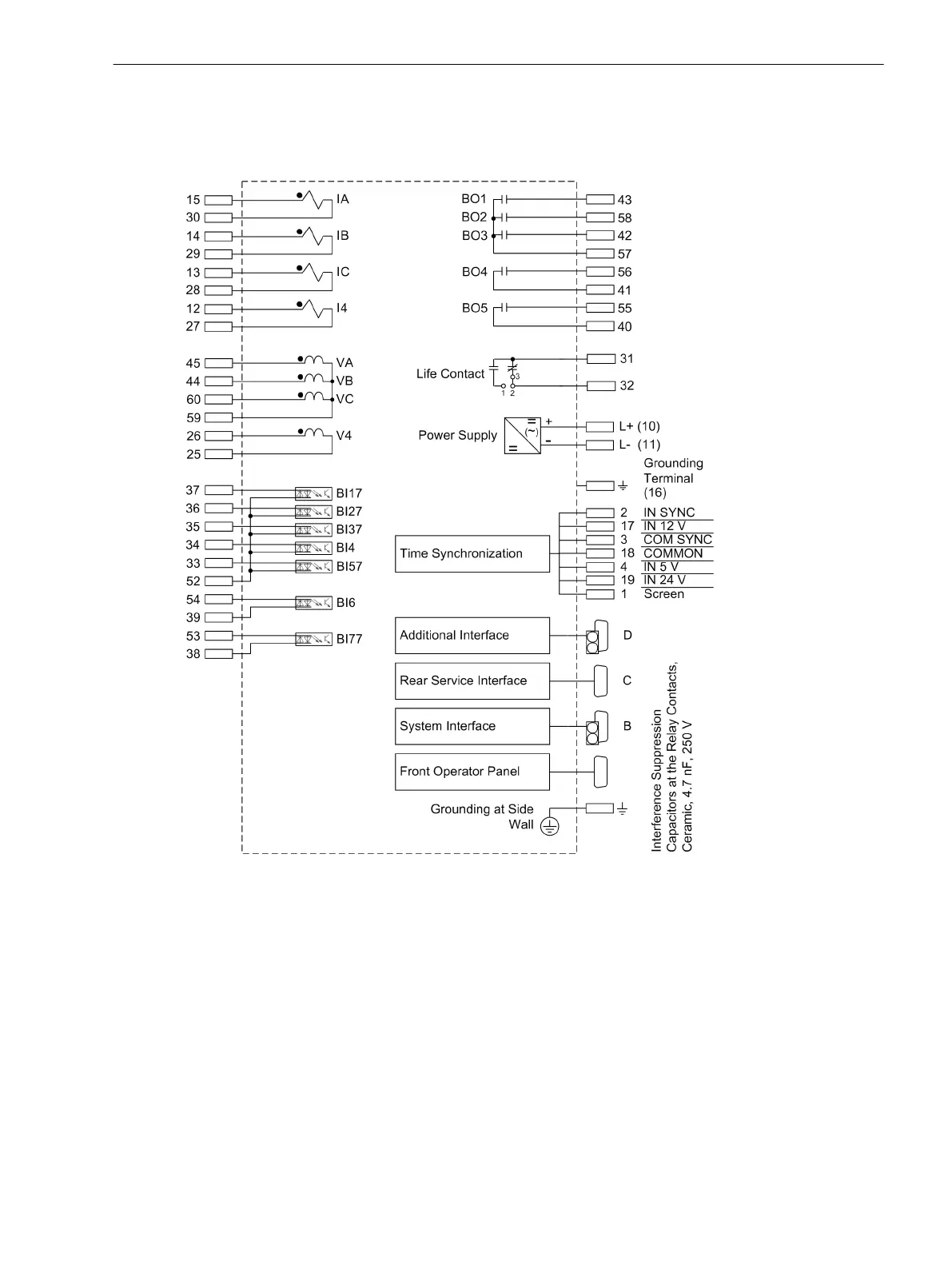

Figure B-18
General diagram for 7SJ640*–*B (panel surface mounted)
B.5
Terminal Assignments
B.5 7SJ64 — Housing for Panel Surface Mounting
SIPROTEC 4, 7SJ62/64, Manual 559
C53000-G1140-C207-8, Edition 08.2016
