7SJ647*-*D/E

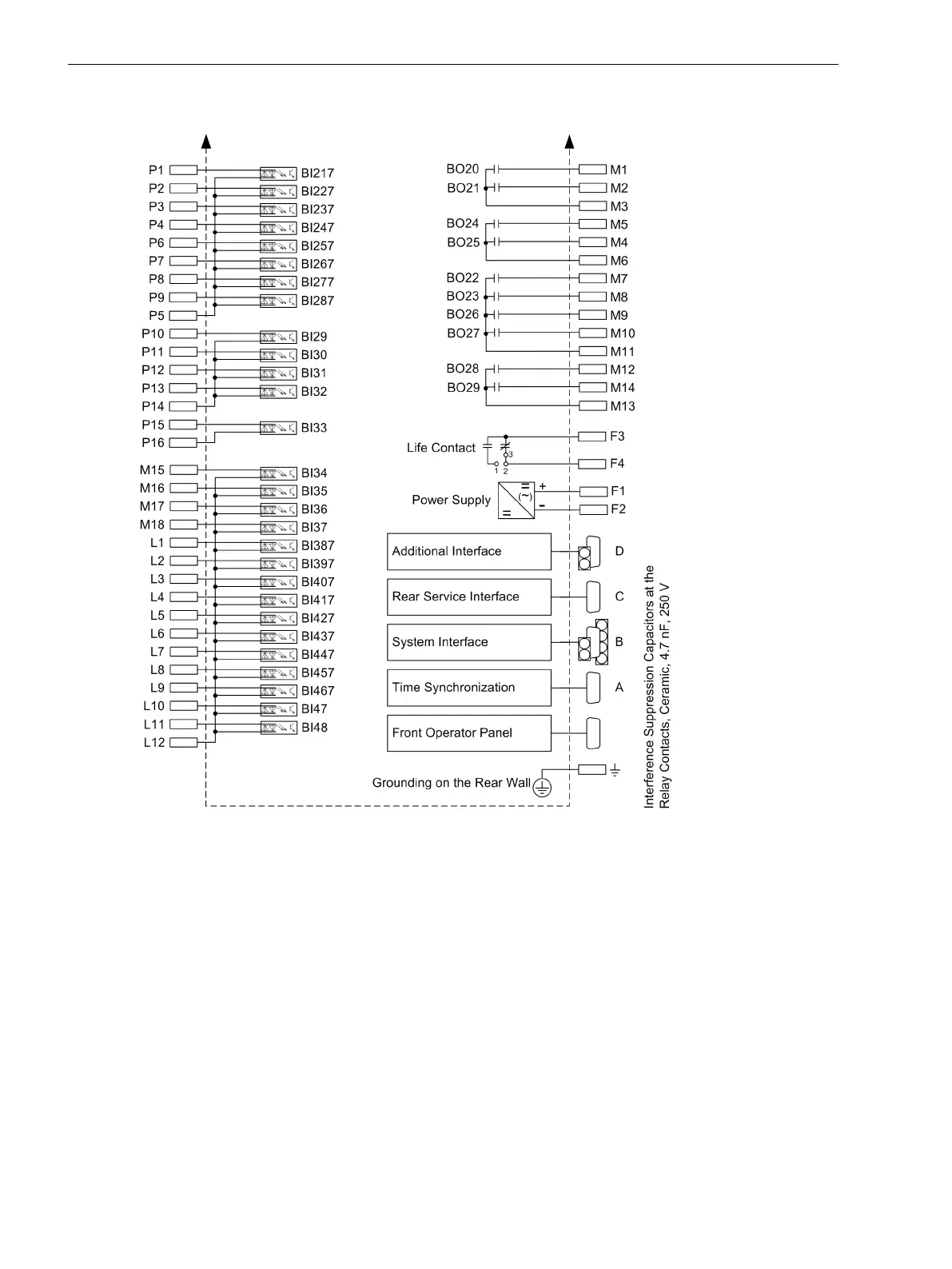

[7sj647-connection-diagram-teil2, 1, en_US]
Figure B-17
Connection diagram for 7SJ647*–*D/E (panel flush mounted or cubicle mounted; part 2)
Terminal Assignments
B.4 7SJ64 — Housing for Panel Flush Mounting or Cubicle Installation
558 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
