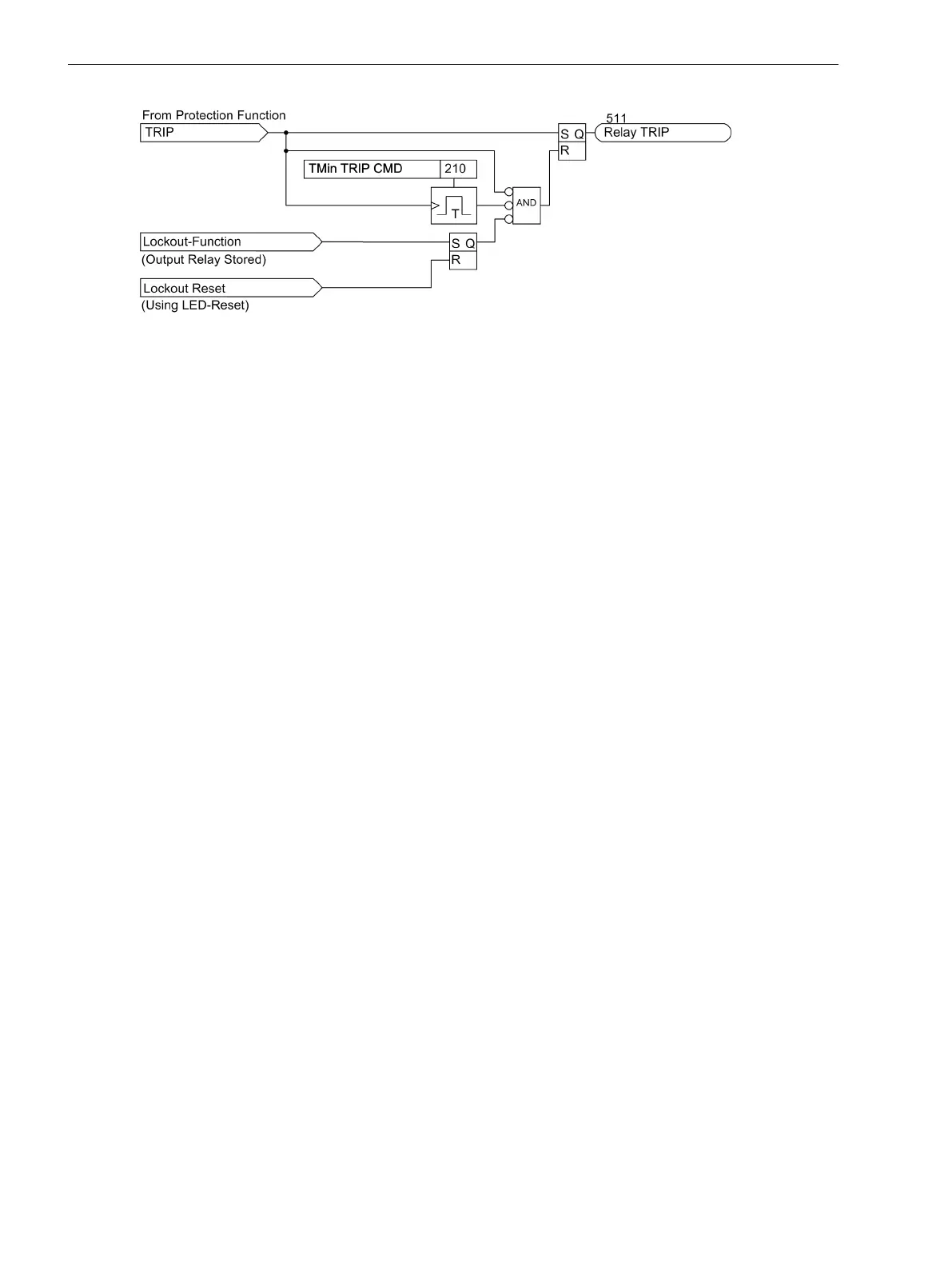

Figure 2-136 Terminating the Trip Signal
Setting Notes
Trip Signal Duration
The minimum trip command duration TMin TRIP CMD was described already in Section 2.1.3 Power System
Data 1. This setting applies to all protective functions that initiate tripping.
2.24.3
Functions
2.24 Function Logic
316 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
