7SJ642*-*A/C
[aufbaumitbedien-7sj642-a-c-070602-kn, 1, en_US]

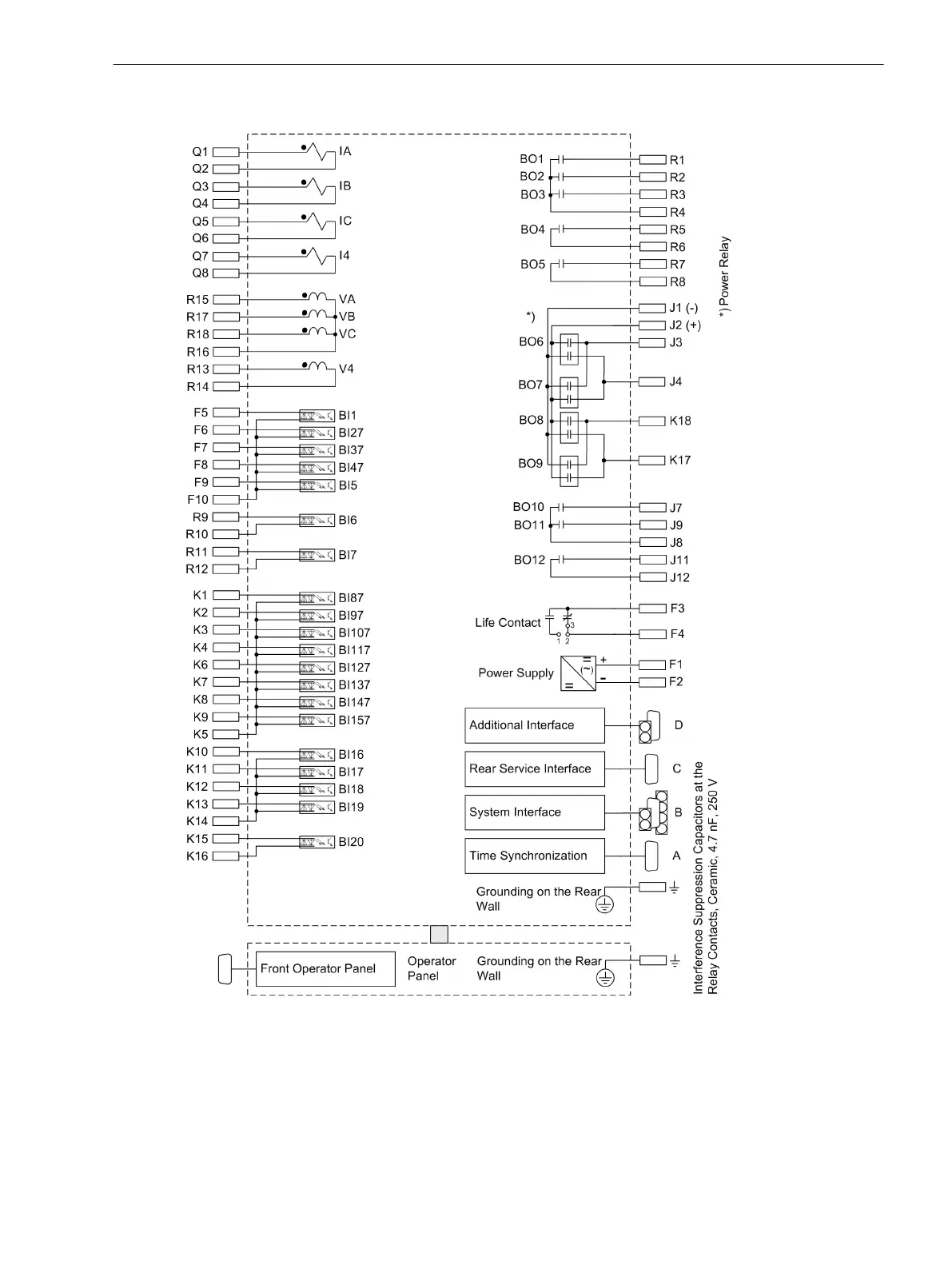

Figure B-26
General diagram 7SJ642*–*A/C (panel surface mounting with detached operator panel)
Terminal Assignments
B.6 7SJ64 — Housing with Detached Operator Panel
SIPROTEC 4, 7SJ62/64, Manual 567
C53000-G1140-C207-8, Edition 08.2016
