[frontansicht-geh-einhalb-o-frontkappe7sj64-160502-wlk, 1, en_US]

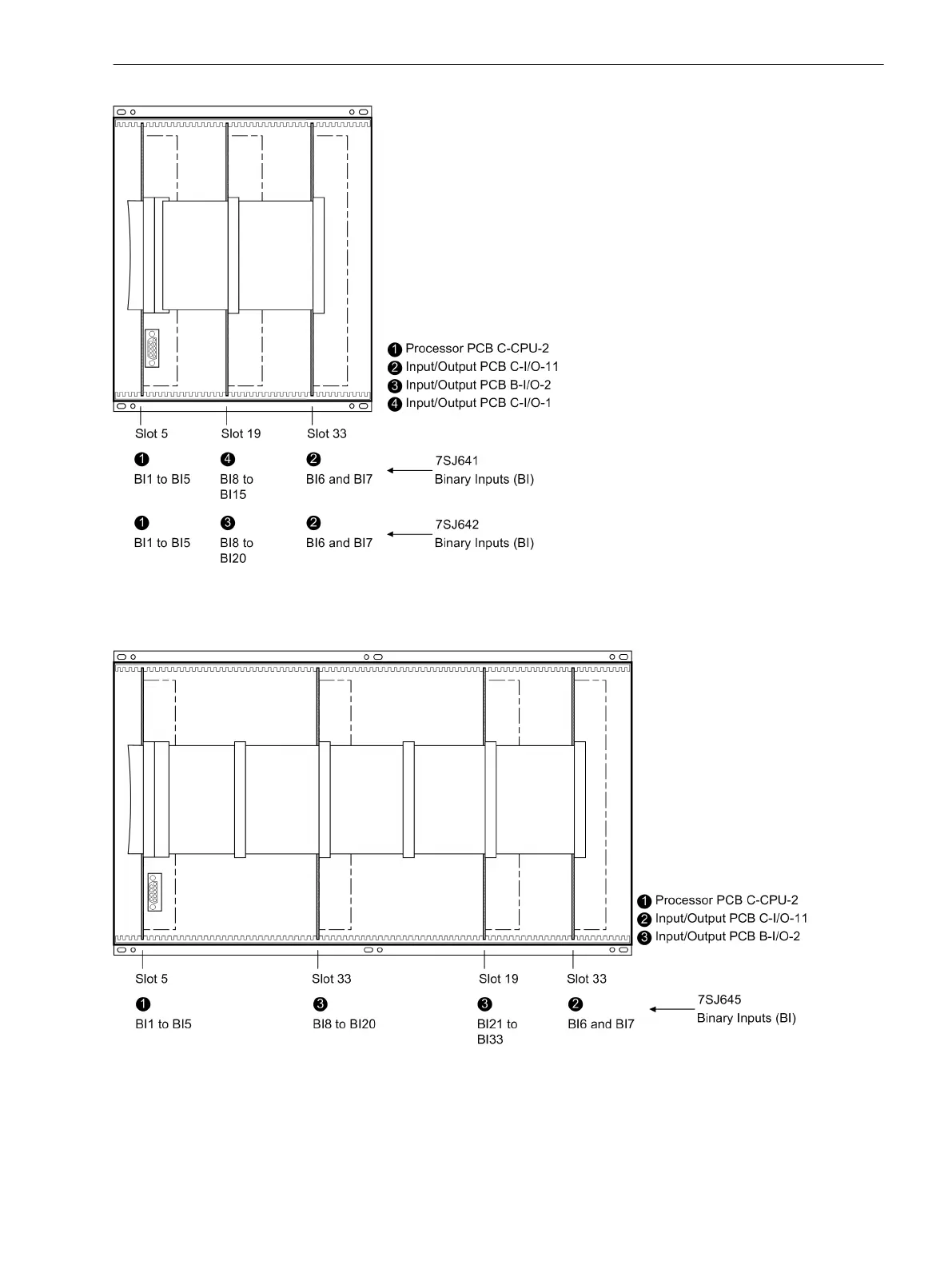

Figure 3-6
Front view of the 7SJ64 with housing size
1
/
2
after removal of the front cover (simplified and
scaled down)
[frontansicht-gehaeuse-ein-o-frontkappe7sj645-160502-wlk, 1, en_US]
Figure 3-7
Front view of the 7SJ645 with housing size
1
/
1
after removal of the front cover (simplified and
scaled down)
Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC 4, 7SJ62/64, Manual 375
C53000-G1140-C207-8, Edition 08.2016
