Processor Board A–CPU 7SJ62.../DD
[prozbgr-a-cpu-geraetebises-dd-160502-wlk, 1, en_US]

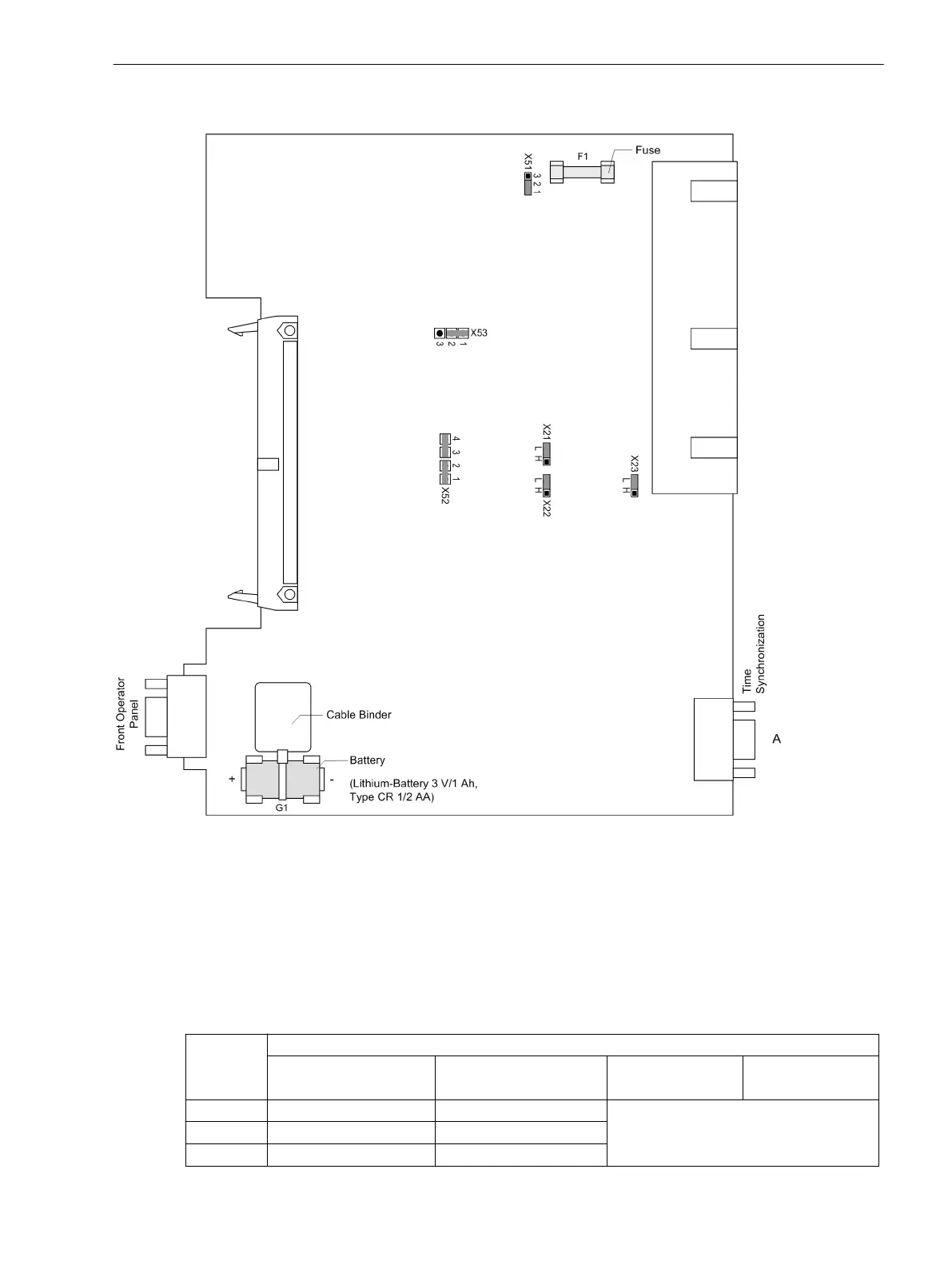

Figure 3-9
Processor printed circuit board A–CPU for devices up to release .../DD with jumpers settings
required for the board configuration
The provided nominal voltage of the integrated power supply is checked according to Table 3-2, and the
selected pickup voltages of the binary inputs BI1 to BI3 according to Table 3-3.
Power Supply
Table 3-2
Jumper settings for the nominal voltage of the integrated power supply on the processor
board A–CPU to 7SJ62.../DD
Jumper Rated Voltage
DC 60 V to 125 V DC 110 V to 250 V,
AC 115 V
DC 24 V/ 48 V AC 230 V
X51 1-2 2-3
Jumpers X51 to X53 are not usedX52 1-2 and 3-4 2-3
X53 1-2 2-3
Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC 4, 7SJ62/64, Manual 377
C53000-G1140-C207-8, Edition 08.2016
