[7sj80-erdfehler-ue-cos-sin-20061206, 1, en_US]

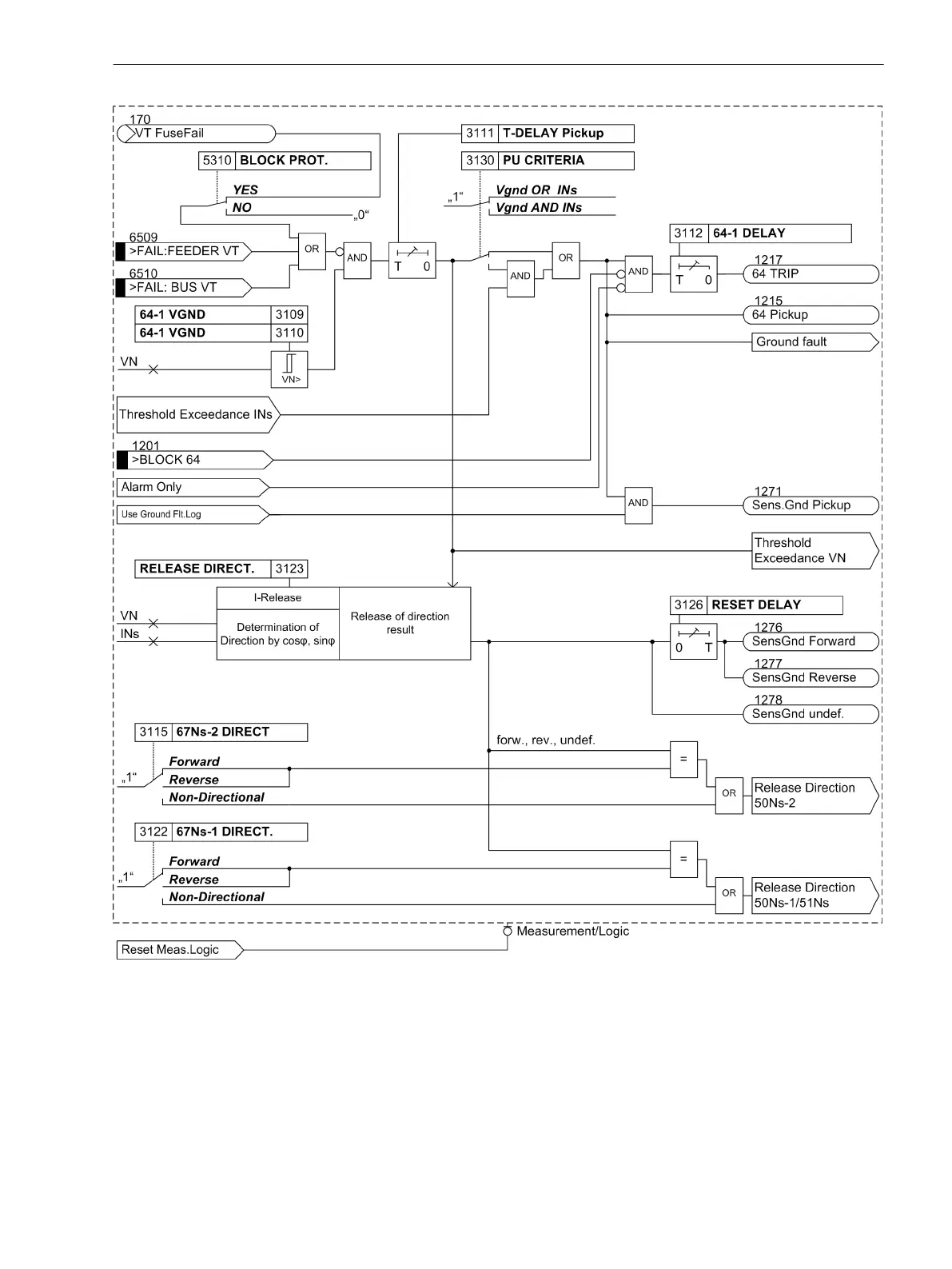

Figure 2-85
Logic diagram of the V
0
> element for cos-φ -/sin-φ measurement
Functions
2.13 Ground Fault Protection 64, 67N(s), 50N(s), 51N(s)
SIPROTEC 4, 7SJ62/64, Manual 205
C53000-G1140-C207-8, Edition 08.2016
