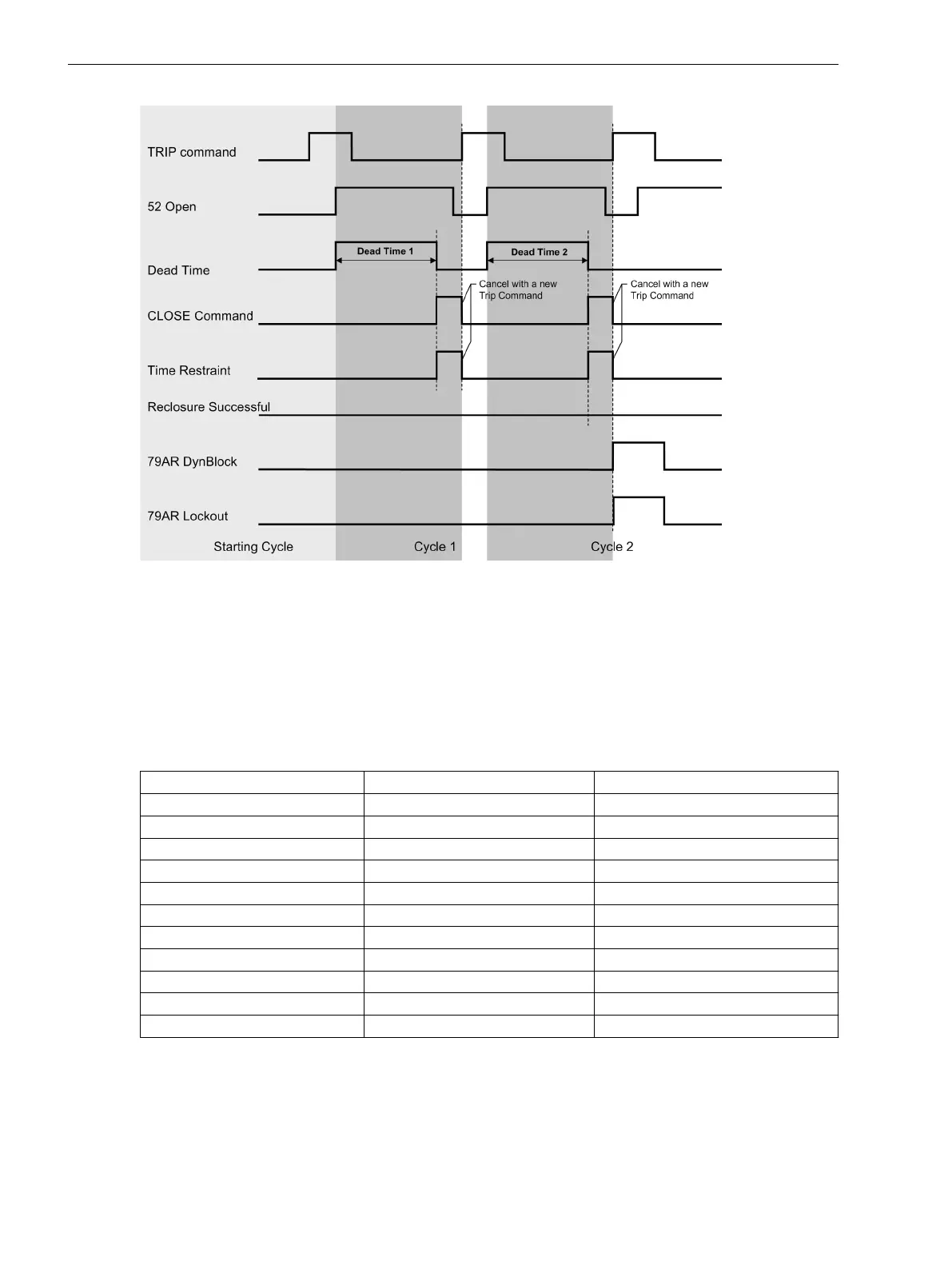

Figure 2-103
Timing diagram showing two unsuccessful reclosing shots
Initiation
Initiation of the automatic reclosing function can be caused by internal protection functions or externally via
binary inputs. The automatic reclosing function can be programmed in such manner that any of the elements
of the following Table can initiate (Starts 79), not initiate (No influence), or block reclosing (Stops
79):
Table 2-18
Initiating automatic reclosure
Non-directional start Directional start Start other
50-1 67-1 Negative Sequence Protection 46
50N-1 67N-1 BINARY INPUT
50-2 67-2
50-3 67-3
50N-2 67N-2
50N-3 67N-3
51 67-TOC
51N 67N-TOC
67Ns-1
67Ns-2
67Ns-TOC
On initiation, the automatic reclosure function is informed that a trip command was issued and the respective
reclosing program is now being executed.
The binary input messages 2715
>Start 79 Gnd
and 2716
>Start 79 Ph
for starting an automatic reclo-
sure program can also be activated via CFC (fast PLC task processing). Automatic reclosure can thus be initi-
ated via any messages (e.g. protective pickup) if address 7164 BINARY INPUTis set to Starts 79.
Functions
2.16 Automatic Reclosing System 79
238 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
