[web-betriebsmeldung-040402-ro, 1, en_US]

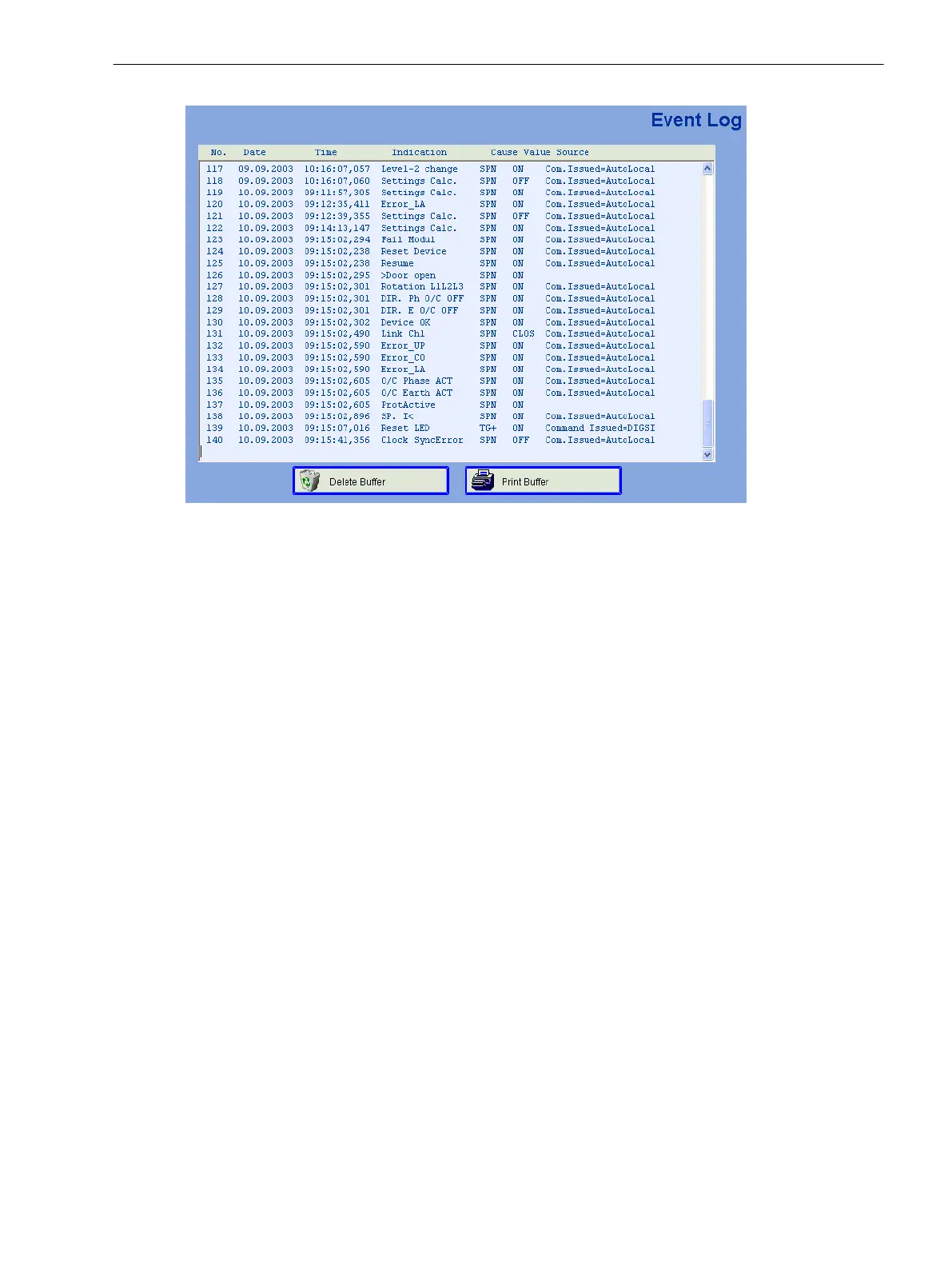

Figure 2-145 Operational Messages (Buffer: Event Log)
Device-specific Functionality
Apart from the general basic functionality, the Web Monitor contains the synchronization function for the
7SJ62/64. The following information can therefore be displayed via the Web Monitor.
The synchronisation function includes the following views:
•
Synchronization range
The synchronisation ranges are displayed in a coordinate system. The X axis shows the frequency and the
Y axis the voltage.
•
Synchronoscope
The synchronoscope is dynamically visualized by three diagrams showing respectively the difference
angle, the difference voltages and the difference frequency.
•
Synchronous systems
Synchronous networks are visualized by a pie chart and the current measured values.
The figure below shows an example of the synchronoscope with selection list, pie/bar chart and the current
measured values.
Functions
2.25 Auxiliary Functions
SIPROTEC 4, 7SJ62/64, Manual 345
C53000-G1140-C207-8, Edition 08.2016
