[objekteigenschaft-verriegelungsbeding-020313-kn, 1, en_US]

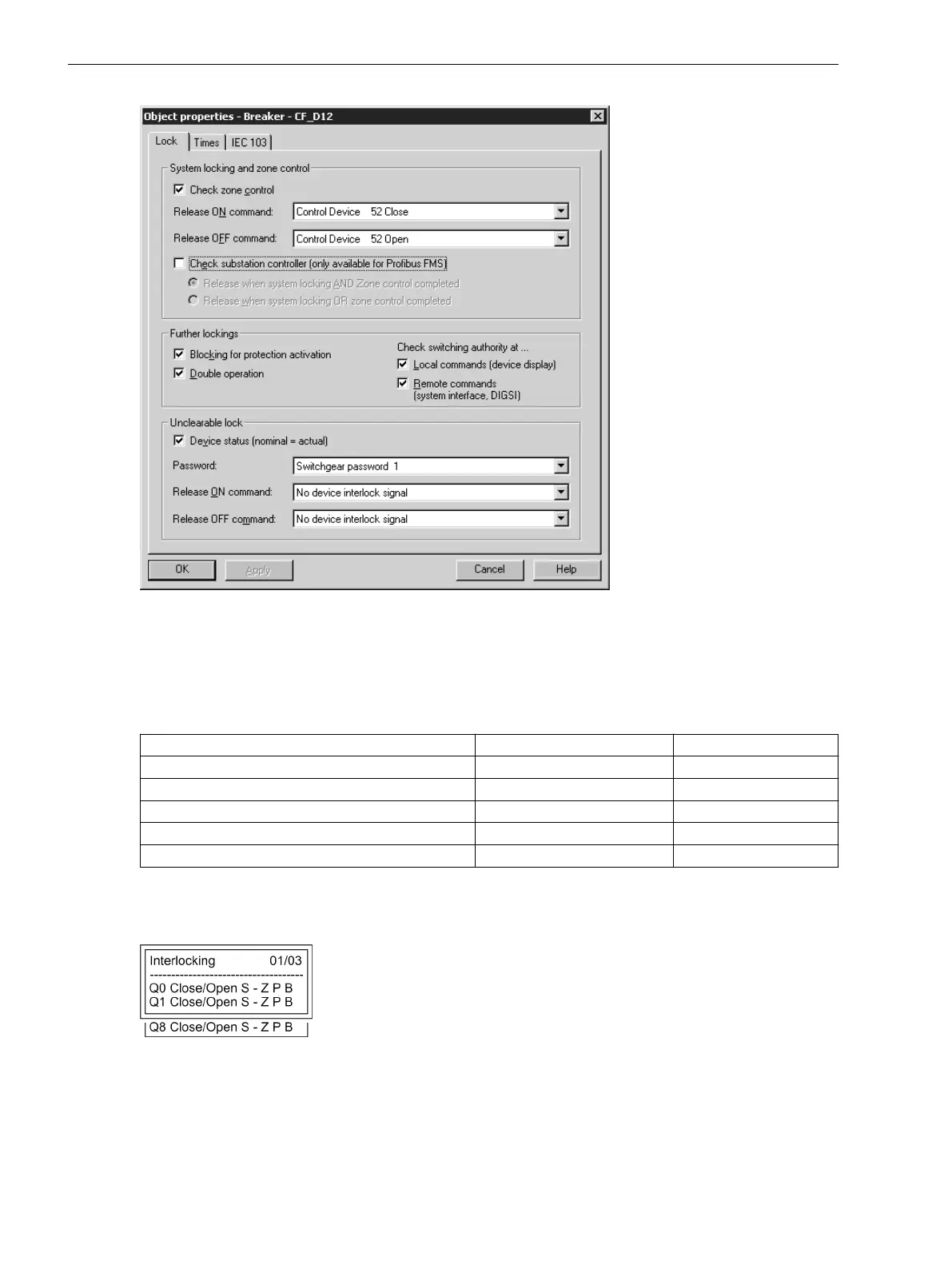

Figure 2-154
DIGSI dialog box for setting the interlocking conditions
On devices with operator panel, the display shows the configured interlocking reasons. They are marked with
letters explained in the following table.
Table 2-30
Command types and corresponding messages
Interlocking Commands Abbrev. Display
Switching Authority L L
System interlocking S A
Zone controlled Z Z
SET = ACTUAL (switch direction check) P P
Protection blocking B B
The following figure shows all interlocking conditions (which usually appear in the display of the device) for
three switchgear items with the relevant abbreviations explained in the previous table. All parameterized
interlocking conditions are indicated.
[verriegelungsbed-020315-wlk, 1, en_US]
Figure 2-155 Example of configured interlocking conditions
Functions
2.27 Breaker Control
360 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
