[steckbruecken-rs485-020313-kn, 1, en_US]

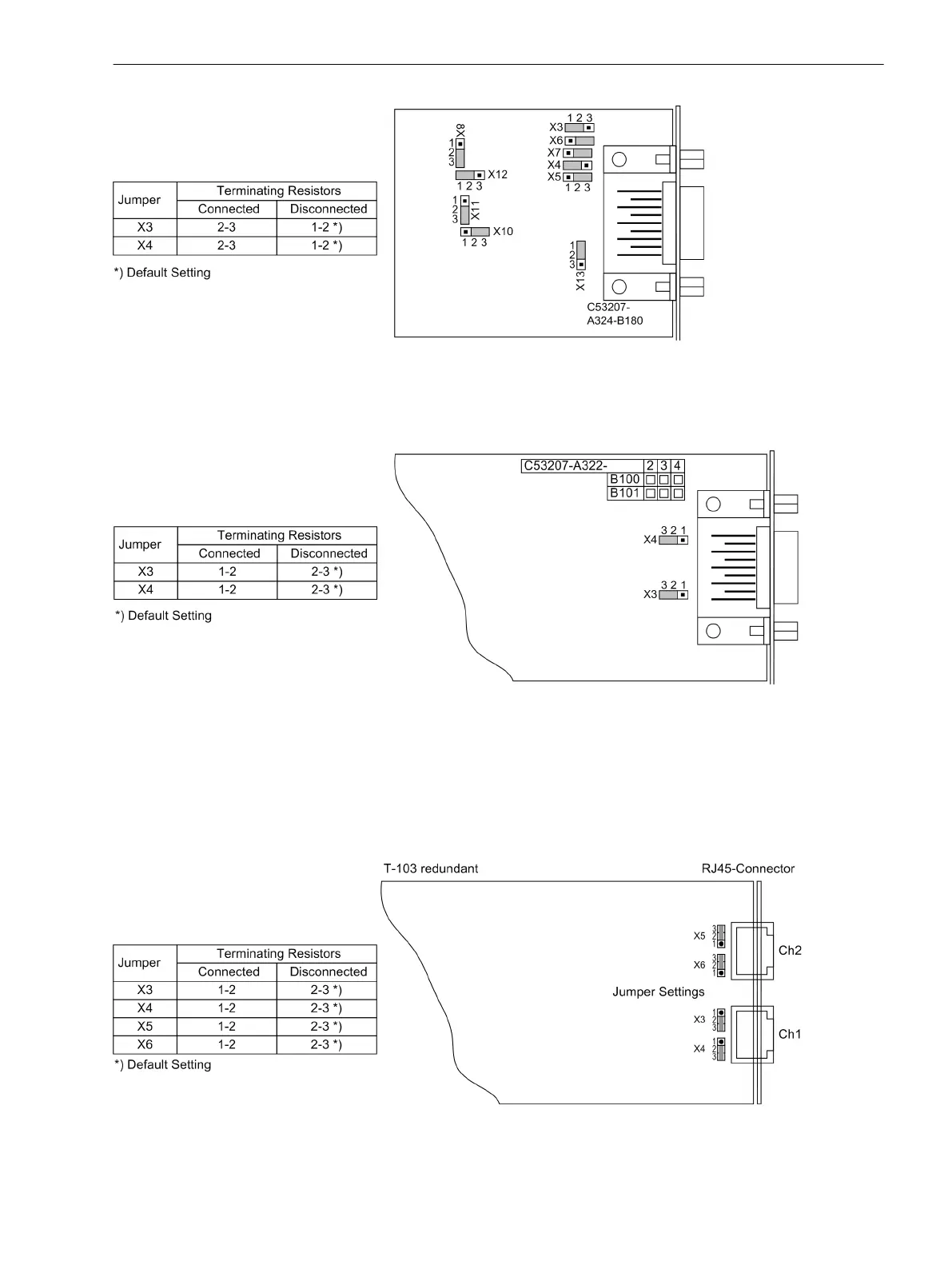

Figure 3-23 Position of terminating resistors and the plug-in jumpers for configuration of the RS485 inter-
face
Profibus (FMS/DP), DNP 3.0/Modbus
[steckbruecken-profibus-020313-kn, 1, en_US]
Figure 3-24 Position of the plug-in jumpers for the configuration of the terminating resistors at the
Profibus (FMS and DP), DNP 3.0 and Modbus interfaces.
IEC 61850 Ethernet (EN 100)
The interface module does not feature any jumpers. Its use does not require any hardware adaptations.
IEC 60870–5–103 redundant
[t-103-redundant-20070322, 1, en_US]
Figure 3-25 Location of the jumpers for configuration of the terminating resistors
Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC 4, 7SJ62/64, Manual 403
C53000-G1140-C207-8, Edition 08.2016
